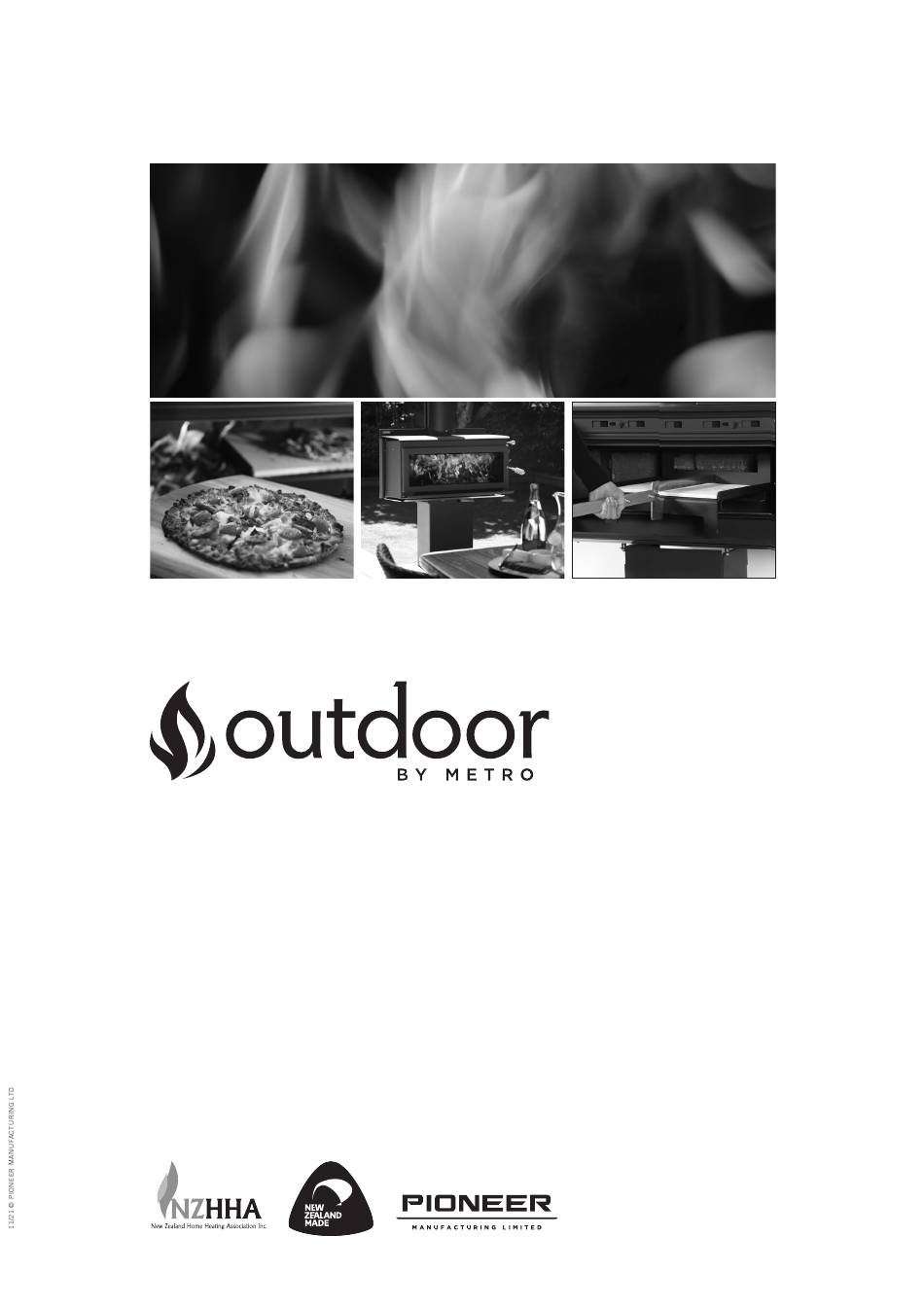

Outdoor Fire Installation & Owner's Operation Manual
Important information ..................................... 2
Assembling your Outdoor 850 ........................ 2
Outdoor 850-B assembly ................................ 3
Outdoor 850-P assembly ................................ 4
Outdoor 850-T assembly ................................ 5
Clearances and specifications ........................ 6
Dimensions .................................................... 7
Outdoor 850 flue systems ............................... 8
Cooking tool kit assembly ............................. 10
Floor protector ............................................. 10
Important operation information ................... 11
Where to install your Outdoor 850 ................ 11
Operating your Outdoor 850 ......................... 12
Cleaning and maintenance .......................... 12
Troubleshooting ........................................... 14
Replacement parts ....................................... 14
Outdoor warranty ......................................... 15
Outdoor accessories ..................................... 16
19 Oropuriri Road // New Plymouth 4312
info@metrofires.co.nz // www.metrofires.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metro DataVac Outdoor 850
Summary of Contents for Metro DataVac Outdoor 850
-
Page 1: Table Of Contents
Assembling your Outdoor 850 ......2 Important operation information ....11 Outdoor 850-B assembly ........ 3 Where to install your Outdoor 850 ....11 Outdoor 850-P assembly ........ 4 Operating your Outdoor 850 ......12 Outdoor 850-T assembly ........ 5 Cleaning and maintenance ...... -
Page 2: Important Information
Pioneer HT Satin Black. Assembling your Outdoor 850 wood fire Your Outdoor 850 fire is packed in a single heavy-duty carton, and tek screwed to a wooden pallet. Having removed the packaging and located this manual, please familiarise yourself with the illustrations on pages 3-5, and proceed as follows. - Page 3 Outdoor 850-B mounting hole positioning To ensure you achieve the minimum 150mm rear clearance to a The Outdoor 850-B is supplied with 2x stainless steel levelling feet. Specific combustible wall, measure 280mm from the wall to the centre line of plinth fastenings are not supplied.
-
Page 4: Outdoor 850-B Assembly
Outdoor 850-P fire assembly To eliminate freight damage, the pedestal has been packaged separately to the firebox. To safely assemble your Outdoor 850-P, please proceed as follows: Open the door 45 degrees and lift the door off the hinge and place somewhere safe. - Page 5 Outdoor 850-T fire assembly To eliminate freight damage, the trolley has been packaged separately to the firebox. To safely assemble your Outdoor 850-T, please proceed as follows: Open the door 45 degrees and lift the door off the hinge and place somewhere safe.
- Page 6 DO NOT install an Outdoor 850 fire with a freestanding flue system under a roof, pergola, verandah or the eaves of your home.
-
Page 7: Outdoor 850-P Assembly
980mm 850mm 1200mm Minimum installation clearances with the Outdoor 850 flue system (mm) 1005 1200 Specifications were correct at the time of printing but may alter and those detailed within should be used only as a guide. Full assembly and installation instructions are detailed in the Outdoor Installation... -
Page 8: Outdoor 850 Flue Systems
AS/NZS2918. Outdoor 850 Flue Systems All Outdoor 850 fires have been tested with an Outdoor 850 flue system. Freestanding flue Roof penetration flue For the Outdoor 850 fire to be installed with minimal clearances as detailed within this Installation Manual, only an Outdoor 850 Flue System can be used. - Page 9 1 x 1200x200mm diameter stainless steel outer casing with flue shield (satin black finish) 1 x flue spigot adaptor * Not required if using the Outdoor 850 extension kit Roof penetration flue components 1 x anti down-draught cowl 1 x combination bracket casing...
- Page 10 Outdoor 850-P fire to the floor. Cooking Tool Kit - Tool assembly instructions Your Outdoor 850 comes complete with a cooking tool kit and a stainless steel hanging bracket for hanging your cooking tools. Packed under the fire’s ashlip are your cooking tool kit aluminium handles and the stainless steel tool ends are packaged inside the firebox.
-
Page 11: Where To Install Your Outdoor 850
For optimum performance fuel must be loaded so the logs lay “front • During the very first fire your Outdoor 850 will give off an odour and to rear” in preference to laying across the width of the firebox. Spaces fumes as the firebox paint cures. -
Page 12: Operating Your Outdoor 850
• Never use the door to force wood into the firebox, as this is likely to During the very first fire your Outdoor 850 will give off an odour and fumes break the glass. as the firebox paint cures. Do not be alarmed. This curing process will last... - Page 13 The door of your Outdoor 850 is easily removed. Hold it in both hands and lift the hinge end of the door up and over the top hinge pin, then lower the •...
-
Page 14: Troubleshooting
Troubleshooting your Outdoor 850 wood fire Downdraft/Turbulence blockage If your Outdoor 850 is installed correctly, your fuel is dry and you operate your fire correctly, you will find it to be a pleasure to use. Metro’s many If you have checked all of the previous factors and you’re still experiencing years of experience within the wood heating industry has shown that excessive smoke exiting the firebox when reloading fuel, it’s possible there... - Page 15 A claim under this warranty should be directed to the retailer who Pioneer Manufacturing Limited (Pioneer) warrants the corten steel firebox supplied the Outdoor 850 fire. If this is not possible write directly to the against defective materials and workmanship which would render it unfit for...
- Page 16 Pioneer/Metro Fires offer a range of heating accessories designed to protectors, cooking implements, baffles, bricks and more. For further details compliment your Outdoor 850 fire. See below for some of the products ask your Metro retailer for a copy of the Outdoor by Metro brochure, or visit within our heating accessory range.
