City Theatrical QolorFLEX Multiverse 5916 Quick Start Manual

475 Barell Ave., Carlstadt, NJ 07072
Voice: 800-230-9497, 201-549-1160
Fax: 201-549-1161

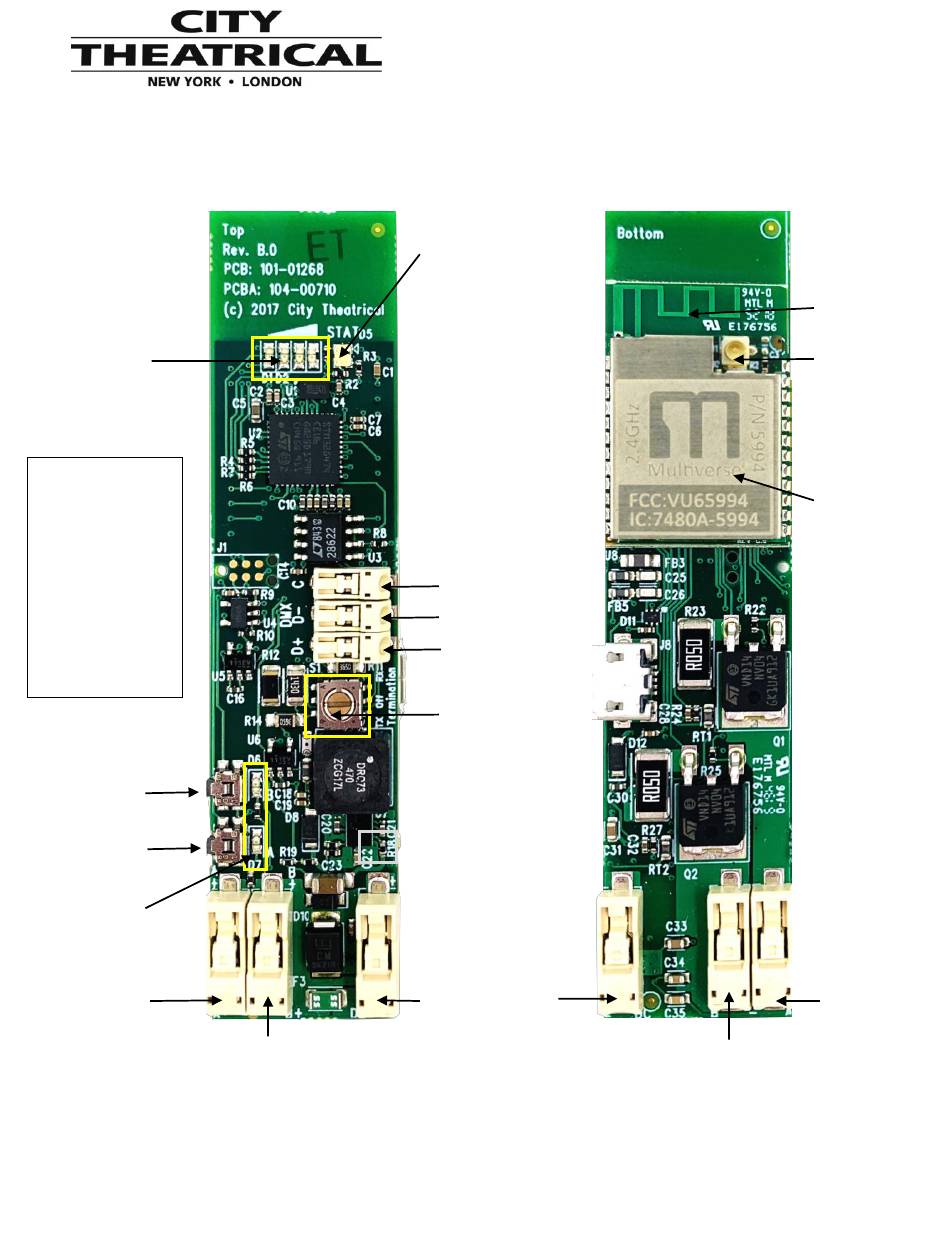

SETUP AND OPERATION
Top:
Signal Quality
Indicator
Lights
Dimensions of bare
circuit board*:
3.2" (81mm) x 0.75"
(19mm) x 0.38"
(10mm) H
Dimensions of
plastic case:
4.125" (108mm) L x
0.875" (22mm) W x
0.562" (14mm) H
*Shown here larger
than actual size.
Channel B
Bump Button
Channel A
Bump Button
Output Indicator
Lights (Upper =
B, Lower = A)
Channel
A+ Output
Introduction
The QolorFLEX 2x2.5A 2.4GHz Multiverse Dimmer requires standard DC power from 5-30VDC.
The input voltage must be the same as the load connected to the output ports requires.
Connect your power supply's DC "+" and "-" to the two DC input terminals on the 5916 labelled
"PWR" "+" and "-".
Channel
B+ Output
QolorFLEX
Multiverse
Quick Start Guide
Bottom:
Status
Light:
Green for wired
Blue for wireless
Solid for DMX present
Blinking when no DMX
present
Blinking Red for fault
codes:
1. Short circuit
2. Output overcurrent
(>4A on any output)
3. Input overcurrent
(>12.5A on any
output)
4. Over temperature on
any output
5. Under voltage
6. Over voltage
DMX Common
DMX –
DMX +
DMX Termination
Switch:
D.C. D.C.
+ Input - Input
1
®
2x2.5A 2.4GHz
®
Dimmer (5916)
Internal
Antenna
External
Antenna
connection
(U.FL)
Multiverse
Radio,
2.4GHz
Channel
A – Output
Channel
B – Output
