GENERAL DESCRIPTION
The TW-CP-R-01/916 call point permits the manual activation of a fire alarm. After its use, the call point can be reset with its proper
key, making it immediately ready for reactivation.
TW-CP-R-01/916 is battery powered and doesn't need any system cabling installation.
Device
block
Operable front
window
Reset key

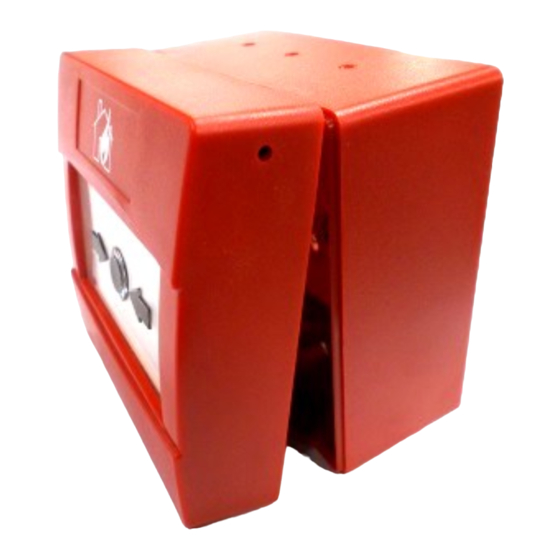

Picture 1
DEPLOYMENT PROCEDURE
1) Select a location for the call point. See LOCATION SELECTION.
2) Unbox the call point from its packaging.
3) Power up the call point. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the call point to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the back box. See FIXING THE BACK BOX.
6) Install the device block onto the back box. See DEVICE BLOCK INSTALLATION / DEINSTALLATION.
7) Test the call point. See TESTING.
8) Remove the "NOT IN USE LABEL" when the call point is in operation.
LOCATION SELECTION
Select a location for the call point that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the father TW-MTI-01/916, TW-MEC-01/916 or TW-ME-01/916 network device.
Mount the call point as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The TW-CP-R-01/916 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless
communication quality.
ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
LED indicator
Latch release
pins
It is advisable to use the TW-SKT-01/916 survey
kit to locate a good wireless installation location.
TW-CP-R-01/916
Wireless (916) Call Point Red
Back box
Fixing holes
INDOOR USE
Battery A
housing
Tamper
switch
Device block
latch
Activation
release
Always remove the "NOT IN USE" label
when the call point comes in operation.
1
Link program
switch
Battery B
housing
www.argussecurity.it
