LMH-100 Installation Instructions
Ritron model LMH-100 is an outdoor, weatherproof enclosure designed to house Ritron models LM-U450 and LM-V150
Loudmouth receivers. The LMH-100 is used when the Loudmouth receiver cannot be installed in a location protected from
the elements.

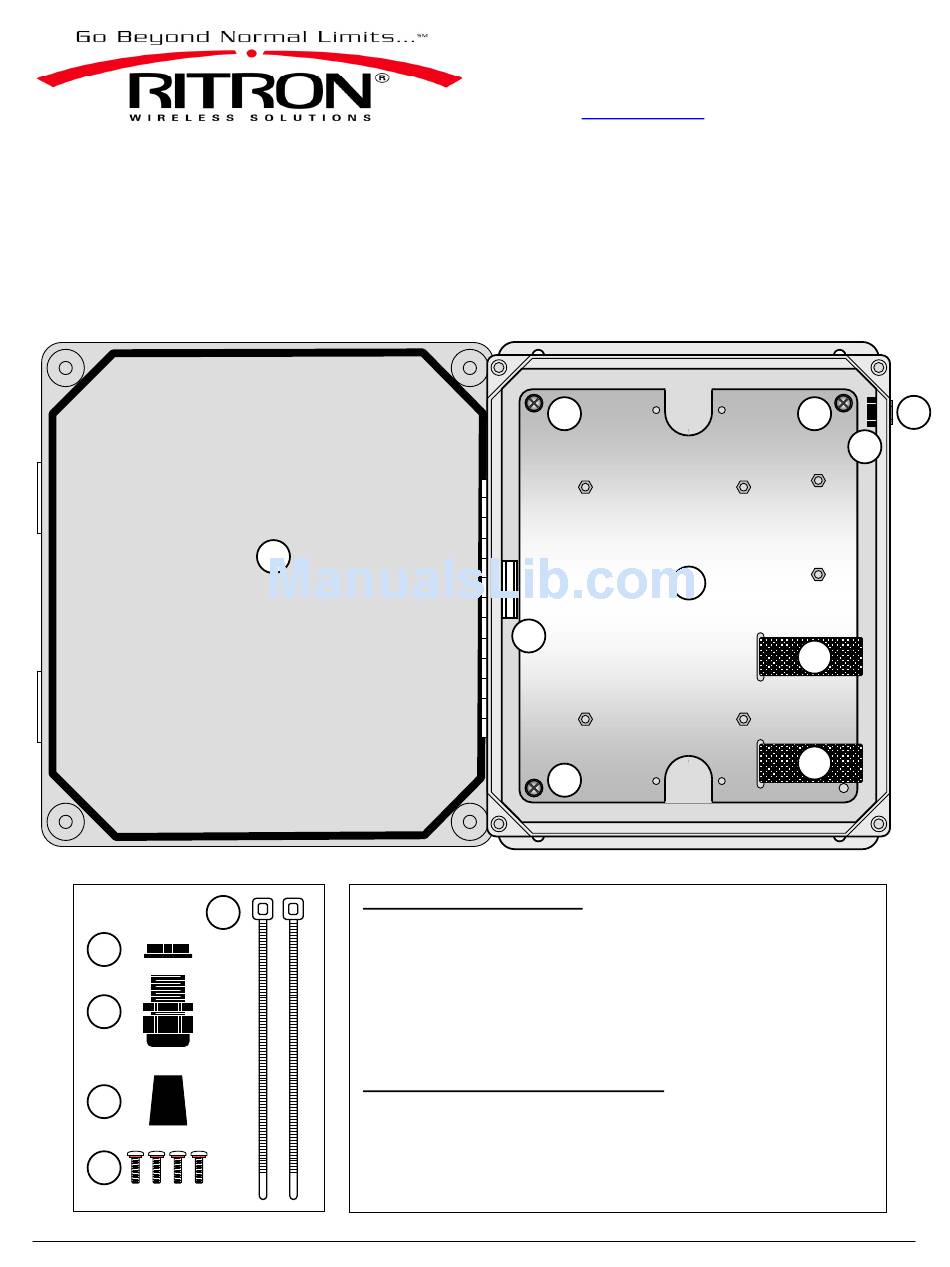

Step 1: Check the contents of the LMH-100
11
10
12
13
Publication No. 14520009
1
Items installed at the factory:
9
1
2
3
4
5
6
7
8
Items included for LMH-100 installation:
9
10
11
12
13
14
LMH-100 Installation Instructions
Ritron, Inc.
505 West Carmel Drive • Carmel, IN 46032
P.O. Box 1998 • Carmel, IN 46082
Ph: 317-846-1201 • Fax: 317-846-4978
Email:
ritron@ritron.com
7,8
6
7,8
13990059
Enclosure, #13990026 modified for vent
25110100
Mounting Plate, Loudmouth Outdoor
25204100
Case Vent, Membrane, Gray
25204200
Case Vent, Mounting Nut, Black
25204300
Strap, Velcro, 1" W, Omniwrap (Qty: 2)
25204800
Clip, Adhesive Mount, Antenna Location
28151901
Screw, 10-32 x .312 LG, PPH, SS (Qty: 3)
28323901
Lockwasher, #10 Internal Tooth, SS (Qty: 3)
02800088
4.0 X .1 Plastic Cable Tie (Qty: 2)
25204500
Strain Relief, LMH-100
25204600
Strain Relief, Nut
25204700
Strain Relief, Plug
28151607
Seal Screw, 6-32 X 3/8 LG, SS, Passivated (Qty: 4)
14520009
Installation Instructions, LMH-100
• web: www.ritron.com
7,8
4
2
5
5
Page 1
3
Advertisement
Table of Contents
Summary of Contents for Ritron LMH-100
- Page 1 LMH-100 Installation Instructions Ritron model LMH-100 is an outdoor, weatherproof enclosure designed to house Ritron models LM-U450 and LM-V150 Loudmouth receivers. The LMH-100 is used when the Loudmouth receiver cannot be installed in a location protected from the elements. Step 1: Check the contents of the LMH-100 Publication No.
- Page 2 Connect the AFB-1545 antenna to the antenna connector on top of the Loudmouth receiver. The antenna is then routed along the left side of the LMH-100 enclosure and secured with the Antenna Location Clip (25204800) that was pre-installed at the factory.
- Page 3 The Loudmouth power and speakers cables can be routed from the LMH-100 enclosure in a variety of ways, depending on the specific installation. Steps 6 through 8 describe the installation of the weatherproof strain relief that was included with the LMH-100.
- Page 4 Use a plastic cable tie (02800088) to secure both cables to the LMH-100 mounting plate (25110100). Thread the cable tie through the hole in the mounting plate and tightly secure both cables.
- Page 5 Install the LMH-100 Enclosure The LMH-100 may be installed to a wide variety of surfaces and materials. For this reason, mounting hardware is not included with the LMH-100. LMH-100 mounting is accomplished using the four 0.32” diameter holes pre-drilled in the enclosure as indicated below.
- Page 6 Step 10: Install Optional Sealed Gelcell Battery The Loudmouth can be powered with an optional 7AH gelcell battery (RTN# 04000064) installed in the LMH-100 enclosure. The gelcell battery is connected to the Loudmouth using the optional LMK-BP cable assembly. Install gelcell battery (04000064) as shown and tightly secure to the LMH-100 mounting plate (25110100) using the two velco straps (25204300) that were pre-installed at the factory.
