WIRELESS INDOOR/OUTDOOR HUMIDITY AND TEMPERATURE MONITOR
INSTRUCTION MANUAL
Model No. TX-2B
Introduction
Congratulations on your purchase of the wireless indoor/outdoor temperature monitor. You will now be able to
know the outdoor/indoor temperature while sitting inside.
Components
1. One base station unit (Receiver)
2. One remote sensor (Transmitter)
3. Four AAA size batteries (included)
* Although the remote sensor is designed to be rain-proof, the remote sensor must be always placed
upwards so that rain won't get inside the sensor through the vent holes on the bottom of the senor
which functions to let the remote sensor detect the environmental temperature more precisely and
quickly.

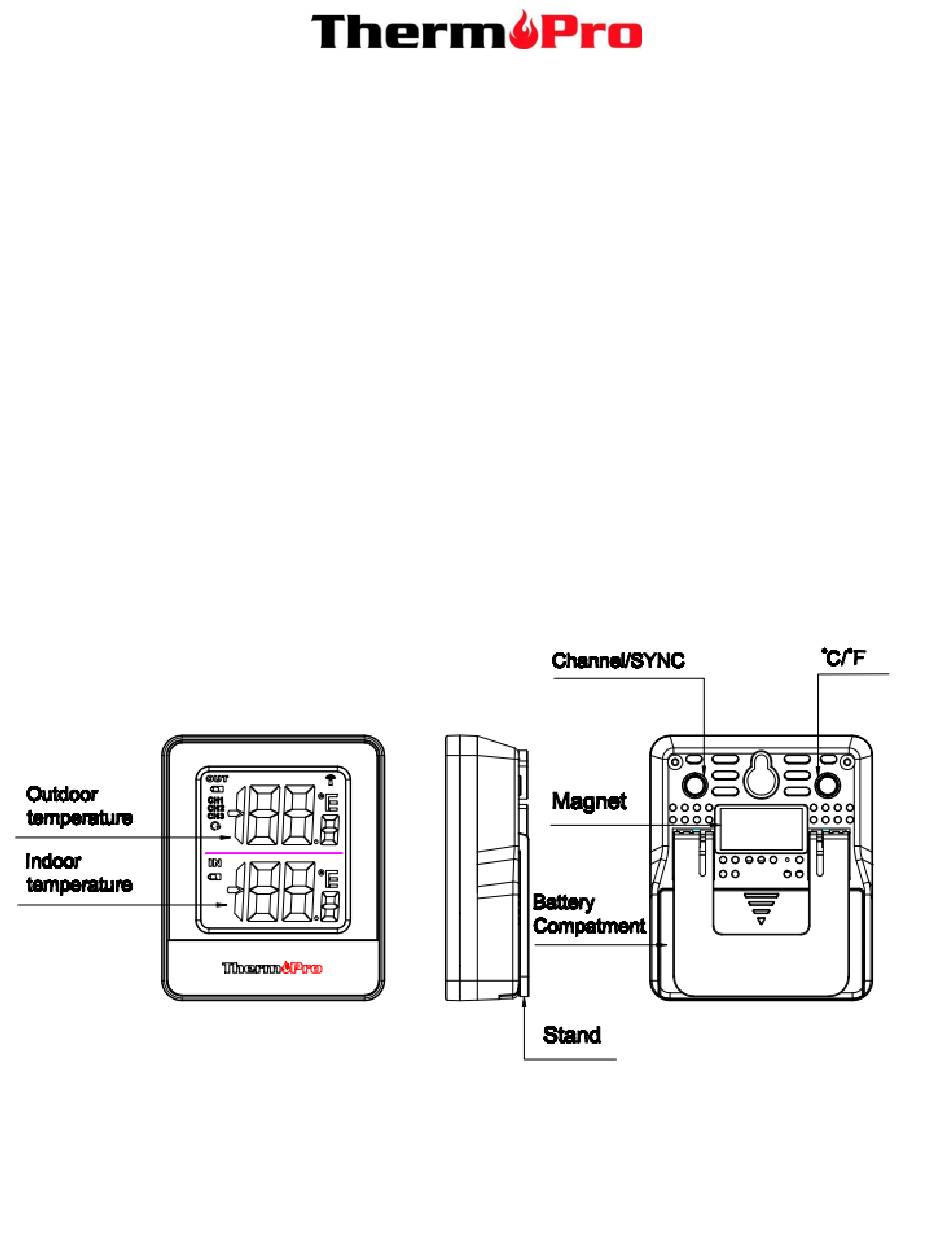

Indoor Base Station (Receiver) Features
1. LCD display: Displays the current outdoor temperature and indoor temperature
2. Battery Compartment: Holds 2 AAA batteries to power the unit
3.
Tabletop and
wall-mounted
design
4.
Indoor Temperature range: -4 ° F ~ 158° F (-20 ° C ~ 70 ° C).
5.
Temperature display unit: ° C and ° F selectable
Advertisement
Table of Contents
Related Manuals for THERM PRO TX-2B
Summary of Contents for THERM PRO TX-2B
- Page 1 WIRELESS INDOOR/OUTDOOR HUMIDITY AND TEMPERATURE MONITOR INSTRUCTION MANUAL Model No. TX-2B Introduction Congratulations on your purchase of the wireless indoor/outdoor temperature monitor. You will now be able to know the outdoor/indoor temperature while sitting inside. Components 1. One base station unit (Receiver) 2.
- Page 2 Temperature Resolution: 0.1 ° C/° F 7. Low battery indication Buttons CHANNEL/SYNC: Press once to display the temperature readings from up to 3 outdoor remote sensors; Press and hold this button to enter the synchronization mode. ° F/° C/: Press to select the temperature display in º C or º F. Outdoor Remote Sensor (Transmitter) Features 1、Battery Compartment: Holds 2 X AAA batteries to power the unit 2、...
- Page 3 2. Slide the channel selector switch inside the battery compartment to your desired channel. For the first remote you may select any channel, for additional remotes select any unused channel; 3. Insert (2) AAA batteries according to the polarity markings. Replace the battery compartment cover . 4.
- Page 4 6. If you have registered more than one sensor, press the CHANNEL/SYNC button on the base station to select the remote channel you want displayed permanently on the base station. Press CHANNEL/SYNC button until you observe a circular arrow on the base station LCD display under the channel number. The unit will then auto-scroll, changing from channel to channel every 5 seconds.
- Page 5 Specifications 1. 433 Mhz transmission frequency 2. Transmission range up to 200 ft. (range maybe shorter based on interference present) 3. Indoor Temperature range: -4 ° F ~ 158° F (-20 ° C ~ 70 ° C) 4. Outdoor Temperature range: -58° F ~ 158° F (-50 ° C ~ 70 ° C) 5.
- Page 6 CUSTOMER SERVICE Telephone: 1-877-515-7797(USA & Canada only) Email: service@buythermopro.com Hours: Weekdays 9:00 AM- 6:00 PM EST...
