Summary of Contents for SLI SECO-LARM ENFORCER VA-1102B-WQ

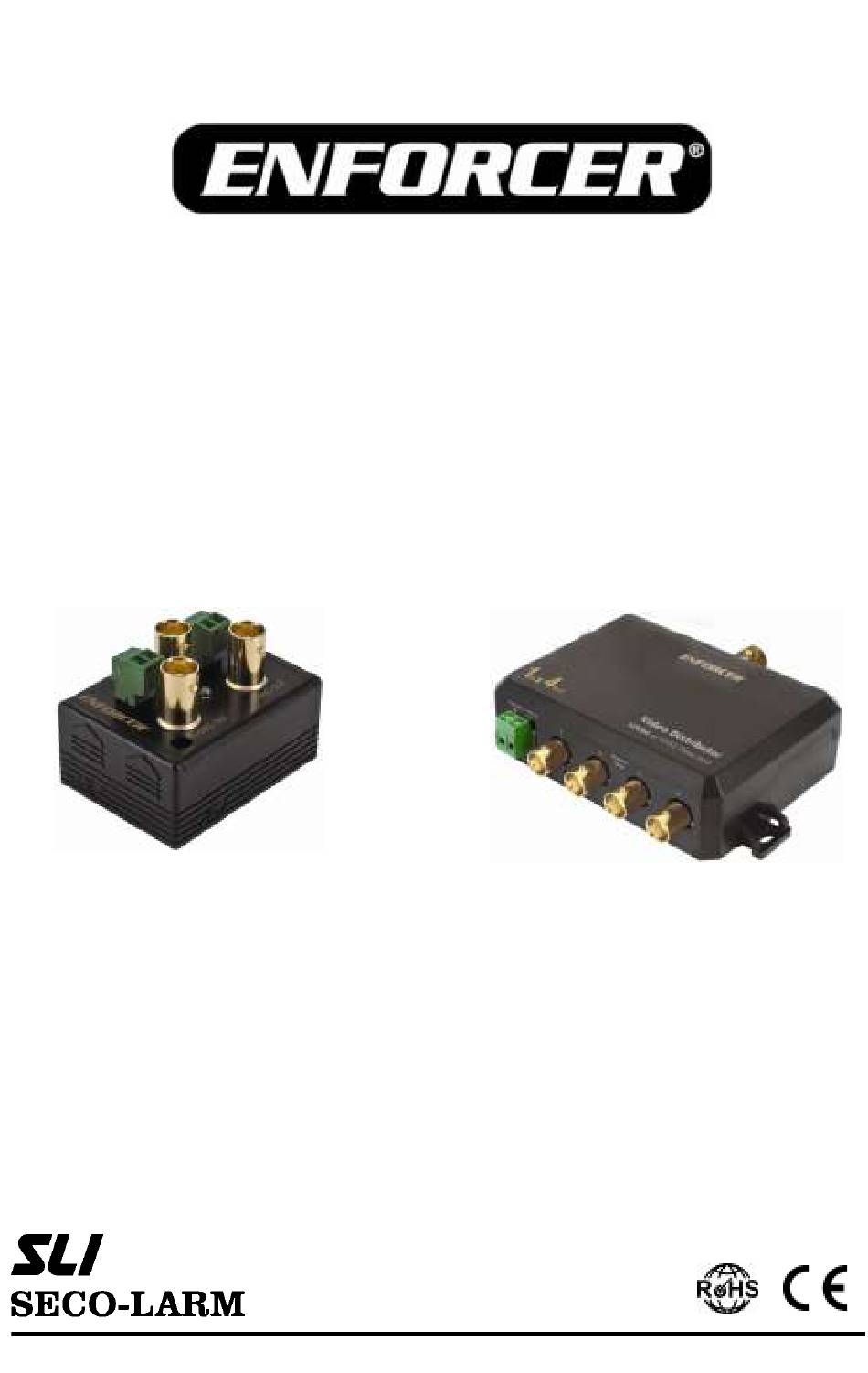

- Page 1 Video Distributor MANUAL VA-1102B-WQ VA-1104B-WQ VA-1102B-WAQ* VA-1104B-WAQ* 1 Video Input 1 Video Input 2 Video Outputs 4 Video Outputs VA-1102B-WAQ & VA-1104B-WAQ do not include a Power Adapter...
- Page 2 SECO-LARM VIDEO DISTRIBUTOR Table of Contents: Installation…………………………. 2 Introduction…………………………. 2 Overview…………………………… 3 Specifications………………………. 2 Sample application ……………….. 4 Parts List…………………………….. 2 Troubleshooting……………………. 4 Features……………………………… 2 Introduction: The SECO-LARM Video Distributors are the ideal way to distribute a single video signal to multiple locations.
- Page 3 SECO-LARM VIDEO DISTRIBUTOR Overview: 1-in-4-out Video Distributor 1-in-2-out Video Distributor Video input 12VDC Power input Power LED Video input Power LED Power Power 3” input output (86mm) " (46mm) 24VAC Video outputs Power Input Video Outputs " " (73mm) (138mm) Power input "...
- Page 4 SECO-LARM VIDEO DISTRIBUTOR Troubleshooting: Video Distributor does • Make sure the power, input and output cables are not function correctly connected firmly to the distributor. • Make sure the video input device is turned on. • Make sure the video output device is turned on. •...
