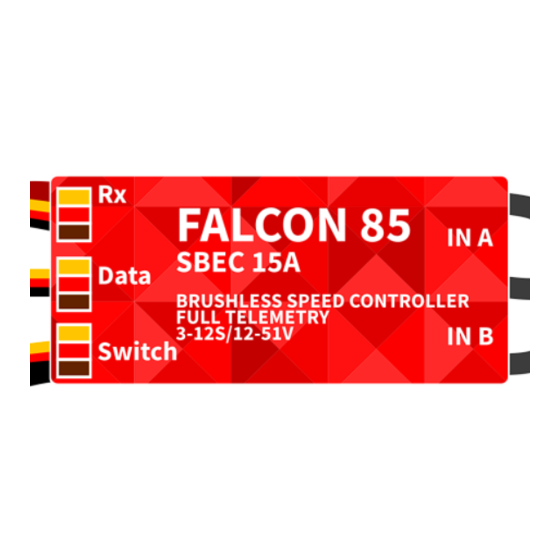

The FALCON product line represents advanced speed controllers for use exclusively in RC airplane models. With
integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low
weight and precise motor control. The integrated high-power BEC, offering 15Amps of continuous current, is suitable even
for the most demanding applications. The full power of the BEC is available at any battery voltage within the controller
specification (6-51V).
F
EATURES
-
Small dimensions combined with high power motor control.
-
High power BEC offers 15A continuous current (30A max). BEC overcurrent and overtemperature protection
included.
-
BEC voltage setting in 0.1V steps.
-
Over- and undervoltage protection, overtemperature protection, motor-stall protection.
-
Configurable current limiter.
-
Fast and precise heli/governor mode with many configuration possibilities.
-
Safety shutdown when the throttle impulse is lost.
-
Configurable acceleration, timing, electromagnetic brake, motor reversing etc.
-
Low acoustic noise due to high frequency switching.
-
Automatic telemetry detection: Duplex EX, Hott, MSB, PowerBox P2Bus, S.Bus2. Alternative firmware with
Spektrum SRXL2 telemetry support.
-
Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
-
Telemetry min/max values are logged.
-
Configuration through the transmitter, MAV Manager PC software or external terminal (JETIBOX/SMART-BOX).
-
Firmware updates via USB interface.
-
Languages: CZ/DE/EN/FR/IT.
Dimensions [mm]
Weight incl. cables
Continuous current
Peak current
Supply voltage
LiPo cells
LiFe cells
Cables battery/motor
Anti-spark circuit
Recommended connectors
Temperature range
PWM frequency
Operating current
Standby current
Propeller positioning
Telemetry
Status LED
Active freewheeling
BEC continuous output
current
BEC peak current
BEC voltage setting
Optical isolation
Maximum RPM
External switch voltage
External switch max.
current
*) Specified values are valid in case sufficient continuous airflow is provided.
FALCON E
LECTRONIC
U
M
SER
ANUAL
FALCON 55
FALCON 65
SBEC
SBEC
75x29.5x10
75x29.5x12
63g
68g
50A
60A
*
80A/2s
100A/2s
*
6 – 51V
6 – 51V
2 – 12
2 – 12
3 – 14
3 – 14
2.5mm
/
2.5mm
2
2.5mm
2.5mm
2
XT60 (60A)
XT60 (60A)
No
Duplex EX, Multiplex MSB, Futaba S.Bus2, Graupner Hott, PowerBox P
12A
*
25A/2s
*
S
C
PEED
ONTROLLER
F
V
IRMWARE
ERSION
FALCON 85
FALCON 115
SBEC
80x30x13.5
81g
80A
*
*
120A/2s
*
*
6 – 51V
2 – 12
3 – 14
/
4mm
/
2
2
2.5mm
2
2
No
G4 (75A),
G5.5 (150A),
XT90 (90A)
XT90 (90A)
-10÷110°C
20kHz
60mA
4mA
With additional Hall-sensor
Spektrum SRXL2™
Yes
Yes
5.5 – 8.4V (0.1V steps)
No
> 300 000 eRPM (2-pole motor)
Approx. 10V
30mA
1
Support@EspritTech.com
https://www.espritTech.com
2.01
FALCON 145
SBEC
SBEC
88x32x14
74x53x31
90g
190g
110A
140A
*
170A/2s
200A/2s
*
6 – 51V
10 – 51V
2 – 12
4 – 12
3 – 14
4 – 14
4mm
/
6mm
/
2
2
4mm
4mm
2
2
G5.5 (150A)
15A
*
30A/2s
*
(1) 321.729.4287
FALCON 155
SBEC
88x32x14
90g
150A
*
200A/2s
*
6-27V
2 – 6
3 – 7
6mm
/
2
4mm
2
G5.5 (150A)
Bus,
2
Advertisement
Related Manuals for Esprit Tech FALCON 55 SBEC
Summary of Contents for Esprit Tech FALCON 55 SBEC
- Page 1 Esprit Tech (1) 321.729.4287 P.O. Box 360815 Support@EspritTech.com Melbourne, FL https://www.espritTech.com 32936, USA FALCON E LECTRONIC PEED ONTROLLER 2.01 ANUAL IRMWARE ERSION The FALCON product line represents advanced speed controllers for use exclusively in RC airplane models. With integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low weight and precise motor control.
- Page 2 NSTALLATION Fasten the controller in your model using Velcro or double-sided adhesive tape. Connect the motor and receiver according to the schematic below. You may connect the motor cables in arbitrary order, as changing direction is done by exchanging any of the two cables (alternatively also by the “Direction” parameter in the configuration). Turn on the transmitter.
- Page 3 In case you need exact points on your transmitter stick, where the motor starts and where full throttle is, you can configure manual endpoints as well. Note: The controller waits for throttle-low position after startup and also every time the motor is stopped due to any error condition.
- Page 4 Example: Motor brake with the following parameters: Start power = 50%, End power = 100%, Transition = 0.5s, Wait time = 0.3s. VOLTAGE AND SETTING In the Common Setting menu, you are able to modify the BEC voltage very precisely in steps of 0.1V. The controller contains a very powerful BEC which is able to deliver up to 15Amp continuous current.
- Page 5 XTERNAL SWITCH The FALCON ESC allows you to install an external switch if needed. By default the switch is not present, so that the speed controller/BEC turns immediately after connecting the flight battery. You can specify the type of switching element in the Common Setting –...
- Page 6 Note: Use a high quality CA or Epoxy glue to fix the magnet in the rotating part. You can also drill a small hollow in the spinner and fix the magnet in it. Warning: Do not use higher PWM than necessary otherwise the motor may overheat. Generally use as low PWM as possible so that the motor holds its position reliably.
- Page 7 OVERNOR MODE The speed controllers contain a fast and precise governor function. You are able to configure the governor mode in many aspects according to your preferences. Before enabling the governor mode, please make sure the blades are removed. In the Common Setting menu, set the Controller Mode to “Heli/Governor”...
- Page 8 Note: Please make sure the gear ratio and number of motor poles are correctly set in the Motor Setting menu. Also, please verify that the brake is disabled and check the state of the propeller positioning function. Please note that dynamic changes of the motor revolutions in flight are limited by the “Acceleration” parameter configured in the Motor Setting menu.
- Page 9 OTOR DIRECTION REVERSING The motor reverse feature is available for RC systems with bidirectional bus support (EX Bus, P Bus, SRXL2, S.Bus2). To control the motor direction you need to define an additional channel transferred through the bus system. Both cables (red and black) of the FALCON speed controller must be properly linked the receiver. First, you need to create an additional channel on you transmitter to control the motor direction.
- Page 10 ELEMETRY AND ETTINGS Plug the red data cable into the sensor slot of the JETIBOX / SMART-BOX (or corresponding receiver). Power it up with a battery (4.5 - 8.4V). Now you can safely configure the controller using the arrows on the terminal. If you use an external (optional) switch connected to the ESC, please make sure that the controller is turned on.
- Page 11 JETIBOX Menu Structure Available EX and P Bus telemetry 1. Battery voltage [V] 2. Motor current [A] 3. Capacity [mAh] 4. Speed [RPM] 5. PWM [%] 6. Power [W] 7. Running time [s] 8. Energy [Wmin] – useful feature for competitions where total energy is limited (F5B, F5D).
- Page 12 Futaba and Multiplex connection Futaba and Multiplex systems do not offer wireless device configuration. The telemetry transmission is possible with the following fixed sensor slots: Futaba S.Bus2 slot Note Multiplex MSB slot Choose RPM sensor on slot 2. Current Choose SBS01C current sensor on slot 3.
- Page 13 Note: The FALCON version 2.01 and later is compatible with Spektrum single-cable operation (Smart Throttle). To enable this function, just plug the red telemetry cable into receiver channel No.1 and keep the other (black) cable unplugged. You will be able to control throttle as well as receive telemetry. This approach is compatible with AR10400T receiver family as well.
- Page 14 IRMWARE PDATE Firmware updates for the FALCON ESC are transferred from a PC via the USB interface. The required programs and files are available at www.espritmodel.com. Install the MAV Manager software and the USB drivers on your computer. Check the system requirements. 1) Make sure that the battery flight pack is disconnected and the FALCON ESC is unpowered.
- Page 15 Motor settings. Every time you make any change in Real-time telemetry with min/max values. The MAV the configuration, the new value is immediately Manager is also able to create a log file from the real- time telemetry data, which can be viewed, analyzed, transferred to the controller and saved to memory.
