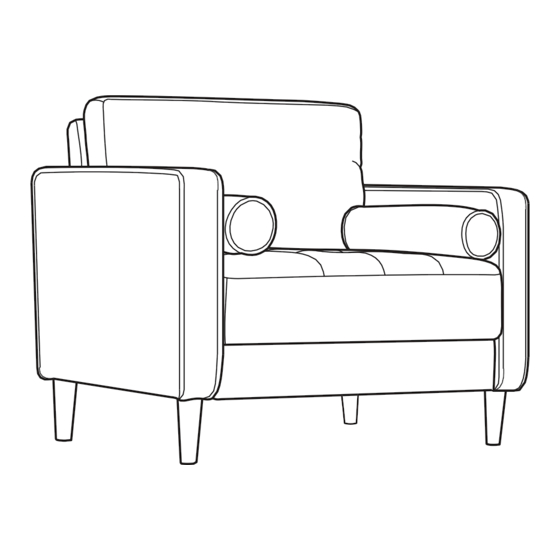

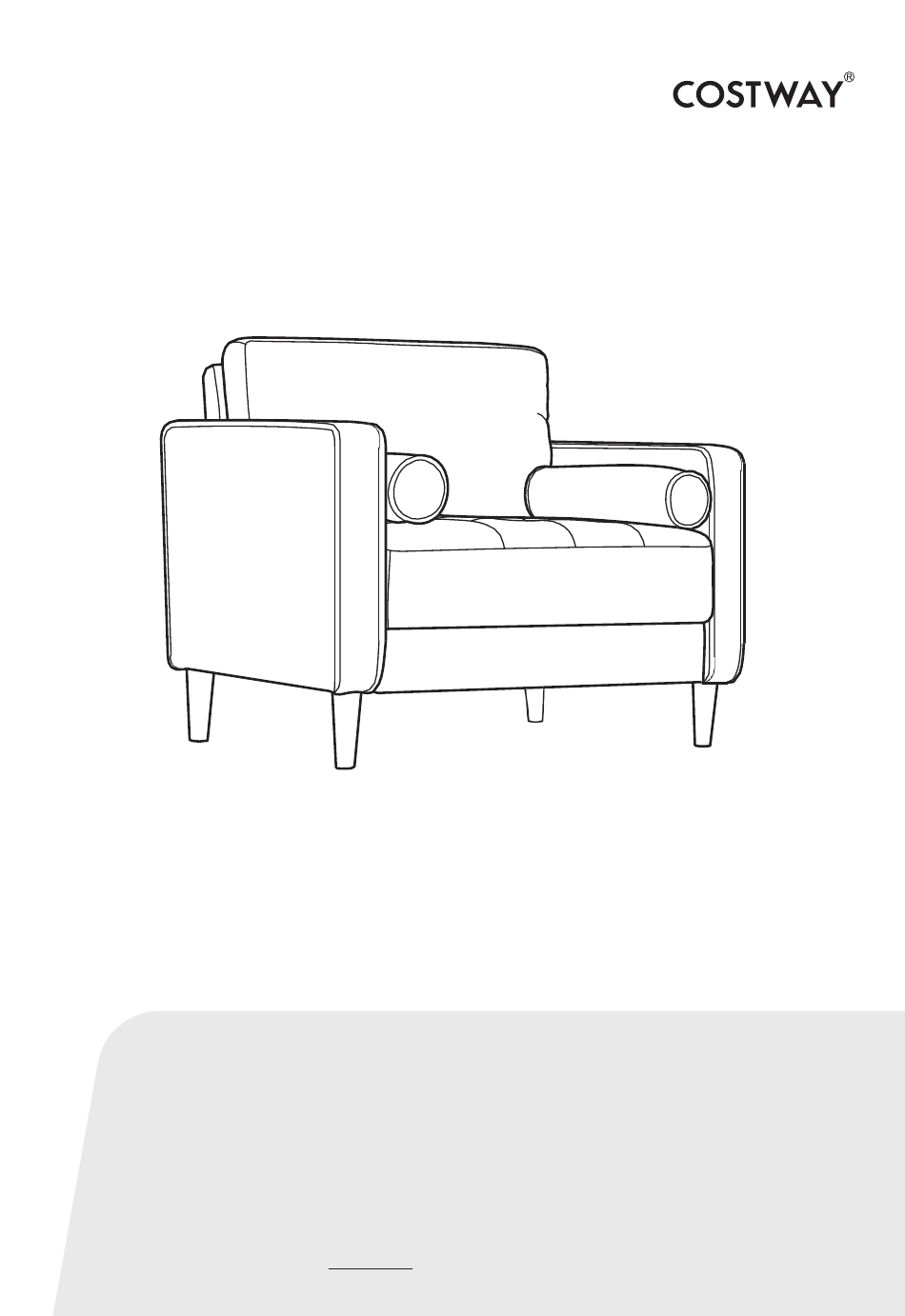

- Page 1 USER’S MANUAL Single Sofa Chair HV10063 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Read each step carefully before starting. It is very important to ensure each step followed in correct order, otherwise assembly difficulties may occur. Most of board parts are labeled or stamped on the raw edges. Have a check to make sure all parts are included. Work in a spacious area, preferably on a carpet close to where the unit will be used.
- Page 3 WARNING ●This product has been designed for seating one (1) average adult. To prevent injury and damage to this unit, PROHIBIT jumping on it. ●This product is designed for home use and not intended for commercial use. ●Children under the age of 5, small infants and babies should not sleep alone on this product for safety reasons.
- Page 4 HARDWARE Spanner Threaded Rod 14mm M8 x 70mm Washer Spring Washer M8 x 22mm HARDWARE C x 6 B x 6 Storage space under D x 6 E x 6 the seat body Carefully unpack parts/hardware from box and storage of seat body, place on a clean flat surface.
- Page 5 × 6 Screw in three threaded rods into pre-drilled holes of armrest by hand until about half of the thread is exposed. Repeat steps for other armrest. × 6 × 6 × 6 Locate pre-drilled holes on the side of sofa body and match the orientation with the correct armrest.
- Page 6 Align all four legs onto pre-drilled holes and secure by hand. Please avoid overtightening. Insert backrest metal plates to both arms as shown below. Ensuring it is correctly in place.
- Page 7 Secure both back cushions by locating the zipper end. Fasten both sides and continue all the way to the end. Flip the pillow into position when finished. Place accent pillows as desired . INSTALLATION COMPLETE :...
- Page 8 Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. Never use water to clean your furniture as it may cause damage to the finish.
- Page 9 Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina Contact Us ! Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com...
