Super Systems AC50 Quick Start Manual

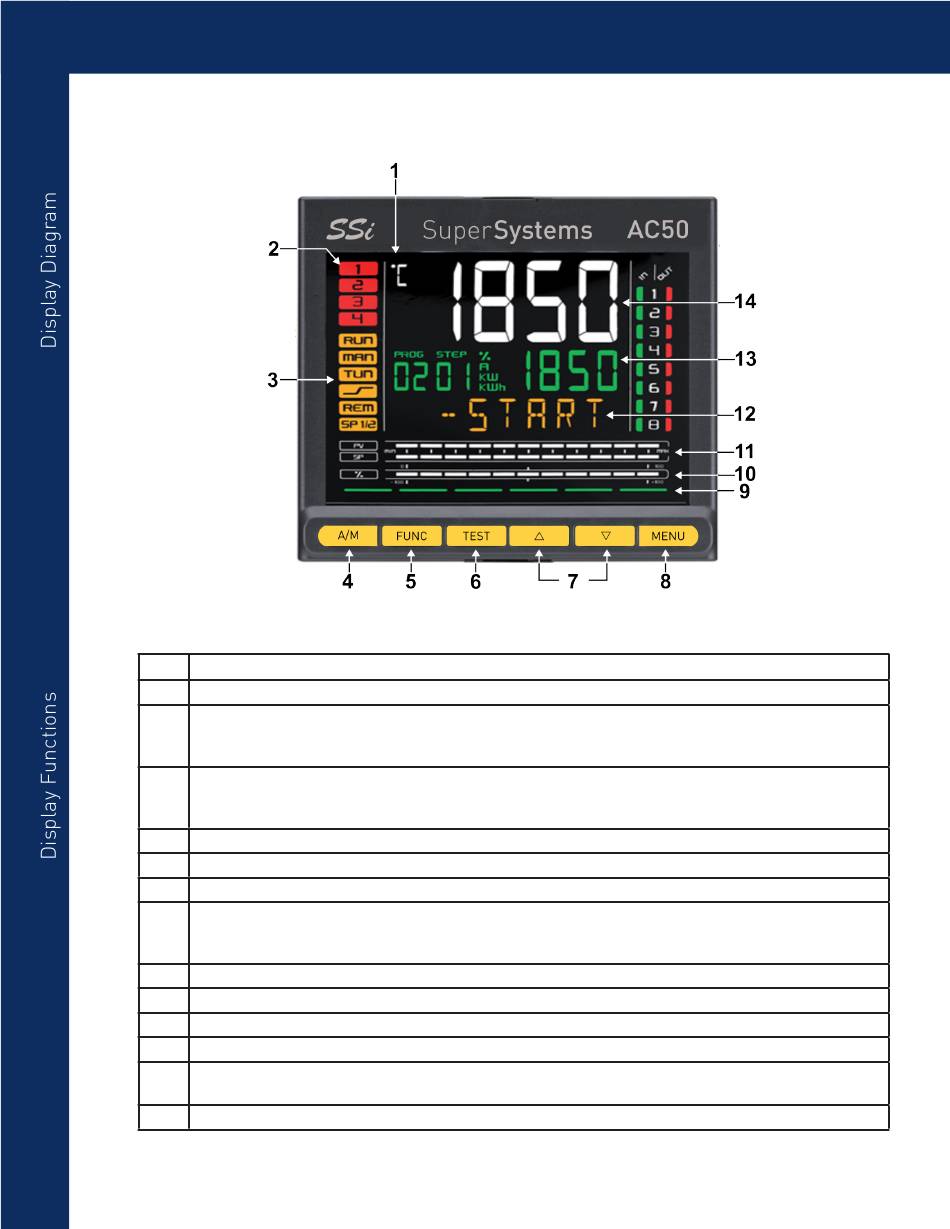

AC50 Quick Start Guide
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
unit of measurement
state of outputs OUT1 OUT2 OUT3 OUT4
controller function states:
* man = manual/automatic (off=automatic control, on = manual control);
* rem = remote setpoint enabled
selects auto or manual control from the home screen.
pressing the key returns you to the previous menu item or to the higher menu level, as appropriate.
hold for 2 seconds to return to the main menu
navigate through user menu
probe test and burnoff key
up / down key
hold for more than 2 seconds to enter the configuration menus.
navigates among controller menus and parameters, confirms parameter value,
and selects next parameter
key pressed signals
displays percentage of power output
display of percentage of process variable and of setpoint
parameters, diagnostics and alarm messages.
sv display: parameter values. configurable with parameter ds.sp
(default = setpoint).
pv display = process variable
