Summary of Contents for HORCHER UNILIFT PRO

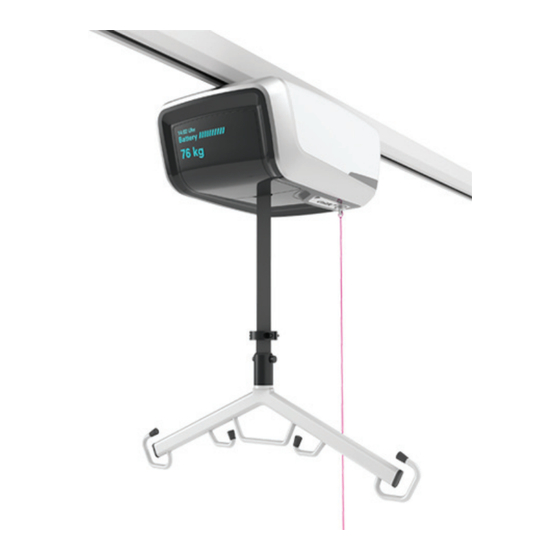

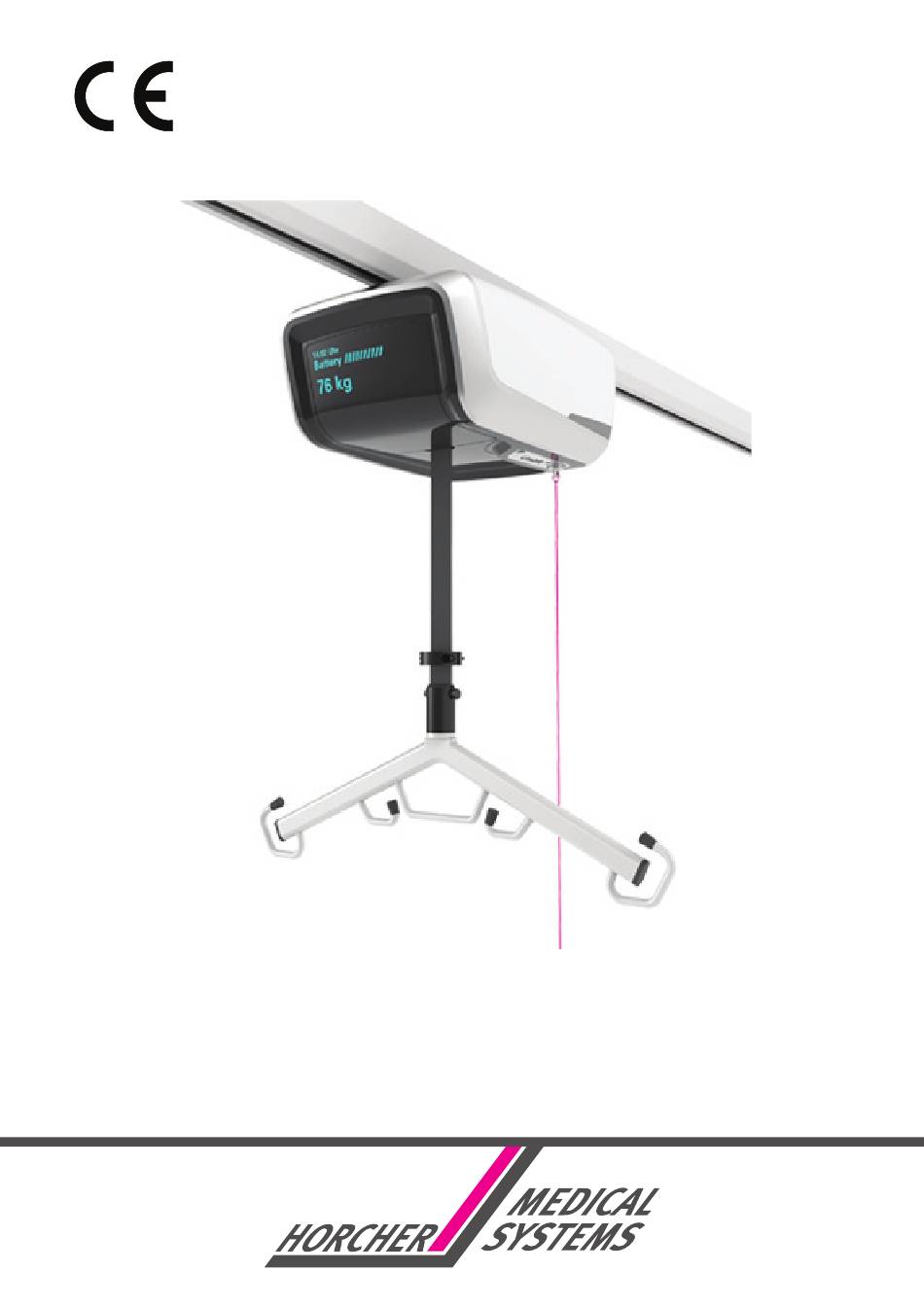

- Page 1 Operating Instructions Ceiling Lift UNILIFT PRO...
- Page 2 Table of contents Chapter Page General information Safety instructions Warranty information Product description General operating instructions Maintenance information Sling systems Applying the sling Digital scale Accessories Technical data Malfunctions Equipment data Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 3 General information Dear Customer! We would like to thank you for your confidence in the Horcher GmbH LIFT System and congratulate you on buying the UNILIFT PRO. The UNILIFT PRO helps you to achieve more mobility and freedom in your daily living environments, especially in bathroom, senior citizens homes and hospitals.
- Page 4 We do our utmost to provide the highest standard of quality, reliability and customer service in all areas. Purpose The UNILIFT PRO ceiling lift can be utilized for lifting and moving patients in and out of bed, bathtub, wheel chair and many other situations: Transfer in/out of a wheelchair...
- Page 5 GmbH / Barrier Free Lifts Inc. are allowed to install and repair the lift. A sight check is absolutely necessary and should be done before you use the “UNILIFT PRO” or any other kind of the system. If you notice any kind of defect do not use the lift.
- Page 6 One year warranty for all institutional settings. Please send the filled out warranty card back to the Horcher GmbH / Barrier Free Lifts Inc. This will speed up any questions you may have or problems that might arise with your lift during the warranty period.
- Page 7 Warning: If the emergency lowering device has been used, the ceiling lift must be subjected to a service inspection by qualified personnel before further use. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 8 Hand control The functions of the "UNILIFT PRO" ceiling lift can be carried out either with a wireless PDA or with an optional wired hand control. The number of functions depends on the selected ceiling lift, the installed rail system and the additional equipment of the rail system.
- Page 9 The PRO lift series now also allows patient lifts to be fully controlled with a PDA. PDA control elements Scanner PDA On/Off Button UNILIFT PRO control elements Up / Down Battery status Left / Right (optional) Patient positioner (optional)
- Page 10 An active connection with the ceiling lift is signaled by a blue ambient light. Now the control functions appear on the screen and you are ready to use the UNILIFT PRO. All built-in functions are automatically displayed in the app.
- Page 11 Wired hand control (optional) A variety of electrical hand controls are available for all battery powered UNILIFT PRO systems and are required by some multi function systems. All remote controls are ergonomically designed, water resistant and safe to use in wet areas, do not emerge in water.
- Page 12 Use a clean, dry cloth or a cloth moistened with clean water to clean the lift. Do not use a high pressure cleaner! Please regard that the UNILIFT PRO should be serviced once in every 12 month period through an authorized technician that has been certified by Horcher GmbH or Barrier Free Lifts to ensure the highest safety standards.
- Page 13 The sling system Lifting slings These original Horcher – Slings can be utilized with the UNILIFT PRO: Models with spreader bar (loops suspension): USS, USSK, USB, UTK, UPG Models with motorized patient positioner or 3 point bar (clips suspension): HCG, HCGA, HCTG, HTG Recommended guidelines Attention: Body weight information is not relevant for patients with amputations.
- Page 14 - the back and leg strap. Can be easily applied alone, especially suitable for wheelchair users with a certain inherent stability. Also available with fleece cover for added comfort. Weight capacity 600 lbs. Machine washable up to 95°C. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 15 4-point patient positioner with clips suspension. Weight capacity 600 lbs. Machine washable up to 95°C. Available in 6 sizes, Nylon material Note: More information about e.g. the possibility of custom-made slings is available on request. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 16 The wide waist belt for additional stability and security in the upper body area. Designed to assist gait training and rehabilitation in patients seeking to increase weight bearing capabilities. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 17 The leg straps are hooked on the inside of the swivel bar. Before utilizing the lift it is very important that you check whether all straps are hooked to the swivel bar or patient positioner and that they have the same lengths. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 18 Reduce vibrations of the patient to determine an exact weight. Read the weight on the PDA or display of the lift and check that you have the correct setting either for kg or lbs. The scale is always active and maintenance-free. Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 19 Accessories 4-way carousel Track gate Track switch Track with power strips / reinforced track Motorized transversal track roller Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 20 Technical data Technical data UNILIFT PRO Lift Power supply 38,4 V DC Max. power 120 W Fuse 10 A/T Degree of protection IP54 Power supply LiFePO4 Battery 1 x 38,4 V / 3,0 Ah Battery charger 120 V / 36 V / 1,2 A...
- Page 21 • Check whether the emergency cord is pulled out. • Check whether the batteries are sufficiently charged. • If the UNILIFT PRO comes with a PDA barcode scanner, check the readability of the barcode. • If the UNILIFT PRO comes with a wired hand control, check whether the plug of the hand control is connected correctly.
- Page 22 Equipment data Equipment data Device Data Inventory-No. ____________________ Equipment ____________________ Type of Equipment ____________________ Factory-No. ____________________ Manufacturer/ Importer ____________________ Supplier ____________________ Year of purchase ____________________ Location ____________________ Maintenance Service ____________________ Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 23 Equipment data ___________________ Inventory-No. Functional Test ____________________ through: ____________________ Instruction Responsible ____________________ Name of the Manufacturer / person Date Signature Supplier responsible for Instructions Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 24 Equipment data ___________________ Inventory-No. Personnel Name of the person Date Instructor Signature being instructed Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 25 Equipment data ________________ Inventory-No. Technical Safety Control Performed through Date Result Observation Person / Firm Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 26 Equipment data Inventory-No. __________________ Maintenance Service (Maintenance / Inspection / Repair) Performed through Date Short description of Maintenance Person / Firm Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 27 Equipment data Inventory-No. __________________ Functional Disturbances or operating mistakes Date Description of problems Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 28 Equipment data Inventory-No. __________________ Reports of incidents to the authorities and manufacturers Date of the report Description of the reported Incident Unilift UDL – Stand: 10/2018 www.horcher.com...
- Page 29 Operating Manual to be found: Name: Location: Telephone: Emergency No.: Accidents with personal injury: Name: Mr. Stefan Horcher Safety officer for medical products Horcher GmbH Philipp-Reis-Strasse 3 D- 61130 Nidderau Telephone: +49 (0) 61 87 / 9204 - 0 Fax: +49 (0) 61 87 / 9204 - 15 Unilift UDL –...
- Page 30 Equipment data Inventory List Type: Serial No: Year of purchase: Horcher GmbH Manufacturer: Phillip-Reis-Straße 3 61130 Nidderau Germany Factory Id No: Site of location: Prescribed period for the technical safety controls: (see label on the product) Unilift UDL – Stand: 10/2018...
