Momentum SW-650, SW-651, SW-800, SW-801 - Digiwalker Pedometer Manual

FEATURES

FEATURES

Please read instructions carefully to understand how to operate your Momentum instrument. Your model may not have all of the features described in this booklet.

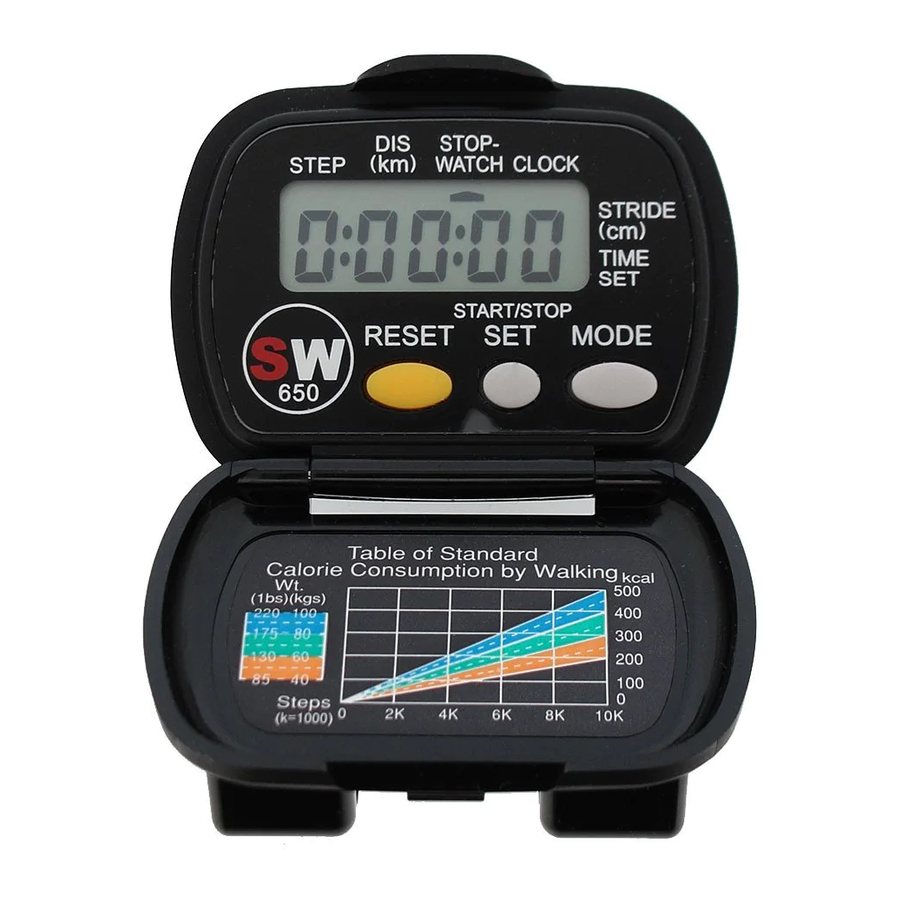

PARTS OF THE DEVICE

PARTS OF THE DEVICE

  1. Liquid Crystal Display
  2. Case
  1. Case Back with Clip
  1. Cursor
  2. Reset Button
  3. Mode Button
  4. Set Button

THANK YOU for purchasing this Momentum pedometer. This pedometer has been carefully designed to give you years of reliable service. We value your opinion: please let us know if you have any comments or suggestions as to how we might improve our products.

OPENING THE COVER

Holding the pedometer upright, grasp the top of the clip with one hand. Use the other hand to push the lip (projecting portion) and swing the pedometer open.
OPENING THE COVER

HOW TO WEAR YOUR DEVICE

Using the clip, attach the pedometer securely to your belt or waistband. For the best results keep it close to your hip and keep in mind that the pedometer works best when it is in a vertical position and level.
HOW TO WEAR YOUR DEVICE

HOW TO DETERMINE YOUR STRIDE LENGTH

When you walk each step that you take is a certain length. That step / stride length needs to be entered into your DIGIWALKER pedometer so that it can calculate distance Since your steps will vary in their length, you want to determine your average step length. The best way of doing this is to walk a given (measured) distance while counting the number of steps that it takes to cover that given distance. Divide the known distance by the number of steps that it took to cover the distance. A high school or college track works well. The more accurately you can determine your average stride length, the more accurate the distance shown on the pedometer will be.

Example (Kilometers): Say you find a high school track with a 100M distance marked on it. Now walk, jog or run the 100M, counting your steps. (NB: it is very important to emulate the type of activity and terrain where you intend to use the pedometer. E.g. stride length will vary significantly depending on whether you are running / walking, or if you are going uphill /downhill.) If it takes you 185 steps to walk, jog or run this 100M distance, then divide 100M by 185 steps, to get your average stride length: 100 ÷ 185 = 0.54M or 54 cm. Your stride length is 54 cm and that is the number that you enter into your pedometer.

Example (Miles): Say you find a high school track with a ¼ mile (1320 feet) distance marked on it. Now walk, jog or run the ¼ mile, counting your steps. (NB: it is very important to emulate the type of activity and terrain where you intend to use the pedometer. E.g. stride length will vary significantly depending on whether you are running / walking, or if you are going uphill /downhill.) If it takes you 258 steps to walk, jog or run this 1320 feet distance, then divide 1320 feet by 258 steps, to get your average stride length: 1320 ÷ 258 = 2.5. Your stride length is 2.5 feet and that is the number that you enter into your pedometer.

HOW TO SET YOUR STRIDE LENGTH

  1. Press the MODE button until the little black cursor points to DIS which stands for DISTANCE.
  2. Press the SET button. The cursor will "jump over" to STRIDE. Continue to press the SET button until your stride length appears. Stride length can be set from 30cm to 180cm in 1 cm increments (1 feet to 6 feet in 0.5 increments on the SW651). If you overshoot or wish to reduce the set stride length, continue to press the SET button until the number cycles back through to your number.
    HOW TO SET YOUR STRIDE LENGTH

HOW TO USE THE STOPWATCH

SW-650/651
Press the MODE button until the little black cursor points to STOPWATCH. To start the timing, press the SET button. To stop the timing, press the SET button again. To reset the stopwatch to zero press the RESET button.

HOW TO SET THE CLOCK


To set the clock press the MODE button until the black cursor points to CLOCK.

HOW TO SET THE CLOCK - Step 1 - Setting an hour
Press and hold the SET button. The hour digit will start to flash. Press the RESET button to change the hour digit.

HOW TO SET THE CLOCK - Step 2 - Setting a minute
Once you have the correct hour digit, press the SET button again. The minute digits will start to flash. Press the RESET button to change the minute digits.


Once you have the correct minute digits, press the SET button. That's it!

HOW TO SET YOUR WEIGHT

SW800/801
Press the MODE button to move the cursor to "CALORIE". Then, press the SET button to input your body weight. The cursor will point to "WEIGHT" (kg or lbs). The pedometer will accept weight in either 1 kg (SW800) or 1 lbs (SW801) increments starting at 30 kg or 70 lbs. The maximum weight is 120 kg or 300 lbs. After setting your weight, the cursor will automatically return to "CALORIE".
HOW TO SET YOUR WEIGHT

CALCULATING YOUR SPEED

SW800/801
The pedometer display will show your speed every 10 seconds. The displayed speed is based on a calculation of your average speed for the previous 10 seconds. The minimum displayed speed is 0.01 km/h or 0.01 mph.

REPLACING THE BATTERY

The usual battery life is 2-3 years. When the display begins to dim a new battery should be installed. Replace the battery with an LR-44 type photo / electronic battery. To replace the battery:

  1. Insert the edge of a coin in the slot on the bottom of the pedometer (opposite the end where you open it). Slowly twist the coin. The cover will pop off.
  2. Replace the "dead" battery with a new one, making sure that the + side faces up.
  3. Replace the cover, making sure that it is properly aligned and then snap it shut.
  4. You must then reset, by holding down all of the buttons simultaneously for about 5 seconds. When the display goes blank, release the buttons. Your display will show "88888" then "0". The time and your stride length can then be reprogrammed.

Erratic Display

If there is an unusual or erratic display, please press all the buttons at the same time for about 5 seconds. The display will then show "88888"; after a few seconds, the display will automatically revert to "0". After this manual reset, you will need to enter the date, time, stride length, and your weight (SW800/801).
Using the Erratic Display

IF YOUR PEDOMETER REQUIRES SERVICE, please return it to a St. Moritz Service Center. Our Service Centers can provide repairs, service and replacement bands promptly and at reasonable prices. When sending your pedometer, please provide your return shipping information, including email address and daytime phone number.
