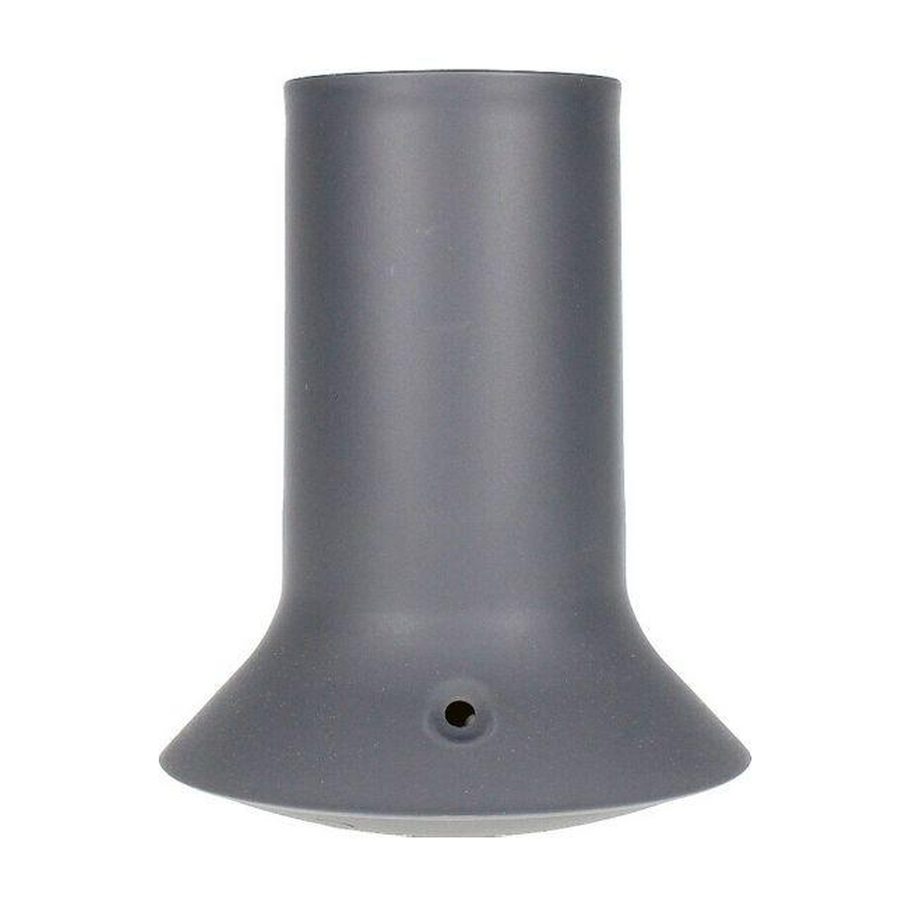

Pranarom SOLEO - Diffuser Manual

Table of Contents

Contents

1 Components
2 Instructions
3 Charging the battery
4 Cleaning and maintenance
- 4.1 QUICK AND EASY MAINTENANCE
- 4.2 DEEP CLEAN
5 Technical features
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

Components

Solar panel
Lid
On/Off button
Mist outlet
Battery indicator
USB micro port
Base
Screw thread, reservoir
Female connector
Female pin
Finger grip
Ultrasonic pad
Male pin
Male connector
Micro USB cable
USB adaptor

Instructions

Remove the lid carefully towards the top without twisting.
Hold the diffuser upside down with the grip (11) and gently screw the bottle of essential oil onto the diffuser (8) without removing the drop counter.
Turn the diffuser upside down and shake lightly so that the essential oil flows into the reservoir.
Replace the lid.
Once the diffuser is charged, press the ON/OFF button for 3 seconds to start diffusion. Light jets of mist will be released from the diffuser intermittently, depending on the diffusion setting chosen.
NB : Never turn on the diffuser without a bottle except during "purge mode" used while cleaning (See "Cleaning and maintenance"). Never touch the ultrasonic pad directly or indirectly. To start diffusion, it is important to press firmly on the ON/OFF button for 3 seconds.
Select the required setting
When finished diffusing or when changing the essential oil: Turn the diffuser to keep the bottle upright with the neck pointing upwards. Remove the cap, shake gently from top to bottom for at least 30 seconds (see drawing) so that the essential oil flows into the bottle.
After 30 seconds: Hold the diffuser upside down and then unscrew the bottle.
Never touch the ultrasonic pad directly or indirectly.

Action/ Cycle	Cleaning	Spray intervals	LED	Automatic stop
Press and hold (3 sec)	"Intense" setting ON	1 spray every 10 secs	Purple	After 1 hr
Press once	"Mod-erate" setting	1 spray every 30 secs	Yellow	After 4 hrs
Press twice	"Night" setting	1 spray every 60 secs	White	After 8 hrs
Press three times	Return to "intense" mode
Press and hold (3 sec) for all settings	OFF	OFF	OFF	OFF
Cleaning mode: When the diffuser is not running, quickly press 3 times on the button	Continuous diffusion for 20 minutes to empty the oil reservoir	Continuous	Alternating LED lights (Purple/ Yellow/ White)	20 min

Charging the battery

The diffuser comes with an integrated lithium battery so that the device can be used autonomously.
Charge the diffuser fully before using for the first time.

There are 2 ways of charging the solar diffuser:

Using the solar panel (1):
Position the solar panel (1) of the diffuser under a natural light source.
The battery indicator (5) will light up (red LED) to indicate that the device is charging.
When the diffuser is fully charged the red LED light goes off. The charging time is 8 hr, with an autonomy of 8 hr.
Using the USB cable (15):
Connect the USB cable (15) to the USB micro port (6) of the diffuser.
Connect the USB cable to the adaptor provided.
Connect the adaptor to a power supply.
The battery indicator (5) will light up (red LED) to indicate that the device is charging.
When the diffuser is fully charged the red LED light goes off. the charging time is 8 hr, with an autonomy of 8 hr. You may then unplug the device.

warning NB: you can run your diffuser while it is charging with the solar panel or the USB cable.

Cleaning and maintenance

READ THE MAINTENANCE INSTRUCTIONS CAREFULLY TO PREVENT THE PRODUCT FROM CLOGGING UP.

For optimal running of your diffuser, it should be cleaned regularly (once a week) if used regularly. By doing this you will prevent any obstruction occurring.

QUICK AND EASY MAINTENANCE

When changing an essential oil:

Switch off the diffuser and unplug the connection cable.
Remove the bottle as in diagram no. 8, then put the cap on the bottle.
Gently wipe off any essential oil that has spilled underneath, at the point of diffusion.
Activate the Purge mode: press the ON/OFF button 3 times in succession (Alternating purple, yellow and white LED lights): continuous diffusion for 20 minutes that empties the reservoir of the product.

When using the diffuser again after a long period without use:

Remove the bottle as in diagram no. 8
Activate the Purge mode: Press the ON/OFF button 3 times in succession (Alternating purple, yellow and white LED lights): continuous diffusion for 20 minutes that empties the reservoir of the product and cleans the ultrasonic pad.

DEEP CLEAN

Pour 2 ml of alcohol into an empty bottle with a drop counter. To do this, remove the drop counter and when the alcohol has been poured, attach the drop counter again.
Screw on the bottle containing the alcohol and fitted with the drop counter, shake and then launch Purge mode. Leave it to run for a few minutes. Let all the alcohol in the bottle and the reservoir evaporate until the diffusion has stopped completely.
You may then use the diffuser in the usual way.
