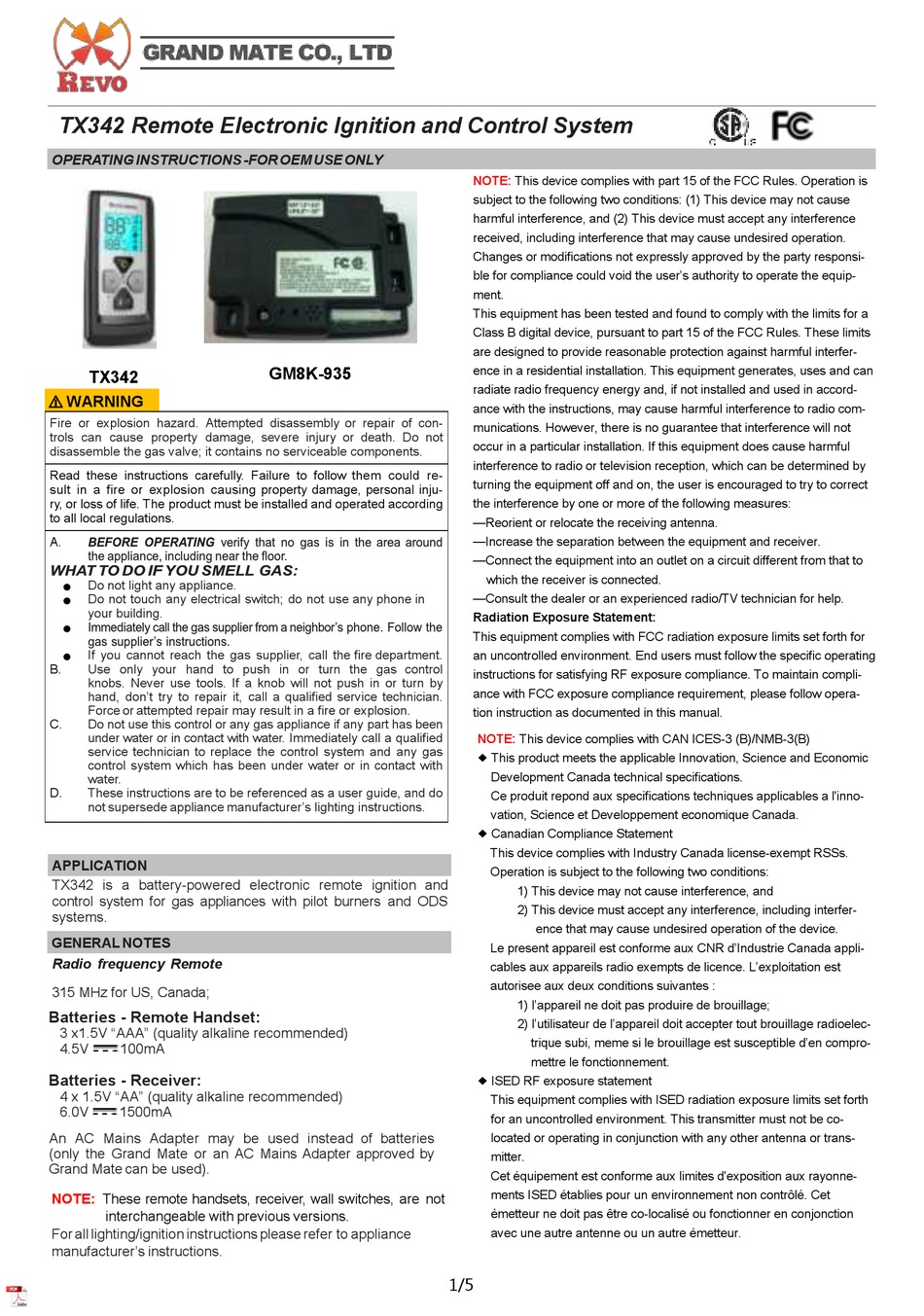

Revo TX342 Operating Instructions

TX342 Remote Electronic Ignition and Control System
OPERATING INSTRUCTIONS -FOR OEM USE ONLY
TX342
⚠ WARNING
Fire or explosion hazard. Attempted disassembly or repair of con-
trols can cause property damage, severe injury or death. Do not
disassemble the gas valve; it contains no serviceable components.
Read these instructions carefully. Failure to follow them could re-
sult in a fire or explosion causing property damage, personal inju-
ry, or loss of life. The product must be installed and operated according
to all local regulations.
A.
Do not light any appliance.
●
Do not touch any electrical switch; do not use any phone in
●
your building.
●
If you cannot reach the gas supplier, call the fire department.
●
B. Use only your hand to push in or turn the gas control
knobs. Never use tools. If a knob will not push in or turn by
hand, don't try to repair it, call a qualified service technician.
Force or attempted repair may result in a fire or explosion.
C. Do not use this control or any gas appliance if any part has been
under water or in contact with water. Immediately call a qualified
service technician to replace the control system and any gas
control system which has been under water or in contact with
water.
D. These instructions are to be referenced as a user guide, and do
not supersede appliance manufacturer's lighting instructions.
APPLICATION
TX342 is a battery-powered electronic remote ignition and
control system for gas appliances with pilot burners and ODS
systems.
GENERAL NOTES
Radio frequency Remote
315 MHz for US, Canada;
Batteries - Remote Handset:
3 x1.5V "AAA" (quality alkaline recommended)
4.5V 100mA
Batteries - Receiver:
4 x 1.5V "AA" (quality alkaline recommended)
6.0V 1500mA
An AC Mains Adapter may be used instead of batteries
(only the Grand Mate or an AC Mains Adapter approved by
Grand Mate can be used).
NOTE: These remote handsets, receiver, wall switches, are not
interchangeable with previous versions.
For all lighting/ignition instructions please refer to appliance
manufacturer's instructions.
GM8K-935
NOTE: This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate the equip-
ment.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accord-
ance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain compli-
ance with FCC exposure compliance requirement, please follow opera-
tion instruction as documented in this manual.
◆ This product meets the applicable Innovation, Science and Economic
NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B)
Development Canada technical specifications.
Ce produit repond aux specifications techniques applicables a l'inno-
◆ Canadian Compliance Statement
vation, Science et Developpement economique Canada.
This device complies with Industry Canada license-exempt RSSs.
Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
Le present appareil est conforme aux CNR d'Industrie Canada appli-
cables aux appareils radio exempts de licence. L'exploitation est
autorisee aux deux conditions suivantes :
1) l'appareil ne doit pas produire de
2) l'utilisateur de l'appareil doit accepter tout brouillage radioelec-
trique subi, meme si le brouillage est susceptible d'en compro-
◆ ISED RF exposure statement
mettre le fonctionnement.
This equipment complies with ISED radiation exposure limits set forth
for an uncontrolled environment. This transmitter must not be co-
located or operating in conjunction with any other antenna or trans-
mitter.
Cet équipement est conforme aux limites d'exposition aux rayonne-
ments ISED établies pour un environnement non contrôlé. Cet
émetteur ne doit pas être co-localisé ou fonctionner en conjonction
avec une autre antenne ou un autre émetteur.
1/5
brouillage;
