Summary of Contents for Hawksmoor 12102

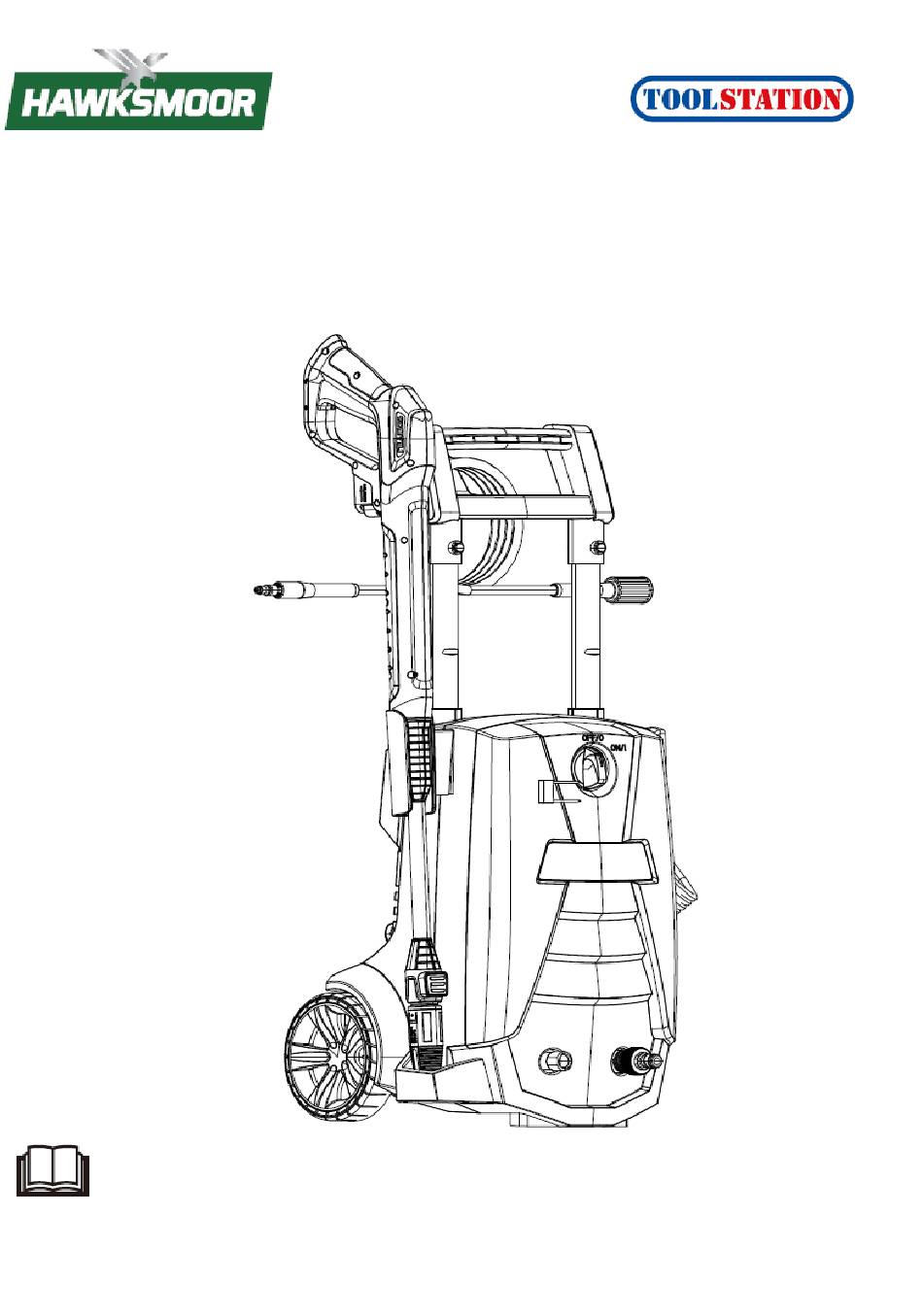

- Page 1 Original User’s Instructions High-pressure Washer 1800W SKU: 12102 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT ⚫ WHAT’S IN THE BOX-------------------------------------------------------------- ------- 3 ⚫ TOOLS REQUIRED------------------------------------------------------------------------ 4 ⚫ SPECIFICATIONS-------------------------------------------------------------------------- 4 ⚫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS---------- 5 ⚫ IMPORTANT SAFETY WARNINGS--------------------------------------------------- 6 ⚫ PRODUCT DESCRIPTION AND IDENTIFICATIONS----------------------------- 9 ⚫ ASSEMBLY AND OPERATING INSTRUCTIONS--------------------------------- 10 ⚫... -
Page 3: What's In The Box
WHAT’S IN THE BOX Pressure hose Trigger gun Pressure lance Patio cleaner brush Angle connector Rotating nozzle Adjustable spray nozzle nozzle Screw x4 Trigger gun holder Trigger gun protector Rotary nozzle Water hose connecter Nozzle cleaning needle High pressure hose hook Foam sprayer Machine body... -
Page 4: Tools Required
TOOLS REQUIRED PH2 Screwdriver SPECIFICATIONS • 230V~50Hz • Max pressure:140Bar(14Mpa) • Max flow:8 L/min • Auto stop/start function • On-board accessory storage • 6 m PVC high-pressure hose • 5 m Power cord TECHNICAL DATA Model YLQ5630H-140A Rated Voltage 230V~50Hz Rated Power Rate 1800W Plug... -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Wear eye protection. Wear protective gloves. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Wear protective, slip-resistant footwear. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. - Page 6 This product is of protection class II. That means it is equipped with enhanced or double insulation. UK Conformity Assessed The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. WEEE symbol. Waste electrical products should not be disposed of with household waste.
-
Page 7: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Product shall not be used by children. Children should be supervised to ensure that they do not play with the product. This product can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the product in a safe way and understand the hazards involved. - Page 8 WARNING: Do not use the product if the power cord or any part of the product is damaged, e. g. safety devices, high-pressure hoses, trigger gun. Never use the product if the high-pressure hose is damaged. WARNING: Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground.
- Page 9 High-pressure may cause parts to rebound: wear all the protective clothing and equipment needed to ensure the operator’s safety. Be aware of kick-back: grip the gun firmly when pulling the trigger. Comply with the regulations of the local water supply authority. Under BS EN 12729 (Type BA) the product can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer device with drainage facility.
- Page 10 requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
-
Page 11: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS Handle Trigger gun holder Trigger gun Accessory holder Power cord hook Foam sprayer On/off switch (“ON/I”/“OFF/O”) Wheel Front case Patio cleaner Water inlet Rotary nozzle Water outlet Power cord High-pressure hose hook Trigger gun lever lock High-pressure hose Trigger gun hose release 19. -
Page 12: Assembly And Operating Instructions
ASSEMBLY AND OPERATING INSTRUCTIONS WARNING! The product and the packaging are not children’s toys! Children must not play with plastic small parts! There is a danger of choking and suffocation! Assemble the pressure washer Unpack all parts and lay them on a flat, stable surface. ... - Page 13 Install the trigger gun protector using screw provided. Align the mounting hole and assemble the trigger gun protector onto the product. Secure the connection with the long screw. Install the high-pressure hose hook. Align the mounting holes and assemble the pressure hose holder onto the product.
- Page 14 Installing the spray wand: Attach the adjustable spray nozzle or rotary nozzle to pressure lance to the trigger gun and rotate them until the three parts are completely locked. Align the tongues of the pressure lance with the grooves of the lance connection port of the spray gun and insert it.
- Page 15 Connect the high-pressure hose to the water outlet: Connect the other end of the high-pressure hose to the water outlet on the washer and twist the black rotatable end-piece as indicated to secure the connection. Connect the garden hose to the water inlet: Connect the water hose connecter to the water inlet of the pressure washer, then thread your garden hose into the water hose connecter.
- Page 16 protected against water splashing. Ensure the extension cord is of the proper size and type for your product (≥ 1.5 mm²)! Always use a residual current device (RCD) protected supply. Start up the device as follows prior to operation: •...
- Page 17 • Turn the on/off switch to “ON/I” (on). Hold the spray gun with both hands. Direct the water jet to the object to be cleaned and press the trigger. Release the lever of the trigger gun, the device will switch off again and stop the water jet.
- Page 18 Turn on the pressure cleaner. Press the trigger to operate the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle. Handle adjustment Pushing the handle release button and hold it in position. ...
- Page 19 Tips WARNING! Prevent water from penetrating the air vents of the product to minimize the risk of damage to the product and to reduce the risk of electric shock to the operator! When dealing with vertical surfaces work from the bottom upwards. Rinse from the bottom upward, use the high-pressure jet at a minimum distance of 30 cm at 45°...
-
Page 20: Care And Cleaning
CARE AND CLEANING WARNING! Always switch the product off, disconnect the product from the water and power supply and let the product cool down before performing inspection, maintenance and cleaning work! Keep the product clean. Remove debris from it after each use and before storage. ... -
Page 21: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEM POSSIBLE CAUSES REMIDIES 1. Product does not start 1.1 Not connected to power 1.1 Connect to power supply supply 1.2 Check by a specialist 1.2 Power cord or plug is electrician defective... -
Page 22: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 12102 (YLQ5630H-140A) Product Description: High-pressure Washer 1800W 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration... -
Page 23: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 24: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
