Record Power Magnetic LED Work Lamp Original Instruction Manual

Download this manual

Version 3.2

January 2019

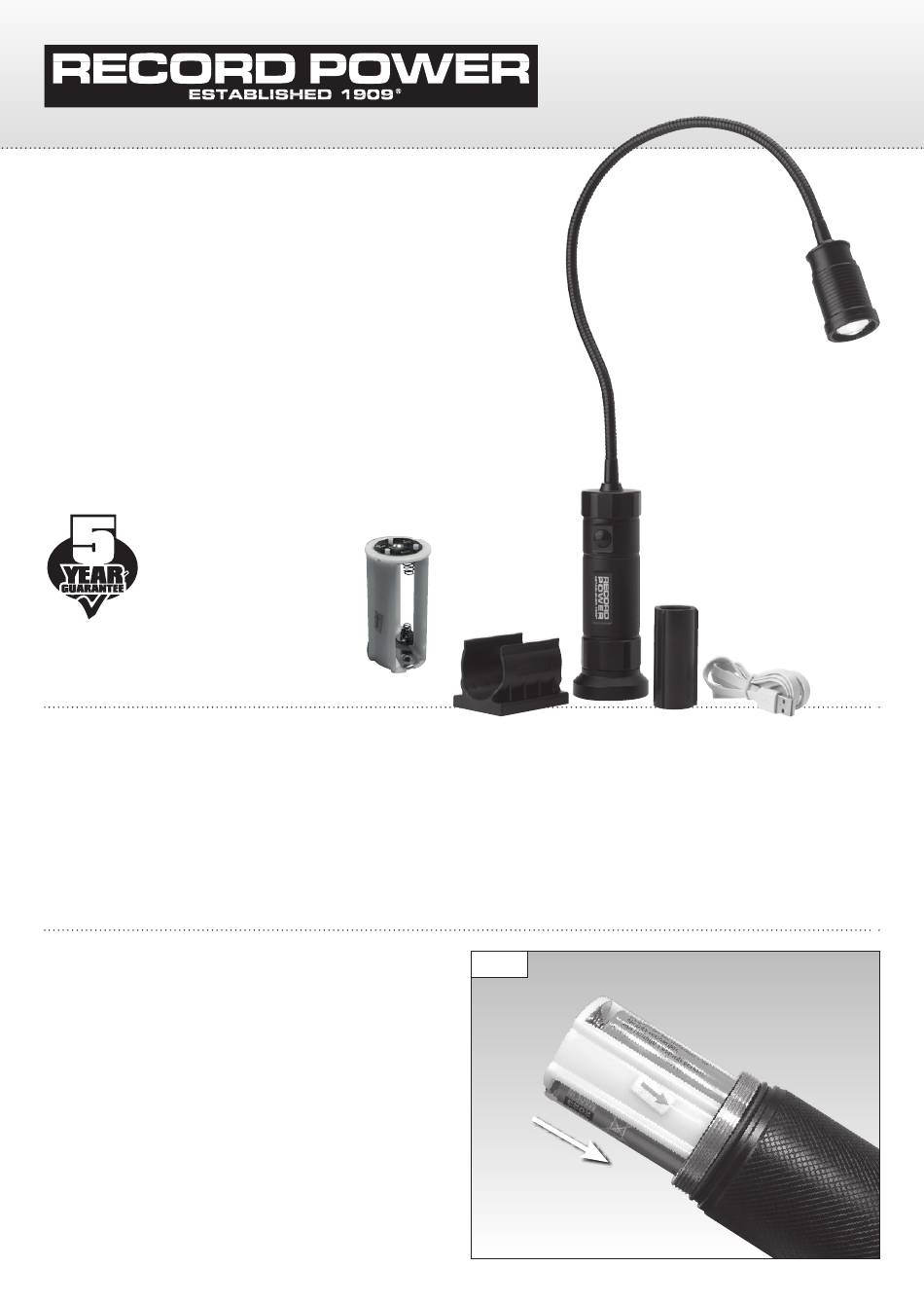

1 Magnetic LED work lamp

2 AA battery holder

3 Lithium battery holder

4 Magnetic side clip

5 Micro USB-A cable

Specifications

LED:

CREE XM-L2

Luminance:

500 lm

Bulb Life:

5 0,000 hrs (bulb not replaceable)

Batteries:

3 AA or 1 rechargeable lithium

18650 with overload protection

(not supplied)

To Use with 3 AA Batteries

Place 3 AA batteries into the battery holder

according to the + - symbols on the ends of the

holder. Unscrew the end cap at the base of the

lamp and insert the holder into the lamp body

following the directional arrow on the side of

the holder as shown in Fig 1. Screw the end cap

back on and press the button to switch the lamp

on / off.

Approx. life: AA = 3.5 hrs

Includes:

Fig 1

Magnetic LED Work Lamp

Original Instruction Manual

Lithium 18650 = 5.5 hrs

M agnetic base, magnetic side clip,

AA and Lithium battery holders

and Micro USB-A cable

Need help?

Do you have a question about the Magnetic LED Work Lamp and is the answer not in the manual?

Page 1 Magnetic LED Work Lamp Original Instruction Manual Version 3.2 January 2019 1 Magnetic LED work lamp 2 AA battery holder 3 Lithium battery holder 4 Magnetic side clip 5 Micro USB-A cable Specifications LED: CREE XM-L2 Approx. life: AA = 3.5 hrs Luminance: 500 lm Lithium 18650 = 5.5 hrs Bulb Life: 5 0,000 hrs (bulb not replaceable) Includes: M agnetic base, magnetic side clip, Batteries: 3 AA or 1 rechargeable lithium AA and Lithium battery holders 18650 with overload protection...
Page 2 To Use with 1 Lithium 18650 Battery Fig 2 Insert the Lithium battery into the Lithium battery holder then insert into the lamp body with the positive (+) end facing forwards. Screw on the end cap and press the button to switch the lamp on / off. The use of a good quality battery with overload protection is recommended. To Use with the Micro USB-A Cable Ensure the empty AA battery holder is fitted inside the lamp. Attach the Micro USB-A cable to Micro USB-A port the lamp and 5 V, 1 A USB plug socket adaptor (not included) to operate. See Fig 2. Focus Adjustment Fig 3 The lamp beam is adjustable from a spotlight...
