- Page 1 NeoNatalie Resuscitator Oxygen Kit REUSABLE User Guide QTY 1 each Cat.No. 846141 This Oxygen Kit is an accessory to the Laerdal NeoNatalie Resuscitator, Cat. No.846040. www.laerdalglobalhealth.com...
- Page 3 Contents Clinical Indications Important Information Items Included Attach Oxygen Valve Housing to Resuscitator Function Test Clinical Use Disassembling and Reassembling Cleaning and Disinfection Specifications...
- Page 4 Clinical Indications Note The following applies to the main device NeoNatalie Resuscitator, when used with the NeoNatalie Resuscitator Oxygen Kit. Device Description The NeoNatalie Resuscitator is a self-inflating manual resuscitator that is intended for patients requiring total or intermittent ventilatory support.
- Page 5 • Care should be taken when using the NeoNatalie Resuscitator on patients with severe pulmonary disease or severely immature lungs. • The NeoNatalie Resuscitator is not intended for use in delivery of medications, such as anaesthetic gases. Cautions •...

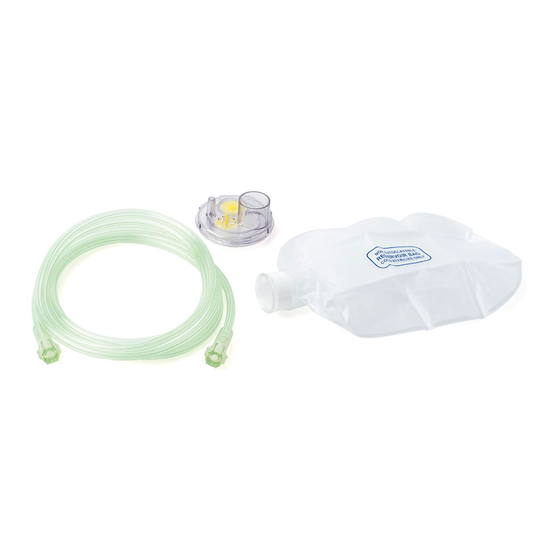

- Page 6 Oxygen Valve Housing Oxygen Reservoir Bag Oxygen Tube User Guide Oxygen Reservoir Bag with Tubing Caution Use only Oxygen Kit (NeoNatalie) parts from a Laerdal authorized source with this resuscitator. Spare Parts Cat. no Description 846130 Oxygen Reservoir Bag and Tubing (NeoNatalie) Safety When Using Oxygen 1.
- Page 7 Attach Oxygen Valve Housing to Resuscitator Place the Oxygen Valve Housing onto the Inlet Valve. Screw to fasten.
- Page 8 Function Test Check before each use. Fill the Reservoir Bag with ambient air by using the resuscitator as a pump. Attach the filled Reservoir Bag to the Oxygen Valve Housing.
- Page 9 Function Test Check visually that the Outlet Valve opens and Compress the filled Reservoir bleeds off excessive air/ Bag rapidly with your hand. oxygen, for cases when oxygen supply is excessive. Seal the oxygen nipple with a finger. Squeeze the Ventilation Bag several times until the Reservoir Bag is flat and empty.
- Page 10 Clinical Use Using the Oxygen Kit The Oxygen Valve Housing and the Inlet and Outlet valves must be cleaned and disinfected before first patient use. The Oxygen Kit may be reused provided proper reprocessing procedures are performed between each patient use. Do not attempt cleaning of Oxygen reservoir bag and tubing inside.
- Page 11 Disassembling and Reassembling Disassembling the Oxygen Kit Disassemble the Oxygen Valve before performing the cleaning procedure. Unscrew the Oxygen Valve Housing from the bag. Remove Inlet and Outlet Valves from the Oxygen Valve Housing. Reassembling the Oxygen Kit Discard any damaged components. To reassemble the Oxygen Kit, perform the steps described under Disassembling the Oxygen Kit section in reverse.
- Page 12 Cleaning and Disinfection After each use, disassemble and clean the Oxygen Kit parts. Oxygen Valve Housing and yellow Inlet and Outlet Valves Cleaning 1. Manual Cleaning: Wash all parts in a clean tray with clean water and mild soap. Use a scrub or brush to remove any soil.
- Page 13 Specifications Meets ISO 10651-4:2002/EN ISO 10651-4:2009, Lung ventilators – Particular requirements for operator–powered resuscitators. Symbol Glossary Symbol Definition This medical device complies with the general safety and performance requirements of Regulation (EU) 2017/745 for medical devices. Medical Device Not made with natural rubber latex. Delivered oxygen concentration Measured at approx.
- Page 14 50 cycles of reprocessing Material Chart Reservoir Bag Polyvinylchloride (PVC) and Polycarbonate (PC). Oxygen Tube Polyvinylchloride (PVC) Valve housing Polysulfone (PSU) Valves Silicone Rubber (SI) Laerdal Global Warranty Refer to one-year Laerdal Global Warranty for terms and conditions. For more information, visit www.laerdal.com.
- Page 16 NeoNatalie, Laerdal and the Laerdal Logo are trademarks of Laerdal Medical AS or its affiliates. Ownership and all rights reserved. © 2022 Laerdal Medical AS. All rights reserved. Manufactured in China for: Laerdal Medical AS P.O. Box 377, Tanke Svilandsgate 30, 4002 Stavanger, Norway T: (+47) 51 51 17 00 www.laerdalglobalhealth.com...
