Summary of Contents for AOSEED X-MAKER
- Page 1 User Manual...
- Page 2 Hi, this is AOSEED X-MAKER. X-MAKER, an AI-powered 3D printer, is a brand new product with a gamification 3D design App.Thanks to the minimalist interaction design, intelligent algorithms and high-speed Wi-Fi data transmission, the one-touch printing feature makes this 3D printer available to everyone allowing you to create anything. The X-MAKER does not It's not just a 3D printer, but it also includes a powerful software and rich content, like "Things", "Theme", "Design"...
- Page 3 Notices Install the filament Touchscreen Troubleshooting Load the filament Unload the filament Support and help Model printing Printing complete Remove support material Change the filament Move Calibration&Leveling Control More settings X-MAKER App Download Introduction Things / Theme / Design Print...
- Page 4 Our Product Product composition X-MAKER 3D Printer X-MAKER Design App X-PRINT Slicing Software...
- Page 5 Packing list Power Cord x1 PLA Filament x1 Filament Holder x1 Pliers x1 Flexible & Magnetic Tool Kit x1 Base plate x1 3D Printer x1 Printable creative models X-MAKER App installer U Disk x1 X-PRINT installer Quick Start x1...

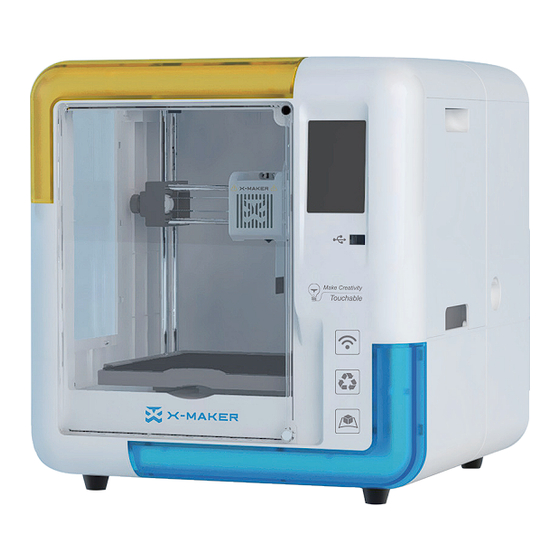

- Page 6 Main components Extruder Door Frame Light Touchscreen Filament Error Sensor Miniframe Box Baffle Nozzle USB Port Holder Placement Flexible & Magnetic Base plate Filament Inlet Printing Platform Power Switch Power Entry Door Frame Light...
- Page 7 3D Printer Instructions Power On Connection Turn on Connect the power cord to the printer and the other end to Turn on the printer using the power switch a power outlet. (Please keep your hands dry.) on the back.
- Page 8 Language Connection Select your preferred language. You can also Wi-Fi: With the same WLAN, the X-MAKER App can be connected to the printer. change it by going to "Setting -> Language". Access Point: When there is no WLAN available, the printer's...
- Page 9 Install the filament holder Filament Inlet Filament Inlet Right Wrong Install the filament holder Place the spool Place the filament spool in the holder. Install the holder on the right side of the printer. (Please make sure the filaments are not knotted or crossed.)
- Page 10 Install the filament Filament Inlet Note: The tip of the filament should be straightened and cut at an oblique angle. Instructions Insert the tip into the filament inlet until the prefeeder grabs the material. Push the spring up (as shown by the red arrow in the figure above), so that to make the filament enter smoothly.
- Page 11 Touchscreen Preheat: Nozzle/hotbed heating and cooling Extrusion: Load or unload Print: Select the file manually to print Calibration: Adjust the distance Filament: Load / unload between the nozzle and base plate Move: Adjust X/Y/Z axes Connect: Network connection Language: Change language Setting: More settings Control:...
- Page 12 Load the filament Method 1 Go to "Filament -> Load" and wait for the nozzle to heat up. When the nozzle reaches target temperature, the filament will be loaded automatically. Wait for the filament to come out of the nozzle and press the [Cancel] button. Method 2 Go to "Setting ->...
- Page 13 Unload the filament Method 1 Go to "Filament -> Unload" and wait for the nozzle to heat up until the filament is unloaded under the extruder gear and pull out the filament directly. Method 2 Go to "Setting -> Preheat" and set target temperature, then select "Start" to continue. (The target temp for PLA is 200 °C, and for ABS is 230 °C.
- Page 14 1. Get your pattern to cut using X-PRINT. 2. Load the file into the printer and print it with one-touch. (Make sure your printer and X-MAKER app are connected to the same WLAN.) * Alternatively, you can save the file to a U-disk for printing with offline printers.
- Page 15 Printing complete Remove the print Once the print job is finished, allow the baseplate to cool down for 5 minutes before reaching inside. If the print is removed without complete cooling, some parts of the print may adhere to the baseplate. (*Don't touch the nozzle and allow it to cool down below 45 °C to avoid burns.) Use pliers to remove the support structures of the impression.
- Page 16 Remove support material Some models have overhanging parts. In this case, you must print a support structure under the model to prevent these parts from falling off. The support structures must be removed when the print is finished. You can remove the support structures manually or using pliers.
- Page 17 Change the filament In an idle state Go to "Filament -> Unload" and wait for the nozzle to heat up until the filament is unloaded under the extruder gear. Remove the filament and load a new spool of filament. During printing Go to "Pause ->...
- Page 18 Move To ensure optimal printing results, you need to perform the XYZ axes calibration during maintenance. Go to "Setting -> Move -> Reset" and wait for the XYZ axes to reset. Select the moving distance: 1mm, 5mm, or 10mm. Press the [+/-] button and move the XYZ axes. (If the distance is set to 10mm, press the [+/-] button once and the X/Y/Z axis will move 10mm accordingly;...
- Page 19 Calibration&Leveling After using the X-MAKER 3D printer for a long time,the calibration should be performed to adjust the distance between the nozzle and the base plate. 1. If the distance between them is too wide, your print will not adhere properly to the base plate.
- Page 20 Control CONTROL includes switches for internal light, external light, fan, ES mode, child lock, power loss recovery and filament error sensor. Internal: Control the lights inside External: Control the external lights Fan: Control the fans to cool down ES Mode: Low the temperature inside for optimal printing results Child Lock: Prevent the print stop or other problems caused by...
- Page 21 More settings Help Here you can see a QR code for exploring courses, as well as a QR code for downloading X-MAKER App. Explore gameplay Download Status Nozzle temperature, base plate temperature and XYZ coordinates are shown in this page.
- Page 22 For Android Tablet / iPad Go to "Setting -> Help" using the touchscreen and scan the QR code for download it with your tablet/iPad. Search the name of X-MAKER in the app stores and download. Store Open the App store Search "X-MAKER"...
- Page 23 Introduction Several well-designed and Things growing model databases. Gamification 3D design mini Theme programs Two LEGO-style and Design user-friendly design apps AI-powered one-touch Print printing feature Constant new gameplay Explore and exploration...
- Page 24 Things Well-designed 3D model library in four categories. Creat anything with your infinite creativity. Eduction Animal Creativity&Fun Science Household Plant Traffic Toys & Games Festival … Original well-designed 3D model library 3D real-time view Task1 Task2 Task3 High-speed & stable Wi-Fi connection Intelligent data process for one-touch printing...
- Page 25 Theme Gamify 3D Customized Gadgets for Personalized Designs Make Creation Touchable. 剑龙拼插 15 gamify 3D design gadgets Diverse themes can be selected 一键打印 智能优化算法,轻松 High-speed Wi-Fi transmission for printing Customize unique model toys...
- Page 26 Design Graphic & Modeling 3D Design Apps for Advanced Creations 剑龙拼插 Two powerful 3D-design apps Magic 3D geometry design 一键打印 智能优化算法,轻松 High-speed Wi-Fi transmission for printing Compatible with imported models...
- Page 27 Press the button at the upper right corner and search for available printers. Select your X-MAKER 3D printer and connect to it . (Make sure your printer and the X-MAKER App are connected to the same WLAN.) Alternatively, you can perform the IP Connection if your printer cannot be found. ( The IP address can be found by navigating to "Setting ->...
- Page 28 X-PRINT Slicing Software After successfully setting up the printer and the X-MAKER App, install the X-PRINT - IME's free slicing software on your computer. You can download X-PRINT at www.aoseed.com/downloads. Supported OS Windows System Requirements · Display card compatible with OpenGL 2 ·...
- Page 29 Interface UI elements the X-PRINT 1 Menu bar 2 Adjustment tools 3 Printer connection 4 [Slice] button 5 Working range 6 Model editing panel editing 7 3D viewer...
- Page 30 Model editing The X-PRINT includes functions to move, scale, rotate, or duplicate parts and optimize the layout. An Optimal layout can reduce the need for support material. Move Scale Rotate Select the model you would like to Select the model you would like to Select the model you would like to scale and click the [Scale] button.
- Page 31 Model slicing Prepare the model for slicing before the print stage. Go to "Settings -> Slice settings" and set the parameters control. Layer height: The Layer height is the thickness at which each horizontal layer is sliced. A thinner layer height produces a higher resolution. Similarly a thicker layer heights reduce resolution.
- Page 32 [Print] button, as well as a [Save] button. Press the [Save] button and save the files to your computer as Xcode / Gcode. Press the [Print] button and print it via the network that the X-MAKER 3D printer is connected to.
- Page 33 Control panel: 3.5-inch touch screen USB2.0 Output： 5V 0.5A Connectivity: Wi-Fi / U disk FCC ID： 2A35N-V04 File type: Xcode / Gcode Compatible filaments: PLA/ABS Supplied software: X-MAKER App / X-PRINT Language: Chinese / English * Recommended max ambient temp: 35℃...
- Page 34 Please notice the supported versions. The recommended ambient temp for Do not change frequently the filaments The X-MAKER app may work with some using the printer is 0-35℃. If you don't of different brands or types to avoid Android smartphones, but the experience use it, please turn off the printer.
- Page 35 · Check if the filament is broken. · Check whether the nozzle is clogged. If it did, clean the nozzle. · Check if the filaments and spool are wrapped or crossed. For more user manual and instructions, please visit www.aoseed.com/support/XMaker.
- Page 36 Support and help More interesting gameplays and usage techniques will be updated in the "Explore" module of the X-MAKER app and on our website. our website: www.aoseed.com Explore Scan for more support Warranty messages 1. Please carefully read and understand the contents of this user manual before using the product.
- Page 37 @Aoseed2011 @Aoseed2011 @Aoseed2011 Product Name: X-MAKER 3D Printer Product Model: V4.0 Manufacturer: Aowei (Shanghai) Digital Technology Co., Ltd. Contact: +86-21-60719032 Address: Building 12, No. 51, Lane 1895, Hutai Road, Shanghai, China...
