Agrosta

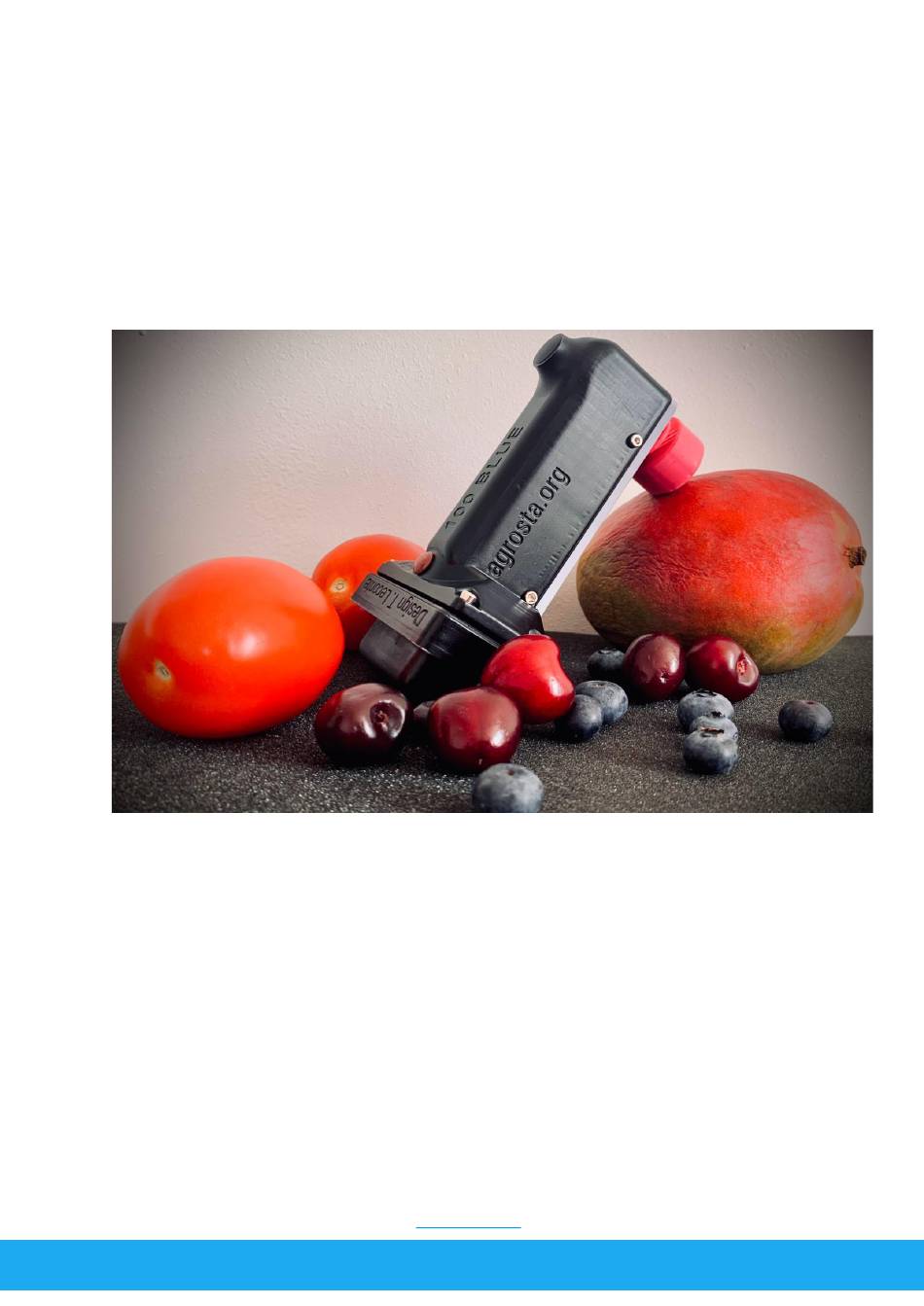

Digital Firmness Tester
The
AGROSTA®
firmness/maturity tester dedicated to soft fruits communicating via Bluetooth
Thanks !
Many thanks for having acquired an Agrosta instrument
Your package contains :
● Box with the instrument itself
● Charger
● Certificate of conformity
● Manual
● Set of tip protections
We highly recommend reading the user manual, as it provides
clear and concise instructions to help you maximize the use of the
device.
13 Rue du Bastringue – 76440 SERQUEUX - FRANCE
lak@agrosta.org –
100 BLUE
®
100 BLUE has been designed end 2022. It is a
with an app for android or Windows.
www.agrosta.org – Tel +33 689494340
Advertisement
Related Manuals for Agrosta 100 BLUE
Summary of Contents for Agrosta 100 BLUE
- Page 1 100 BLUE ® Digital Firmness Tester AGROSTA® 100 BLUE has been designed end 2022. It is a firmness/maturity tester dedicated to soft fruits communicating via Bluetooth with an app for android or Windows. Thanks ! Many thanks for having acquired an Agrosta instrument Your package contains : ●...
- Page 2 Agrosta®100 BLUE Product Overview The Agrosta 100 BLUE is provided with one sensor (10, 25 or 50) according to your requirements. You can buy adaptors separately : ● A100-10 sensor for peaches (35% to 95%), apricots (45% to 95%), grapes and kiwis (35% to 95%) , cranberries–...
- Page 3 Agrosta®100 BLUE Accuracy Specifications: ● Minimum Percentage: 10% (Operation Threshold) ● Maximum Percentage: 100% (When Fully Depressed, Equivalent to 806 grams of Pressure) ● Resolution: +/- 1% ● Maximum Memory Capacity: Extensive - Limited Only by Smartphone or Tablet ● Battery Life: 9 Hours of Continuous Work with 2 Hours of Charging Additional specifications: ●...
- Page 4 Agrosta®100 BLUE Android Mobile application Requirements : If your device does not have a built-in QR code reader, please install a separate QR code scanner app if you intend to use the barcode functions. Step 1: Installation Option 1: Scanning the QR Code 1.
- Page 5 TAKE CARE TO TAKE THE DEVICE IN HAND (AND IN WORK POSITION) BEFORE PRESSING THE TOUCHPAD THE TIP HAS TO BE COMPLETELY EXEMPT OF ANY PRESSURE WHILE YOU SWITCH ON THE DEVICE IF YOU HAVE A DOUBT, JUST CLOSE THE AGROSTA APP, IT WILL SWITCH OFF THE DEVICE...
- Page 6 Agrosta®100 BLUE Step 3: Opening the Application Open the application : If this screen appears, please check the phone settings to ensure that the connection is established. If not, please repeat Step 2. 2. If the connection is successfully established, press the touchpad of the device to proceed.
- Page 7 Agrosta®100 BLUE Step 4: Application Features 1. Data Analysis : You can analyze the recorded measurements using various statistical tools, such as average (a), standard deviation (b), sample count (c), and graphical representation (d).
- Page 8 Agrosta®100 BLUE 2. Data Export : The application provides the option to export the measurement data in text formats, allowing you to share or analyze it using external tools.Once you have finished measuring your batch, enter a file name in the text box and click on "RECORD BATCH."...
- Page 9 Agrosta®100 BLUE recording the data into a file, the measurements are automatically removed from the list. To return to the measurement screen, click on the "BACK" button. The recorded files are available in ".csv" format, which is compatible with Excel. The files use the semicolon ";"...
- Page 10 Agrosta®100 BLUE 5. Sample Size Button (b): This button allows you to measure the average of a specified number of measurements taken on the same fruit. A dropdown menu provides options to choose between 2, 4, 6, or 8 measurements. Alternatively, users can manually enter a custom sample size of their choice.
- Page 11 Agrosta®100 BLUE 7. Remove Button: This button, by default, removes the last measurement or the selected measurement from the list. It offers the flexibility to selectively delete specific entries without erasing the entire dataset. 8. Erase Button : This button allows you to delete all the measured data at once, providing a convenient way to clear the entire dataset.
- Page 12 4. You can navigate on your phone while keeping the application open. The AGROSTA 100 BLUE device will remain connected as long as you do not close the application. This allows you to use other functionalities of your phone while maintaining the device connection for seamless data recording and monitoring.
- Page 13 Android/data/com.lak.agrostabm/files Communication with a Windows Computer Step 1: Installation 1. Downloading the App for Windows To communicate with your AGROSTA 100 BLUE device on a Windows computer, you can download the application by following this link: https://agrosta.org/AGROSTA102.zip Step 2: Setting up Bluetooth Communication 1.
- Page 14 Agrosta®100 BLUE 3. Add the AGROSTA 100 BLUE device by clicking on the "Add Bluetooth or other device" button. 4. Follow the on-screen instructions to complete the pairing process between your computer and the AGROSTA 100 BLUE device. 5. After clicking on "AGROSTA100" in the Bluetooth devices list on your computer, you may see a notification stating that the device is ready to use.
- Page 15 2. Look for the COM port indication on the top left corner of the software interface. Each COM port represents a device connection. 3. Identify the COM port that corresponds to your AGROSTA 100 BLUE device. 4. Click on the COM port in the software interface, and then click "OK" twice to confirm your selection.
