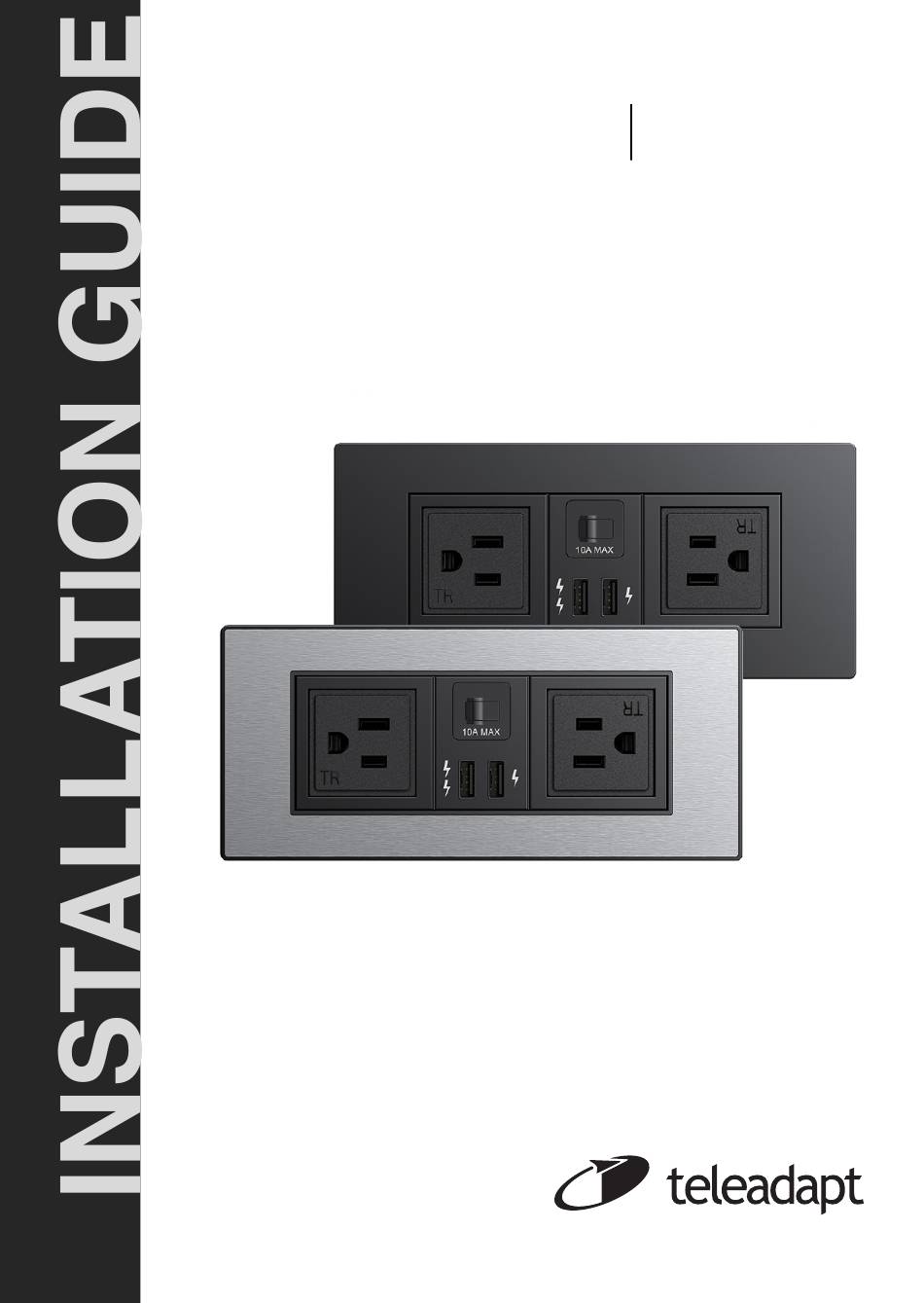

- Page 1 PowerHub E TA-7531US...
- Page 2 Table of Contents Products Covered By This Installation Guide PowerHub E Part Numbers Important Safety Instructions Approval Information What Is Included In The Box Preparation For Installation Installation Additional Information Warranty Contact Details...

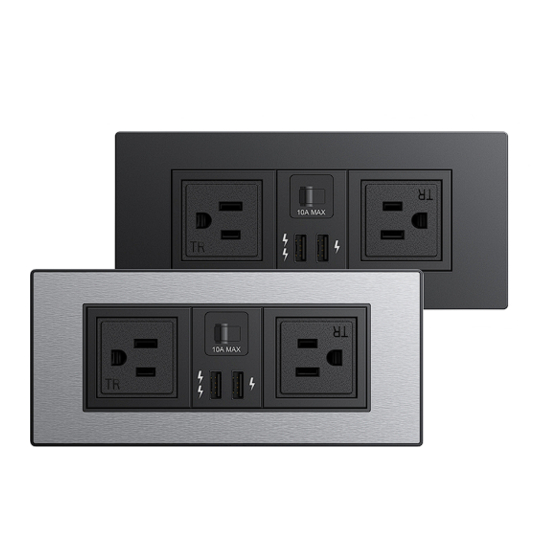

- Page 3 Products Covered By This Installation Guide Important Safety Instructions The TeleAdapt PowerHub E (TA-7531US) is a furniture power • Read these instructions carefully before attempting any distribution unit which provides two tamper-resistant US NEMA installation. Follow all instructions and heed all warnings.
- Page 4 After the cutout is prepared the only tools 4 x Fixing screws you will need are a medium sized cross head screwdriver. 1 x Installation Guide The PowerHub E requires power from a standard 3-pin US 120V outlet. 136mm (max) 5.35in...
- Page 5 Thread the rear power cable through the cutout in the furniture. Step 4 Fitting PowerHub E through the cutout Lean the PowerHub E on the bottom of the cutout in the furniture and push it into the cutout by rotating it slightly Step 5 Additional Information Fasten the 4 cross head screws to fix the PowerHub in the furniture.
- Page 6 If you need to remove the equipment for any reason, first ensure the Americas equipment is disconnected from the mains power source. TeleAdapt Inc Unplug the PowerHub E from the mains supply. 1315 Greg Street Use a medium flat blade screwdriver to release the 2 clips on Suite 110 the bottom of the trim.
- Page 7 Visit our website at: www.teleadapt.com PowerHub E US Installation Guide_06/2023_REV-1.
