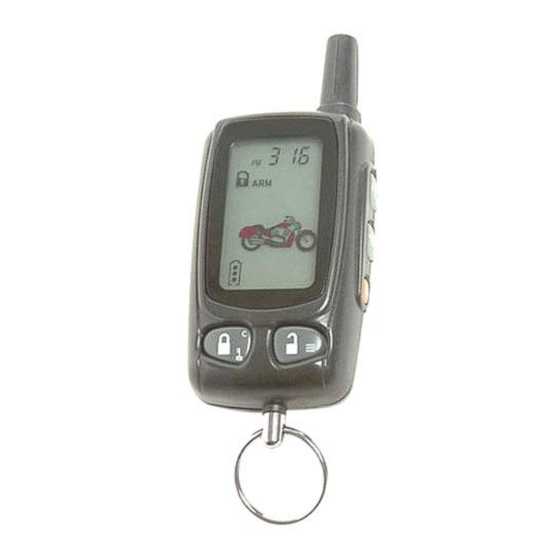

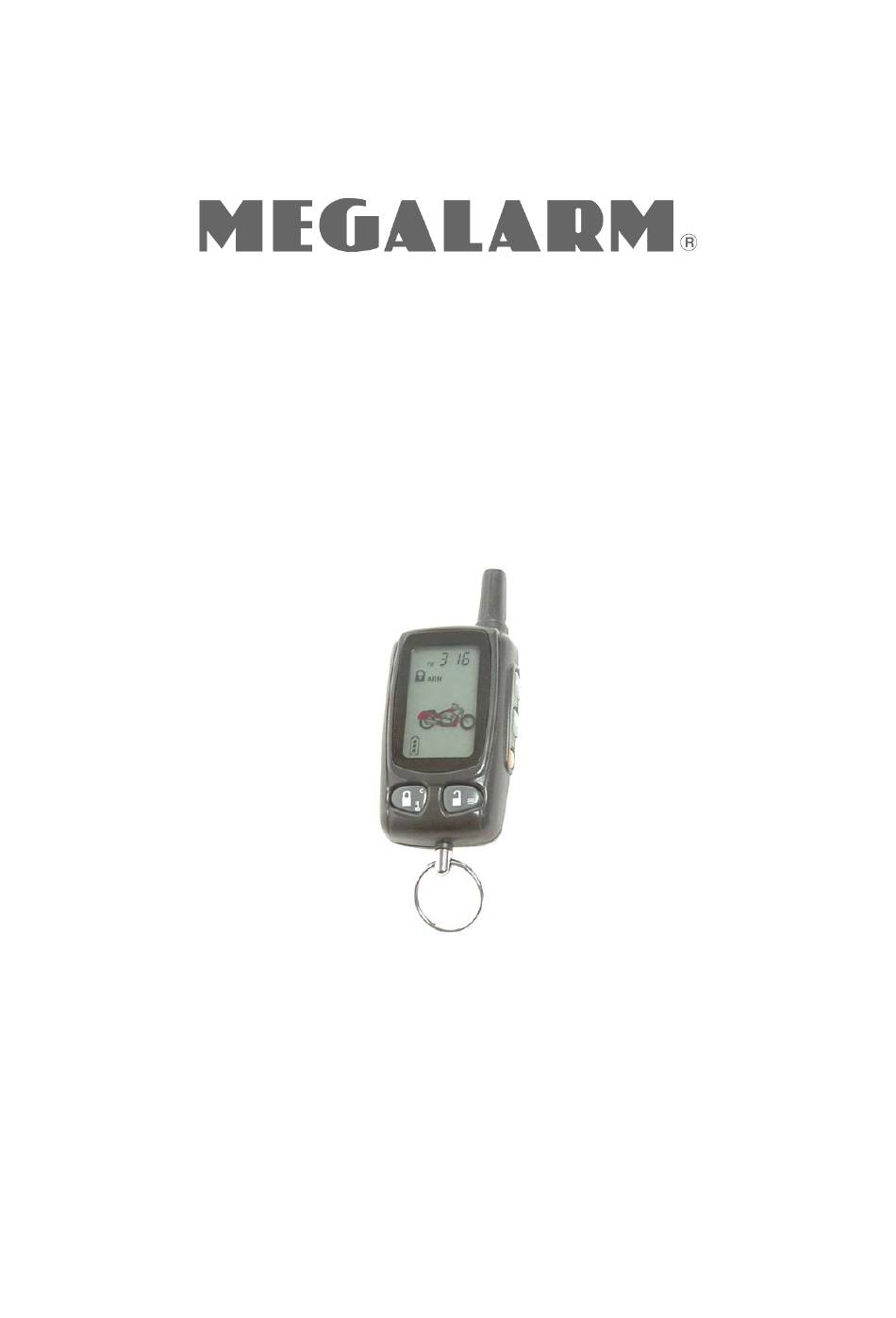

- Page 1 MEGA 3100 2-WAY LCD 4-CHANNEL MOTORCYCLE ALARM SECURITY SYSTEM Installation Manual MEGATRONIX CALIFORNIA, U.S.A. MEGA 3100 INSTALL...
- Page 2 1. Keep the antenna module away from any heat sources or obvious leaks. Also keep the components and harnesses as far from the exhaust as possible. 2. Mount the antenna module in a hidden but accessible location 3. Keep it away from large metal objects or chassis for best reception. MEGA 3100 INSTALL...
-
Page 3: Wiring Diagram
4. Blue Wire: Zone 2 / Ground Instant Trigger 5. Violet Wire: (-) 200mA Timer Control Channel 4 Output 6. Gray Wire: (-) 200mA Timer Control Channel 3 Output 7. Yellow Wire: Zone 5 /To Ignition Switch +12V MEGA 3100 INSTALL... - Page 4 This wire is connected to switched 12 volts source. This wire should receive "12 volts" when ignition key is in the "ON" and "START" position. When the ignition is turned "OFF", this wire should receive "0" voltage. MEGA 3100 INSTALL...
- Page 5 2. Keep it away from any heat sources or obvious leaks. Also keep the components and harnesses as far from the exhaust as possible. 3. Mount the antenna module in a hidden but accessible location 4. Keep it away from large metal objects or chassis for best reception. MEGA 3100 INSTALL...
- Page 6 Latch with Ignition 6 Chirps = 90-second Enable the out of Disable the out of range check range check. Exit: Turn Ignition to 'ON' position, or leave it for 15 seconds. A 3 long chirps to confirm exit. MEGA 3100 INSTALL...
-
Page 7: Password Pin Code Setup
Note: If 20 seconds of inactivity expire, or button on the transmitter is press during of above steps, the unit will exit the program mode and return to the disarmed mode. A 3 long chirps to confirm exit. MEGA 3100 INSTALL... -
Page 8: Return To Factory Default Setting
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MEGA 3100 INSTALL...
