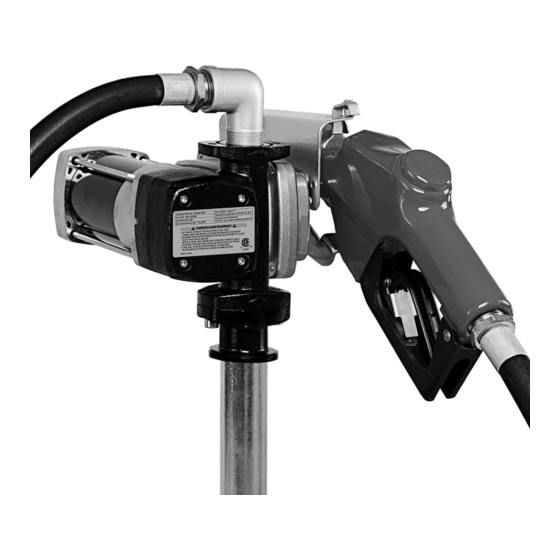

DC/AC Fuel Transfer Pumps
Instruction Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failureto follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 11/22/17
Advertisement
Table of Contents
Summary of Contents for Fuelworks 17530572

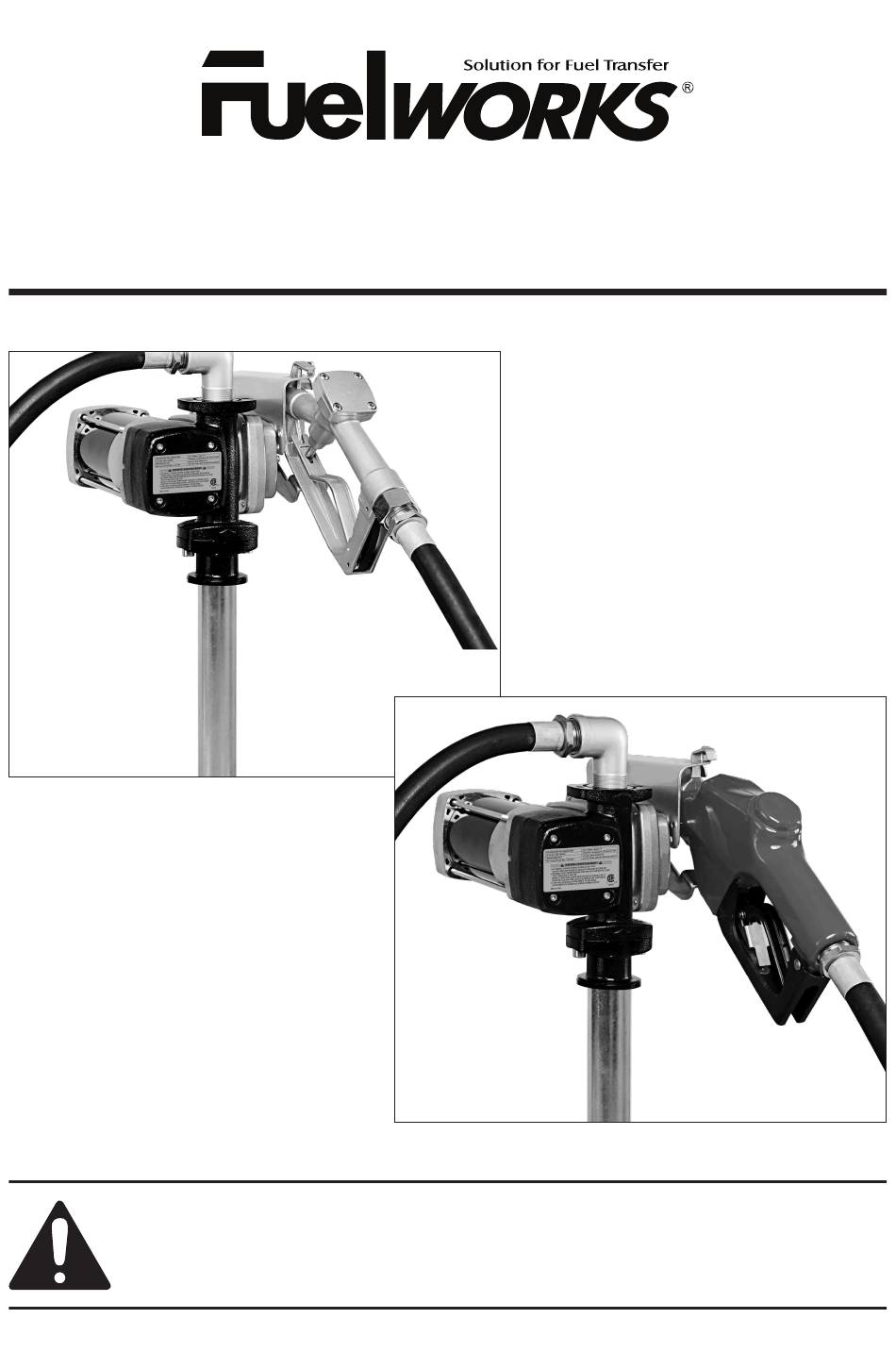

- Page 1 DC/AC Fuel Transfer Pumps Instruction Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failureto follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 2 GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
- Page 3 TECHNICAL DETAILS Electrical Power Flow Rate Item No. Nozzles Pump Model Current Voltage GPM/LPM 10305708A Up to 15/57 Manual 17530572 10307605A Up to 20/76 Manual 17530764 10305709A Up to 15/57 Manual 17530573 10307603A Up to 20/76 Manual 17530763 10305711A 120V...
- Page 4 5. MAXIMUM BY-PASSING TIME: 3 MINUTES. 6. DO NOT RUN DRY OVER 30 SECONDS. 7. Hot surface-to reduce the risk of burns, do not touch. 8. Disconnect circuit before removing cover and enclosure must be closed tightly when circuits are alive. 9.
- Page 5 PROBLEMS AND SOLUTIONS Problem Possible Cause Corrective Action The motor is not Lack of electric power Check the electrical connections and the safety systems turning Rotor jams Check for possible damage or obstruction of the rotating components. Motor problems Contact with the service department Thermal overload protection shut Move ON/OFF lever to the “OFF”...
- Page 6 EXPLODED AND PARTS LIST 9 10 9 10 11 12 27 28 29 30 20 21 22 31 32 24 25...
- Page 7 Part No. Description Q’ty Part No. Q’ty Description Screw Screw Rotor cover Switch Rotor Bracket Vane Bushing Spring Gasket O-ring Gasket Seal Seal Kit Shift folk Discharge hose O-ring Elbow Junction box cover Bypass spring Screw Electric motor Grounded screw Pump chamber Switch bracket Bypass valve...
- Page 8 Intradin (Shanghai) Machinery Co., Ltd. iti-fluid@intradinchina.com www.intradin.com...
