Weigand Keypad / Card Reader

These instructions apply to the following DoorKing products: 1815-247, 1815-248, 1815-249, 1815-250.
When used to control entry through an automated vehicular gate system, the keypad / card reader
must be mounted a minimum of 10-feet away from the gate and gate operator, or mounted in such
a way that the person using the keypad cannot come into contact with the gate or gate operator.
Both the keypad and the card reader output their data in a 26-bit weigand format and must be connected
to an access controller such as the DKS models 1833, 1835, 1837 or 1838. Each device operates
independent of each other.
information.
1 Common (Black)
2 Power (Red)
3
Not Used
4
Not Used
5
Not Used
6 Data 0 (Green)
7 Data 1 (White)
8
Not Used
Gray
Orange
Green
White
Black
Red
P/N 1815-864 REV A 1/12
Please refer to the access controller manual for more detailed wiring
8
7
6
5
4
3
2
1
Black
Red
Green
White
12-24 Volt AC or DC
Power for LED Lights
12-24 Volt AC or DC
Data 0
Data 1
To Access Controller
Common
Power
Keypad OR Card opens door/gate

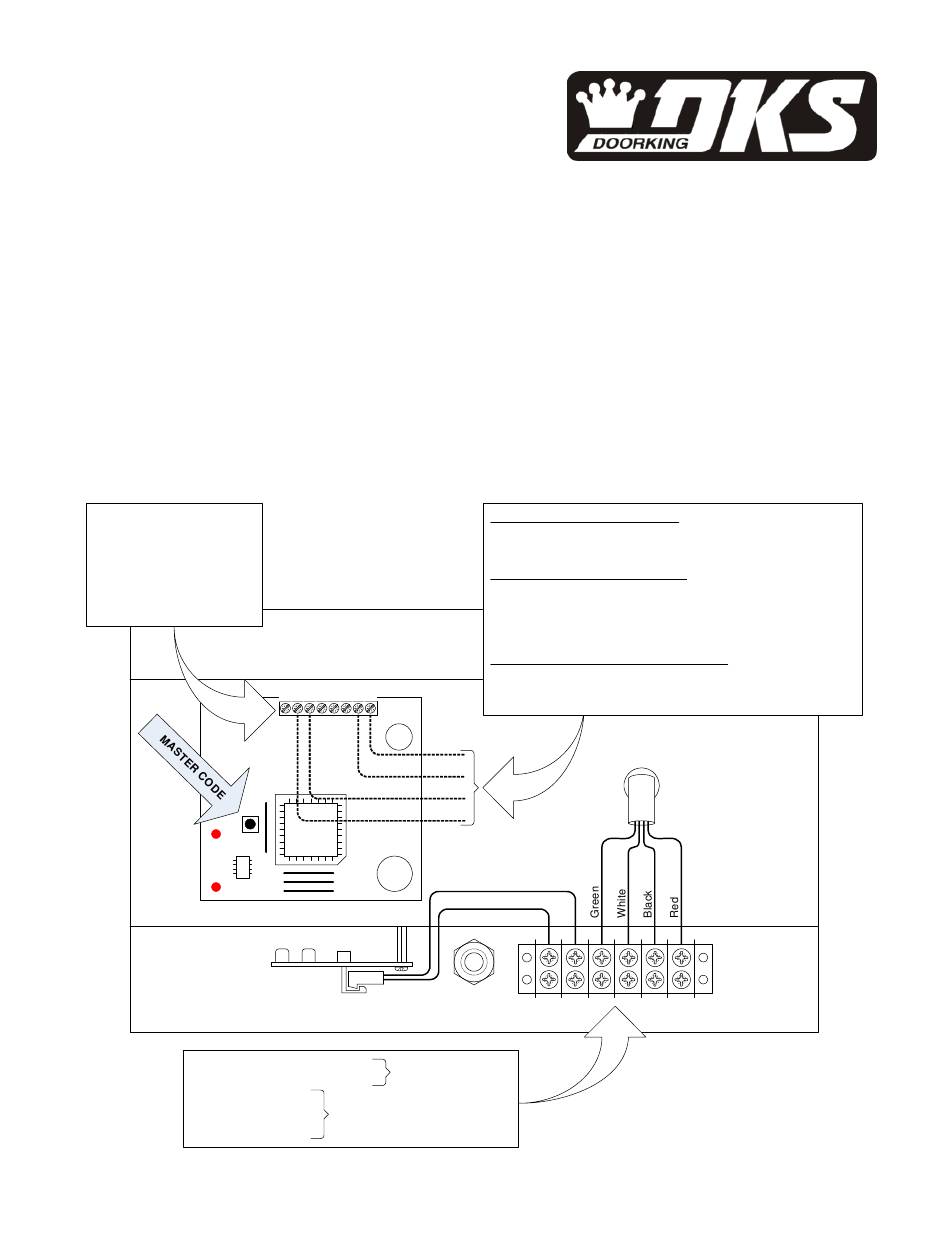

Connect the keypad terminals to the card reader terminals (Red,
Black, Green, White) and then connect to access controller.
Keypad AND Card opens door/gate
Each device must have separate weigand wire runs to the
controller with each device operating a different controller relay .
Relay contacts are wired in series to device to be controlled .
Suggest setting relay strike times to 5 sec.
Keypad / Card opens different doors/gates
Each device must have separate weigand wire runs to the
controller with each device operating a different controller relay .
Relay contacts are wired to individual devices to be controlled .
Orange
Gray
