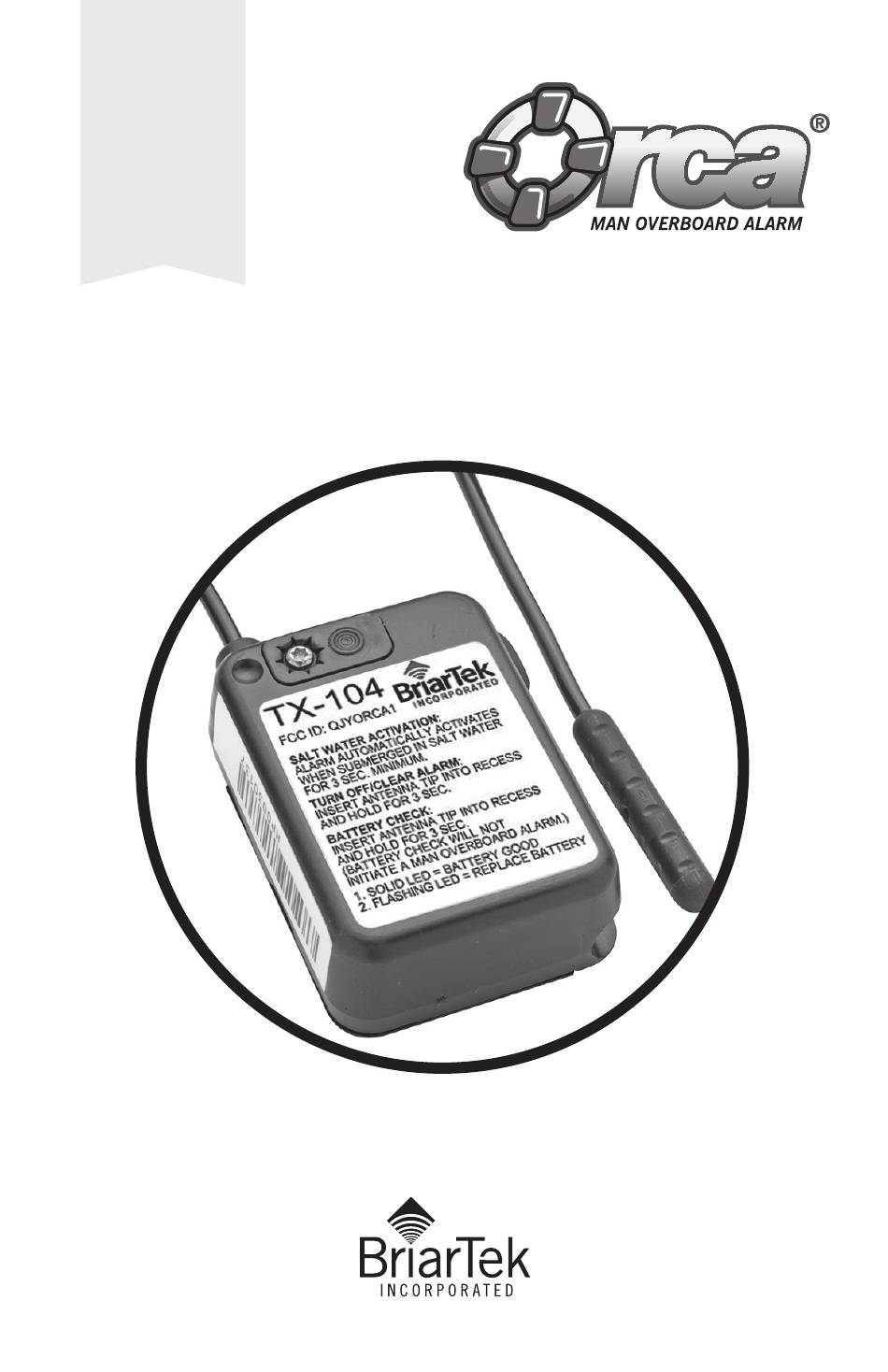

- Page 1 ORCA TX-104 IS A ® MAN OVERBOARD IDENTIFICATION AND TRACKING DEVICE FOR PLEASURE BOATING AND INDUSTRIAL APPLICATIONS ORCA TX-104 and TX-F104 ® Owner’s Manual...
- Page 2 BriarTek, Inc. Technical Support: 703.548.7892 Email: support@briartek.com Web: www.briartek.com...
- Page 3 (MOB) alarm ® system developed by BriarTek Inc. The system is utilized by the U.S. Navy and other mariners to aid in the rescue of an MOB victim. The ORCA system operates ®...
- Page 4 Operating Instructions Manual Activation: Option 1: Release antenna tip (A) from holder and align with manual activation/deactivation recess (B). See figure 2. Option 2: If transmitter is being worn in the blue nylon pouch provided (see figure 3), the transmitter can be manually activated by releasing the securing strap and aligning the embedded magnet with the manual Figure 2...
- Page 5 Battery Information Battery lifespan: The TX-104 and TX-F104 have very low current consumption. It is recommended that the battery is replaced once a year or sooner if the transmitter has been activated for more than occasional testing. When either transmitter is in TRANSMIT mode, a new battery will last approximately 24 hours.
- Page 6 Specifications » Size: length = 2.4 inches (6.1 cm) Figure 8 width = 1.7 inches (4.3 cm) depth = 0.8 inches (2.0 cm) » Weight: 2.5 oz. (70.9 g) » Power: 100 mW » Tracking Range: 2 NM from small craft, 5 NM from ship, 20 NM or greater from aircraft »...
- Page 7 (at its option) for a period of one year from the date the component is purchased. » For an exchange of the product, please contact BriarTek at 703.548.7892 or on the web at www.briartek.com and a customer service representative will provide the necessary instructions.
- Page 8 San Diego, California | Alexandria, Virginia | Norfolk, Virginia | Indianapolis, Indiana Technical Support: 703.548.7892...
