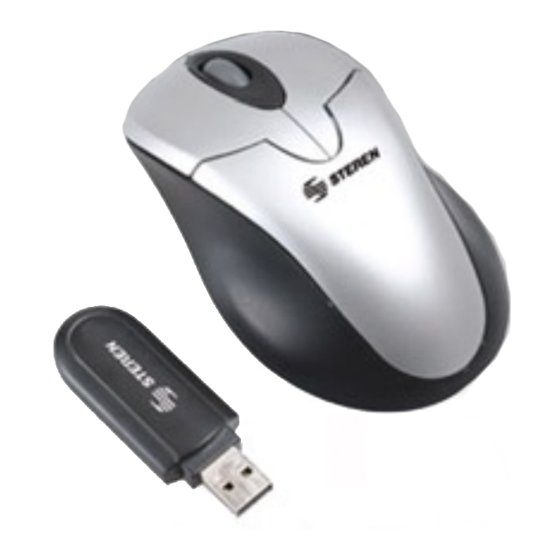

Steren COM-555 - Wireless Optical Travel Mouse Manual

IMPORTANT

Clean only with a soft, dry cloth.
Warranty is void if you try to open the device.
Do not use or store the equipment near wet places.
Check the batteries regularly.
When the equipment will not to be used for a long time, remove the batteries.
Try to use the mouse as closer as possible from the receiver, avoiding a poor performance. Maximum operating distance is 2 metres between mouse and receiver. Do not use the mouse over glasses, mirrors or white surfaces.

FEATURES

• RF wireless system
• Plug & Play
• OS supports: Windows 98, Windows ME, Windows 2000 and Windows XP
• Radio frequency of 27MHz
• 256 ID codes, there's no exist interference between different plugged mice, at the same time
• Drivers are not required

BATTERY INSTALLATION

1. Remove the battery compartment cover located at the bottom of the mouse.
2. Install two new AA batteries or with enough energy into the compartment, paying attention to polarity.

3. Replace the battery compartment cover.

CONNECTING THE RECEIVER

1. Power on your system.
2. Connect the receiver to any available USB port.
3. The computer detects the new device. In Windows XP, the system automatically will install the required drivers. In other systems may run the Found New Hardware Device assistant, follow the instructions. The required drivers are already on Windows OS.

SETUP PROCEDURE

1. Move the mouse close to the receiver.
2. Push the Connection button in the receiver.

3. Press and hold the Connection button located underneath the mouse, for 5 seconds. Please use a pointed object. The indicator LED in the receiver will flash quickly. After few seconds the indicator LED in the receiver will stop, indicating your mouse is correctly configured.

4. Your mouse is now ready for use.
5. To set mouse options, click Control Panel / Mouse to customize your mouse settings.

SPECIFICATIONS

Mouse

Input:	3V
Dimensions:	120 x 40 x 63mm
Weight:	84g

Receiver

Input:	5V
Dimensions:	70 x 23 x 14mm

Carrier frequency: 27MHz
Power transmission: 0,5mW
Code´s number: 256
Operating temperature: 0-40°C
Relative Humidity: 5-80% (No condensed)

Product design and specifications are subject to change, without notice.
