Summary of Contents for FAME DPP-61
- Page 1 DPP-61 03/2023 KEY0005569-000 USER MANUAL...

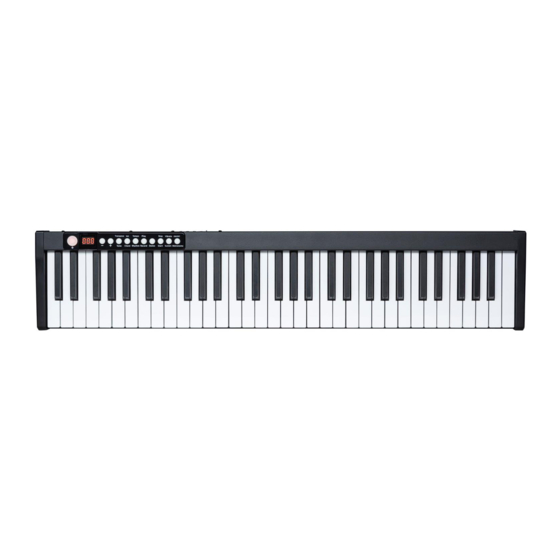

- Page 2 Intended use: The FAME DPP-61 is a digital home keyboard, designed to play sounds on the keyboard and make them audible through built-in speakers or headphones. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
- Page 3 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
- Page 4 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not apply excessive force to the switches or controls.
- Page 5 Hint! (Interferences with other electrical devices) Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
- Page 6 CLEANING A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.
-
Page 7: Rearside & Panel
REARSIDE & PANEL Charging indicator 1. When the piano is connected to the USB port for charging, the red light comes on. When the battery is full, the green light turns on and the red light turns off. When the charge is high or full, it is normal for the charge indicator light to flash or go out when the instrument is charged via USB. - Page 8 Connection for the charger and MIDI/USB interface. MIDI function The micro USB data cable connects the DPP-61 to a computer. The music software used (e.g. a DAW) should recognise the instrument in the settings and suggest it as an input device. After selection and confirmation, the DPP-61 is available for note...
- Page 9 FUNCTIONS Built-in stereo speakers with 2x 2 watts Sound effects: Two types of sound variation are built in: sustain / vibrato. By pressing the button for a longer time, you can switch between the two modes. Display: Shows the function currently in use Demo: 15 Demo Songs Jockey Club Mighty division...
- Page 10 TABLE OF SINGLE FINGER CHORDS...
- Page 11 FUNCTIONS Tone / Transpose 1. Briefly press the TONE button to select one of the 128 tones (see appendix). Initially [tnE] appears in the display, with the +/- keys you can select the appropriate sound in any sequence. 2. By long pressing you reach the transpose function, a double beep sounds and [P00] appears in the display.
- Page 12 FUNCTIONS Recording & Playback 1. A long press will sound a double beep; a short press will sound a single beep. 2. Long press the RECORD button until [REC] appears in the display to enter the recording mode. Start playing to begin recording. The maximum recording capacity is 700 notes.
- Page 13 TONE-LIST T000 T032 Acoustic Grand Piano Acoustic Bass T001 T033 Bright Acoustic Piano Electric Bass (finger) T002 T034 Electric Bass (pick) Electric Grand Piano T003 T035 Honky-Tonk Piano Fretless Bass T004 T036 Rhodes Piano Slap Bass 1 T005 T037 Chorused Piano Slap Bass 2 T006 T038...
- Page 14 TONE-LIST T064 T096 Soprano Sax FX 1 (rain) T065 T097 Alto Sax FX 2 (soundtrack) T066 T098 Tenor Sax FX 3 (crystal) T067 T099 Baritone Sax FX 4 (atmosphere) T068 T100 Oboe FX 5 (brightness) T069 T101 English Horn FX 6 (goblins) T070 T102 Bassoon...
-
Page 15: Rhythm List
RHYTHM-LIST R000 60's RockN R032 16 Beat Shuffle R001 Standard Rock R033 Twist R002 Brit Rock Pop R034 British Pop 1 R003 60's Vintage Rock R035 British Pop 2 R004 Chart Rock Shfl R036 Hard Rock 1 R005 60's Pop Rock R037 Hard Rock 2 R006... - Page 16 RHYTHM-LIST R064 Schlager Rock 1 R096 Slow Rock 1 R065 Schlager Rock 2 R097 Slow Rock 2 R066 Fox Trot R098 Slow Rock 3 R067 Viennese Waltz R099 Slow Soul R068 Tango 1 R100 8 Beat Adria R069 Tango 2 R101 Classic Piano R070...
