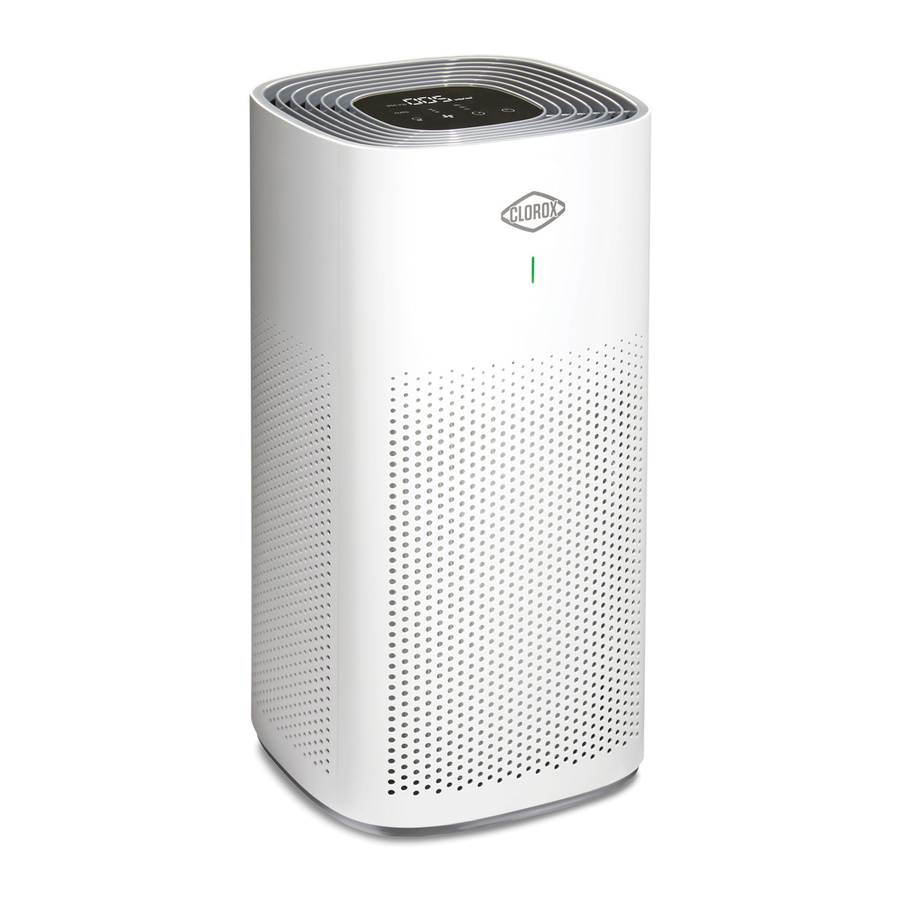

CLOROX 11010, 11011 - Large Room Air Purifier Manual

Parts and Features

1. Control Panel
2. Air Quality Indicator Light
3. Adapter
4. Plug End of Adapter

5. Bottom of Air Filter with Handle
6. ON/OFF Button ( )
7. Adapter Opening

8. Removable Air Filter Cover with Latch and Tabs

To order parts, visit: cloroxhomeappliances.com

Particulates that are 2.5 microns or smaller can be inhaled and cause irritation, particularly to the lungs. Particles of this size are invisible to the naked eye and can only be seen using a microscope. The PM2.5 sensor measures the quantity of the particulate matter in the air at 2.5 microns (μg/m3) or smaller.

This Air Purifier has 6 air quality ratings, based on the PM2.5 matter in your environment. These ratings provide an accurate indication of indoor air quality. When set to AUTO mode (recommended), the Air Purifier automatically adjusts fan speed to circulate air to clean and improve air quality. To learn more about air quality, visit: https://www.epa.gov

Control Panel

• ON/OFF Button ( ): Press to turn unit on or off.
• Light ( ): Press to select desired Control Panel and air quality light brightness: On, Dim, or Off. For a quick look at the Control Panel when the lights are off, touch the Fan ( ) Speeds button once. The Control Panel will turn on for 30 seconds and then will automatically turn off.
• Fan ( ) Speeds: Speeds range from AUTO to l–llll.
• Time ( ): Select from 1, 4, or 8 hours hours on non-Alexa enabled model. Set a routine in the Alexa App for Smart model. If no time is selected the Air Purifier will run continuously.
• Screen Lock Feature ( ): Prevents unintended changes to the function of the Air Purifier. To activate, press and hold Fan ( ) Speeds button until it beeps and white lock symbol comes on in top left corner of Control Panel.
• WiFi-Connect ( ): On Alexa enabled model.
• Check Filter Light ( ): Illuminates red when filter should be checked.

How to Use

1. Place Air Purifier on a level surface.
2. Plug Adapter into Adapter Opening on back of Air Purifier and plug into outlet. You will hear one beep and the Air Quality Indicator Light will illuminate, then go off.
3. Press to turn on. Air Quality Indicator Light on front of Air Purifier will illuminate different colors as PM2.5 sensor evaluates air quality. Once complete, color will reflect current air quality. See chart for air quality levels.
4. Press Fan ( ) Speeds button to select AUTO or desired fan speed.
   AUTO mode automatically adjusts fan speed according to air quality based on PM2.5 sensor.
   AUTO mode is recommended for daily use.
5. Use Light ( ) button to customize the Air Purifier for sleep or everyday use.
   NOTE: Air Purifier safety feature: unit will turn off automatically if tilted or knocked over.

Recommended Air Purifier Usage:
Set it and forget it! For optimal air quality it is recommended to set Air Purifier to AUTO mode. This will allow Air Purifier to continuously clean the air and will adjust fan speed automatically when there are changes to the air quality.

NOTE: Whenever Air Purifier is moved to a different location and unplugged, WiFi will need to be manually started on Air Purifier display. Select "Add Device", Select "Air Purifier" from the list and select Clorox brand and your model number.

Cleaning

*(Once per Month; More if Necessary)

Electrical Shock Hazard.
Do not immerse unit in water or other liquid.

6. Press to turn off and unplug.
7. To remove Air Filter: Unplug Adapter from bottom and turn Air Purifier upside down.
8. Locate Filter Cover and slide Latch towards the center of Cover. Tilt up to remove Air Filter Cover.
9. Holding Air Filter Handle, lift Filter straight up to remove. Use a vacuum cleaner with a brush attachment to remove any lint or debris from outside of Air Filter and the inside of the Air Purifier with Air Filter removed.
10. To clean the outside of the Air Purifier, wipe with a damp cloth or use a vacuum cleaner with a brush attachment to remove lint or debris.
    NOTE: Do not use detergent, solvents or spray cleaner on any part of the Air Purifier or Filter.

To Replace Air Filter

NOTE: Check Filter Light ( ) illuminates red when Filter should be checked, after approximately 4,380 hours of use. Depending on how often you use the Air Purifier, the Check Filter Light ( ) should come on after around 6 months of use. You may not have to replace the Filter at this time, but you should check it, and if the Filter is visibly clogged or if you have noticed a reduction in performance, it is time to replace the Filter. It is recommended to replace at least every 6-12 months. You may need to replace your Filter if you notice decreased air flow, smell, or a visibly clogged Filter.

To remove Filter:

1. Press to turn off, and unplug.
2. Unplug Adaptor from bottom and turn Air Purifier upside down.
3. Locate Filter Cover and slide Latch towards the center of Cover. Tilt up to remove Filter Cover.
4. Holding Filter Handle, lift Filter straight up to remove. Discard used Filter.

To replace with new Filter:

1. Make sure unit is off and unplugged.
2. Remove plastic from around new Air Filter.
3. Holding Filter Handle, slide straight down into bottom of Air Purifier.
4. Holding Filter Cover close to the Latch, tilt and slide Tabs into back of Filter Cover opening.
5. Press down on opposite end of Filter Cover and latch into place.
6. Reset Check Filter Light ( ), then press and hold Light ( ) button until it beeps and Check Filter Light ( ) is no longer illuminated.

Storage: When not using the Air Purifier for an extended period, it is recommended to wrap the Filter and the unit in a plastic bag and place in a cool, dry area. Avoid moisture as it can damage the True HEPA filter.

How to Connect to Alexa

NOTE: Applies only to Clorox Smart Large Room Air Purifier (model # 11011).

1. Download Alexa App from Apple App Store or Google Play Store.
2. Plug Air Purifier into outlet. WiFi LED will flash for 5 minutes or until connected to WiFi through Alexa App.
3. In Alexa App, select "devices" icon in lower right corner. Next, click "+" icon in top right corner. Select "Air Purifier" from list and then select Clorox brand. Follow on-screen instructions to connect to WiFi.
4. Once setup is complete and the WiFi LED is solid red, indicating the device is now online, you can activate remote commands. Press the WiFi-Connect ( ) button again to turn it blue, indicating that the Air Purifier is ready to use remote commands.

NOTE: French and Spanish language commands may not be available.

How to Erase WiFi Profile Press WiFi-Connect ( ) button and Light ( ) button at the same time for 10 seconds. Two WiFi LEDs will flash red and turn off, indicating WiFi credentials have been erased. You may also unregister Air Purifier through the app via Alexa App settings page. Supports routers with WEP, WPA, WPA2 802.11 b/g/n 2.4 GHz. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

Troubleshooting

• Air Purifier turned off.
  Unit will turn off automatically if tilted or knocked over.
• Increase in noise level.
  • Check Air Filter. Ensure Air Filter is in correct position.
  • Air Filter isn't clean. Replace with new Air Filter.
  • Check Air Filter for damage. If damaged, replace with new Air Filter.
• Check Filter Light ( ) on display is illuminated.
  Replace Air Filter and reset the counter. Press and hold Light ( ) button until it beeps to reset.
• Air quality status remains poor and Air Quality Indicator Light is red.
  Increase Fan Speed to increase air circulation. If Light remains red, replace with new Air Filter.
• WiFi-Connect is not connected.
  • Make sure Air Purifier is plugged into an outlet.
  • Check WiFi signal. If available, connect to WiFi.

• Flashing red WiFi LED Light.
  Register Air Purifier with app. See "How to Connect to Alexa" section.
• Two red flashing WiFi LED Lights.
  WiFi connection has been lost. If lost more than 1 hour, WiFi LED Light will turn off; Air Purifier will automatically reconnect when connection is available. Connection loss can be due to router power loss, password change, or loss of internet
• Lost voice commands.
  WiFi LED Light must be blue to accept remote commands. Press and release WiFi button to change LED Light to blue and to allow voice and app commands.
• Error Codes on Display.

• E0: Please contact our Customer Service Department.
• FFF: Please contact our Customer Service Department.

The Clorox name and logo are trademarks of Hamilton Beach Brands and are used under license by Hamilton Beach Brands, Inc.

Scan to visit: cloroxhomeappliances.com
