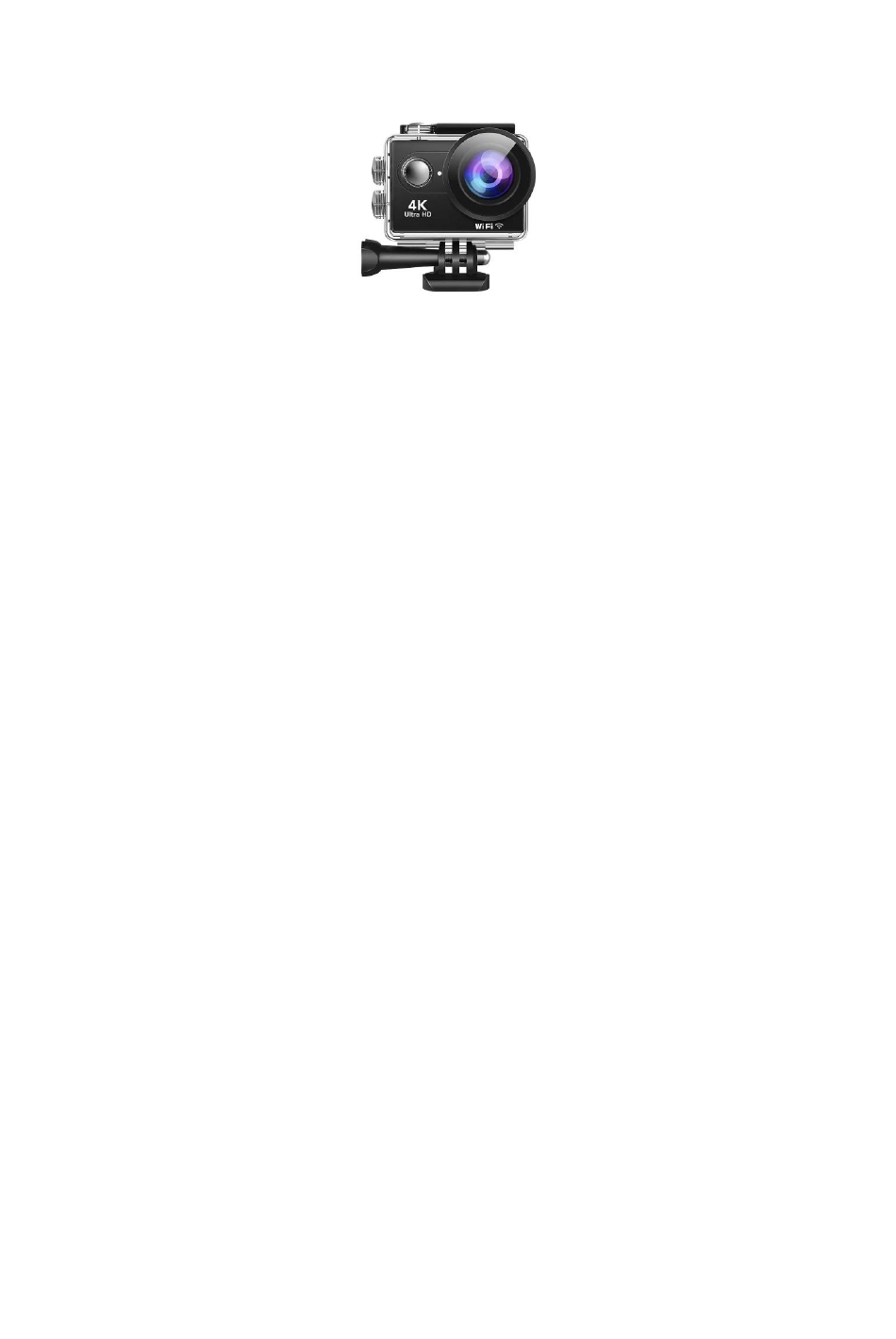

Sport Camera -H9R
User Manual
CAUTIONS
- This is a 4K action camera, It is normal for the housing to exert heat under use.
- Don´t expose the product directly to high temperatures over 40°C.
- Please peel off Transparent protective films on lens and screen of camera before using.
- Please properly protect well the lens and screen of camera after using.
- Keep it safe from falling and dropping.
- Keep it distance from any strong magnetic interference objects like electrical machine to avoid
strong radio waves that might be damaging the product and affect the sound or image quality.
- In case of overheating, unwanted smoke from the device, unplug it immediately from the power
outlet to prevent hazardous fire.
- Keep it safety from children while on charging
Tips
- Verify the camera is in Video Mode, Press and hold the Up Button to turn on/off Wi-Fi.
- Verify the camera is in Video Mode, Press quickly the Down Button to turn on/off remote.
- Verify the camera is in Photo Mode, Press and hold the Up Button or Down Button to Zoom
in/out.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H9R and is the answer not in the manual?

Questions and answers

Summary of Contents for tekkiwear H9R

  • Page 1 Sport Camera -H9R User Manual CAUTIONS - This is a 4K action camera, It is normal for the housing to exert heat under use. - Don´t expose the product directly to high temperatures over 40°C. - Please peel off Transparent protective films on lens and screen of camera before using.

  • Page 2: Getting Started

    THE BASIC 1. Mode / On-Off Button 2. Shutter / Select Button 3. Status indicator light 4. USB port 5. SD card slot 6. Mini HDMI out 7. External MIC input 8. Lens 9. Charging status light GETTING STARTED HELLO Welcome to your new camera.

  • Page 3: Overview Of Modes

    - Please format the micro SD, micro SDHC and micro SDXC memory card on the camera before using. - Please insert the memory card in correct way . if not , the card slot maybe damage by the wrong way. - To keep your micro SD card in good condition, reformat it on a regular basis.

  • Page 4: Video Setting

    VIDEO SETTING - Video Resolution: 4K 60fps (3840.2160) / 4K 30fps (3840.2160) / 1080P 120fps (1920.1080 ) 1080P 60fps (1920.1080) / 1080P 30fps (1920*1080 ) / 720P 240fps (1080.720 ) Default setting is 4K 30fps. Note: - When capturing video at high resolution or high frame rates such as 4K 60/30fps, the camera may become hot and consume more power, which is normal.

  • Page 5: Photo Setting

    - FAT32 format Micro SD card stops recording when the storage of each file is over 4 Gb and starts to record again on a new file. - If you select Loop Video, EIS, Time-lapse Video, TL Duration, Slow Motion and Auto Low Light will not be available automatically.

  • Page 6: System Setting

    - ISO: Auto / 100 / 200 / 400 / 800 / 1600 / 3200 Default setting is Auto. ISO determines the camera' s sensitivity to light, and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image. low light, higher ISO values result in brighter images, but with greater image noise.Lower values result in lower image noise, but darker images.
  • Page 7 - Shutter On / Off Sets the camera's shutter sound. - Boot-up: On /Off Sets the your camera's power on sound. - Beep: On/Off Sets the camera's operation sound. - Volume: 0/1/2/3 Sets the volume of your camera, record sound. - AE Meter: Center / Multi / Spot Default setting is Center .

  • Page 8: Video Mode

    • Driving Mode: Off/On, If you turn on car mode and connect camera with car charger, the camera will turn on automatically and start recording if you start your car´s engine and the camera will turn off and stop recording if you Turn off the car' s engine. Note: Must use a 5V 1A output car charger.

  • Page 9: Photo Mode

    - This camera automatically stops recording when the battery is out of power. Your video will saved before the camera powers off. The video will not be saved, and even the video will be damaged, if the battery is took out or loss power during recording. - Due to the battery's characterittics and environmental temperature requirements, such as high temperatures can cause the battery to expand.

  • Page 10: Playing Back On Tv

    4 . To return to the file list, press Mode Button. 5 . To exit the Playback mode, press Mode Button again. PLAYING BACK ON TV 1 . Turn on the TV 2 . Connect the Mini HDMI end to the port on camera and HDMI end to HDMI port on the TV 3 .

  • Page 11: Charging The Battery

    6. If you select "Yes" , then Press Shutter Button to delete the file you want if you select - No" , then Press Shutter Button to back the playback mode. BATTERY The camera contains sensitive cornponents, including the battery. • BATTERY STORAGE AND HANDLING - Do not store in temperature above 140°F/60°C.
  • Page 12 lithe battery reaches 0% while recording, the camera saves the file and powers off. To maximize battery life, follow these guidelines when possible: - Turn off Wireless Connections - Capture video at lower frame rates and resolutions - Use Screen Saver setting. Wi-Fi APP The Wi-Fi App lets you control your camera remotely using a smart phone or tablet.
  • Page 13 5. Open the app "iSmart DV" on your smart phone or tablet 6. Tap “Add new camera” 7. Tap “Wi-Fi connect” Note: Press “Up Button” for any seconds again to turn off the Wi-Fi DOWNLOADING AND SHARE YOUR CONTENT 1. Open the -iSmart DV- app. 2.

  • Page 14: External Mic

    your phone, please tell us your phone' s model and system version information, we will in the first time synchronize your phone. - If you find your phone can not connect the camera's WIFI, please confirm that your connection is correct, if yes, and still can not connect Please delete the Wi-Fi SSID of the camera in your phone Wi-Fi setting and reconnect.
  • Page 15 Way2: In the Video mode, press the Down Button for seconds to turn on/off the 2.4G remote controller quickly. Video To start recording: Press the Video Button. To stop recording: Press the Video Button again. Photo To take a photo: Press the Photo Button. NOTES: - Verify the camera is in Video/Photo Mode first, if the camera is set in Playback or Setting Menu, the camera can not be controlled by the remote.

  • Page 16: Waterproof Case

    Step 5: Install all 4 screws back onto the PCB board. Step 6: Install the 4 screws back into the cover. WATERPROOF CASE Specially designed for diving, surfing, snorkeling and other water sports activities. The waterproof case does not only offer greater waterproof protection to your camera, it also offers extra protection against dust, scratches and shocks.
  • Page 17 1) Find the slot of the waterproof case as circled place. 2) Hold the case with your hands, pull the waterproof back cover off. 3) Insert the lower half of the dust-proof backdoor in the slot, then push the upper half into the slot until the whole backdoor being totally installed NOTES: - In order to capture a clear video or photo, please tear off the lens protection film of the...
  • Page 18 Attach your camera to helmets, gear and equipment. The following assembly methods are for reference only! Notes: - Our standard accessories are the basic version. If you need different types of accessories, you need to purchase them separately. - With different types of accessories, the camera can be used in different occasions. Please purchase different types of accessories kit according to actual needs.
