- Page 1 ENGLISH FAME Hybrid Pro Sound Module DRU0039596-000 / DRU0039078-000 / DRU0040488-000 02/2023 11/2020 Users Manual...
- Page 2 FAME Sticker Intended use: The product FAME Hybrid PRO sound module was designed for use as an external electronic sound generator for drums. By connecting drum pads or drum triggers, an artificial drum sound is simulated in various forms and optionally played back via headphones or external speakers. The device may only be operated for this purpose and in accordance with the operating instructions.
- Page 3 Please note: These instructions are generally valid for the Fame Hybrid Pro Module and describe the functions in full. With the Fame Hybrid Pro e-drum set, you may not be able to use all functions to the full, because you may have to use pads from other manufacturers, for example.
- Page 4 The same applies to storm conditions such as thunderstorms, floods, etc. HINT! (Use of racks - when purchasing DRU0039078-000 /FAME Hybrid Pro) As soon as the device is mounted on a rack, always ensure that it is securely and firmly fixed in place.
- Page 5 ENGLISH following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Symbols on device and packaging: The lightning flash symbol warns the user about non-insulated current and the risk of electrocution...
-
Page 6: Table Of Contents
ENGLISH Table of Contents 9. PROGRAMM Menu....……..….p. 39 1. Main Features / Introduction......p. 7 9.1 PROG........p. 39 2. Basic Know-How.........p. 9 9.2 EQ...........p. 40 2.1 Operation........p. 9 9.3 ACMP........p. 41 2.2 Menu Structure......p. 10 9.4 KFNC*........p. 43 2.3 Drag&Drop (USB Modus).....p. 10 10. -
Page 7: Main Features / Introduction
ENGLISH 1. Main Features / Introduction Thank you for choosing a FAME Hybrid PRO sound module. You have made the right choice. Your new instrument offers you first-class sound quality and maximum flexibility. The FAME Hybrid PRO sound module has an open sound architecture and offers you 12 independent trigger channels, 4 audio outputs and 4 GB sound memory. - Page 8 The FAME Hybrid PRO sound module provides you with 4 GB of sound storage with 100 memory locations, 40 of which are empty, i.e. user kits. With the FAME Hybrid PRO all kits are pre- configured from the factory and can still be changed and saved according to your wishes. Of course you can also rename and re-sort the kits, which makes them easier to access and handle on stage.
-
Page 9: Basic Know-How
ENGLISH 2. Basic Know-How 2.1 Operation The operation of the module is simply structured and is done intuitively via 5 menu items (MIXER- UNIT/PROGRAM/CHANNEL/SOUND/SPECIAL) with various sub-pages. These sub-pages can be selected in sequence by pressing the PAGE UP or PAGE DOWN buttons respectively. There are no second levels and no hidden menu items. -
Page 10: Menu Structure
2.3 Drag & Drop (USB Modus) If you connect the FAME Hybrid PRO to your computer (PC or Mac) via USB and start it in USB mode, it will be recognised and displayed as a "normal" memory drive. The module now behaves exactly like an external USB hard drive or card reader. - Page 11 ENGLISH Fame Hybrid Pro module, it is recommended not to use long folder names and not to create too many layers for the sake of clarity. On the main level you will find the following files: HybridPro-Pad_set.dkit: User KIT Bank; your personal KIT and UNIT settings are stored in this file.
-
Page 12: User-Kit-Bank And User-Kit-File
A and an optional control signal (HH Control, Bell Control) to socket B. Trigger-Channel: The FAME Hybrid PRO offers connection possibilities for up to 12 pads (drum channels). A total of 12 independent trigger channels are available. -
Page 13: Connection
OUT 1 to 4 Connect the input of your mixing console or amplifier to the FAME Hybrid PRO. The outputs OUT1 and 2 are factory set to reproduce the complete mix signal as a stereo sum. Outputs OUT 3 and OUT 4, however, contain the respective BUS signal. - Page 14 LINE IN: Connect an external sound source here. You can use a stereo cable (e.g. from your smartphone) or a mono cable if you want to hear a live monitor signal via the FAME Hybrid PRO. If you connect a mono cable, the audio signal only sounds "centred" if you select "Mono" in the MIXER- UNIT menu on the OUT page.
-
Page 15: Control Elements

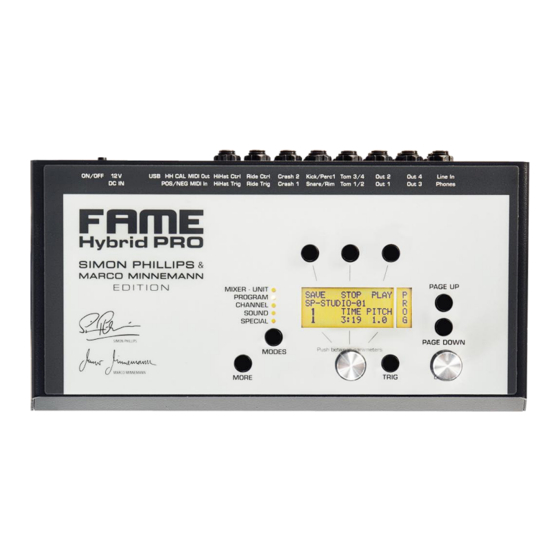

ENGLISH 4. Control Elements MODE With Mode you scroll through the different modes, the selected mode is indicated by LED. TRIG Press the TRIG button to hear the sound of the selected channel. MORE You need the MORE button for additional functions and operating steps (e.g. UNDO/REDO. With the aid of the MORE button, you can, for example, call up the last visited edit page in the menu. - Page 16 LEVEL control in the menu, so that your signal is always output with fixed amplification. Display The display of the FAME Hybrid PRO can show up to 6 parameters. Usually these are three below the DATA buttons and three above the DATA knob. The name of the parameter is in the upper row (see example: SOUND, LAYER, VOICE, ATTACK, HOLD, DECAY) and the value to be edited is below (see example: ATTACK = .003).
-
Page 17: Hi-Hat Setup & Calibration
These instructions are valid for off-brand hi-hat pads and fine tuning: The hi-hat is the most complex instrument in a drum setup. The FAME Hybrid PRO offers you the greatest possible flexibility to use as many hi-hat pads and controllers as possible from different manufacturers. - Page 18 ENGLISH Press the left DATA button a second time. The symbol of an open hi-hat appears and flashes. Now open the hi-hat pad and take your foot off the pedal accordingly. Press the left DATA button a third time to complete the calibration. The display shows "done".
-
Page 19: Menu Structure
You can invest a little time in these settings. You will be amazed how natural the playing behaviour of the FAME Hybrid PRO module will be afterwards. HCAL: Make the settings adjustments for your hi-hat here and calibrate the pad. A detailed explanation can be found in this manual. - Page 20 ENGLISH Programme Menu PROG: On the programme start page you select the desired kit and can start the internal metronome or song player accordingly. EQ: A 3-band EQ is available per kit. This can be used for all instruments or just one channel. ACMP: On the internal player page, you can select whether you want to play to a playback song or a metronome.
-
Page 21: Saving
ENGLISH 7. Saving Any changes you make to the module can of course be saved. Important: Please first activate the memory function in the MIXER-UNIT-PREF menu once. Switch the function to "on" by pressing the left DATA button. Save a kit If you have made changes to a programme page and want to keep them permanently, you must save the modified kit. - Page 22 ENGLISH You can choose between upper and lower case letters, numbers and various special characters. You can select the desired letter with the knob (KEY flashes) or insert a space by pressing the knob while holding down the MORE key. Press the knob without holding down the MORE key to switch to the CUR parameter.
- Page 23 ENGLISH Canceling the SAVE process To cancel the save operation and exit the SAVE menu, simply press the MODE button. The changes you have made will be retained, as shown by the "?" next to the SAVE menu item, but will not be saved.
-
Page 24: Mixer-Unit Menu
Changes in the MIXER-UNIT menu are saved on the MIXER-UNIT start page (see SAVE below) 8.1 MIX The Fame Hybrid Pro includes a mixer that allows you to adjust the volume of the individual drum channels. There are eight FADER groups at your disposal, whose volume you can control individually. -
Page 25: Trig
The parameters on this page are especially important if you want to connect pads of other manufacturers or acoustic triggers to the Fame Hybrid Pro module. TYPE: Here you set the trigger type you have connected to the respective drum channel. The individual types contain different trigger parameters optimised for the pad type in question. - Page 26 ENGLISH Zones - configuration Type Brands (examples) Information Head/ Rim/ Cross-stick/ Choke Edge Bell PadPP 2box, Roland Piezo Piezo PaPSS Huaxin Piezo Switch Switch PaPSY Yamaha Piezo Switch Switch PadPS Roland, Alesis Piezo Switch various CyPSV 2box Piezo Switch Velocity CyPSB Roland Piezo...
- Page 27 ENGLISH XTALK: You can use this function to prevent unwanted trigger pulses (crosstalk) from other pads. For example, if a hard cymbal beat triggers a tom sound, you can suppress the latter. To do this, select the channel that sounds unwanted (in our case: Tom) and change the XTALK value. The following parameter values are available: Off (function off), Low (low suppression), Med (medium suppression), High (maximum suppression).
- Page 28 ENGLISH Max2: A fixed signal strength of 0 dB is generated regardless of the strength of the impact. Max1: Like Max 2; but with a fixed signal strength of -6 dB. Pos2: The signal strength increases faster in relation to the strength of the stroke. However, the signal strength increases less at high velocities, i.e.
-
Page 29: Hcal
ENGLISH 8.3 HCAL (this menu is only available if the hi-hat channel is selected in the CHANNEL MENU) On this page important settings for the hi-hat are configured. CALIB: In this menu you can calibrate the hi-hat, i.e. adapt it to your playing style. Due to the importance of this topic we have dedicated an extra chapter to it. -
Page 30: Hset
ENGLISH 8.4 HSET HHPOS: With this value you can set the opening position of the hi-hat. This setting affects all kits. If you change this value, the HH controller loses its function globally. This function is useful if you do not have a hi-hat controller and want a fixed opening position continuously. -
Page 31: Intf
ENGLISH 8.6 INTF* On this page you configure the global routing and MIDI settings for each individual trigger channel. Here you determine to which BUS the respective signals should be routed and with which settings you can control the individual channels via MIDI. ZONES: Here you can see how many (sound) zones are assigned to the trigger channel. - Page 32 The hi-hat also generates a NOTE ON and NOTE OFF signal when zones 4 or 8 are activated. Parallel to this the Fame Hybrid Pro module also generates pedal control data. When you pedal the hi-hat (zone 9), initially only a NOTE-ON command is generated. If the pedal is moved upwards again, a NOTE-OFF signal is sent.
-
Page 33: Out
Line In – Mono: This setting is advantageous if you use the Fame Hybrid Pro module as an in-ear monitor station and only a mono monitor signal is supplied by an external mixing console (AUX). In this situation you should select "Mono"... - Page 34 ENGLISH 1+2! : Signals from BUS 1 and BUS 2 are output at a fixed volume at sockets OUT1 and OUT2, which then serve as additional individual outputs (Direct Out). SUB: As an alternative to the complete signal of the internal mixer, you can create a so-called "SUB-Mix".
-
Page 35: Metr
PRCHG: You can choose between On and Off. If you have selected "On", the Fame Hybrid Pro module can send and receive MIDI programme change messages. This is useful, for example, to change kits from a MIDI keyboard or vice versa to control an external MIDI device from the Fame Hybrid Pro module. -
Page 36: Pref
ENGLISH LOCAL: Set LOCAL to "Off" to turn off the internal sound generation. Now the Fame Hybrid Pro only sends MIDI commands and does not trigger internal sounds anymore. This setting is useful if you want to trigger an external sound source without the Fame Hybrid Pro sound generation being audible. -
Page 37: Mem
FREE: Percentage of the flash memory that is still free and available to you for additional sound files. If you often copy additional sounds to your Fame Hybrid Pro, it may happen that there is not enough memory available. In this case you should clean up your module to make room for new sounds. -
Page 38: Info
ENGLISH 8.12 INFO This page gives you information about the software status of your module (DATA button and DATA knob have no function). SERNR: Serial number of the module BOOT: Software version of the Boot program OS VER: Software version of the operating system... -
Page 39: Programm Menu
ENGLISH 9. PROGRAM Menu In the PROGRAM menu area you can edit the internal programme memory locations. There are 100 factory preprogrammed kits (memory locations) available. Each kit is freely editable and can be saved again. In the PROGRAM menu, you specify the sounds and sound settings for each individual kit, adjust the metronome or playback functions and set the internal equalizer. - Page 40 ENGLISH Functions for kits with song: TIME: Shows you the played time of the song. If no song is selected, "-" appears in the display. (The knob has no function). PITCH: This function allows you to change the tempo of the song. A range between .50 and 1 is available.
-
Page 41: Acmp
ENGLISH Mix: The EQ settings are applied to the internal mixer. All drum channels are automatically routed through the EQ. Sub: The EQ settings are applied to the internal SUB Mix and automatically affect all drum channels present in the SUB Mix. Live Sound If you only want to frequency manipulate individual instruments in your kit, e.g. - Page 42 ENGLISH BAR: Here you can set the time signature for the metronome. A selection of the most important variations with different accentuations is available: 1/4, 2/4, 3/4, 4/4, 5/4, 6/4, 7/4, 3/8, 5/8, 6/8, 7/8, 9/8 or 12/8. The 1/4 setting is ideal if you do not want the metronome to be accentuated. TEMPO: Here you can set the tempo.
-
Page 43: Kfnc
ENGLISH 9.4 KFNC* On this PAGE you can set the degree of opening of the hi-hat. This setting only affects the set kit. If you change this value, the HH controller loses its function. This function is useful if, for example, a "half-open" hi-hat is required for double bass drum patterns. Values from 1 (fully opened hi-hat) to 31 (closed hi-hat) are available. -
Page 44: Sound Menu
ENGLISH 11. SOUND Menu On this page you can assign a sound to each drum channel and tune it. Use the CHANNEL menu (chapter 10) to select the desired channel or use the corresponding PAD. 11.1 DRUM* FILE↓/FOLD↑: Here you can assign a sound to each channel. The name of the sound is displayed in the second line. -
Page 45: Special Menu
ENGLISH 12. SPECIAL Menu The SPECIAL section of the menu allows you to fine-tune the sounds and set the functionality of the loops per channel. You can also assign a specific function to any pad here and you can globally adjust the panorama volume ratios. - Page 46 User Sounds With the FAME sound editor you can create individual sound files from your own samples. Regarding the parameter settings on this page, please note that for your own sounds with few layer levels (1-10 layers) the LAYER setting "FIX" should be selected, otherwise the behaviour of the sound will be unnatural.
-
Page 47: Cfnc
The Fame Hybrid Pro can play loops in different playback modes. The loops can be assigned to any drum channel like a normal Fame sound and can be started and stopped by pad. You can also create your own loops. Conventional WAV files (e.g. from loop libraries) can be converted into the usual FAME file format using the Fame Sound Editor. -
Page 48: Vol
ENGLISH NONE: The trigger channel has no function. Neither a sound nor a function is triggered. 12.3 VOL* EQ: This function lets you specify whether the signal of the selected drum channel is sent through the EQ (EQ+) or not (EQ-). This function is available only when "Drum" is set to BUS in the EQ page. The BUS signal itself is not affected by the EQ. -
Page 49: Signal Flow & Routing Options
ENGLISH 13. Signal Flow and Routing Options In this chapter we will show you how the signal flow within the module is structured and give you ideas for the use of Hybrid Pro in practice based on a few 1. The pads are connected to the respective drum channel input (in our example a kick pad). - Page 50 ENGLISH 2. In the SOUND menu on the DRUM page, the trigger signal of the respective drum channel is assigned a sound and the general volume of the signal is adjusted. Alternatively, the volume can also be adjusted on the SPECIAL-VOL page, since both VOL controls are identical. 3.
- Page 51 With the examples on the following pages you can see which possibilities the routing functions of the Fame Hybrid Pro give you. Naturally these are only a few examples and not an exhaustive list of all possibilities which are available for your personal application situation.
- Page 52 Fame Hybrid Pro as "in-ear-monitor station" (stereo sum, metronome, external monitor signal). For this purpose the output sockets OUT1-2 of the Fame Hybrid Pro are connected to an external mixing console and at the same time the monitor output of this mixing console (Aux) is connected to the line-in socket of the Hybrid Pro module.
- Page 53 ENGLISH Situation 3 - Live 2: As many individual signals as possible for the PA, click and monitor signal only on the headphones In this situation, you want to output multiple drum signals individually so that the sound engineer can adjust each instrument precisely.
-
Page 54: Technical Data
ENGLISH 14. Technical Data Connections: 10 x Trigger-Input (6.3mm Stereo jack) 2 x Control Input for Hi-Hat and Cymbals (6.3mm Stereo jack) 1 x Line In, stereo (6.3mm Stereo jack) 4 x Line Out, mono (6.3mm Stereo jack) 1 x Headphone Out (6.3mm Stereo jack) 1 x USB 1.1 (Full Speed) 1 x MIDI IN (Adapter required/optional) 1 x MIDI OUT (Adapter required/optional) -
Page 55: Update
Thanks to Fame's open sound system, the module can be updated easily and conveniently via drag & drop. This way you can always keep your Fame Hybrid Pro up to date and benefit from new functions and technical enhancements when updating the operating system. -
Page 56: Contact & Support
Hybrid Pro. We recommend the Fame Pro Trigger Pack, for which you can download the preconfigured settings. In the MIXER-UNIT menu on the TRIG page you will find special trigger TYPES (AcTr1, AcTr2 and AcTr3) as well as other parameters (GAIN, THRES), with which you can adjust the module perfectly for the use with acoustic triggers. -
Page 57: Cleaning
ENGLISH 18. Cleaning A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.
