ReachFar RF-V13 - GSM Intelligent Magnetic Door Alarm Manual

Important

Please attention

1. This tracker was designed for people and asset location and communication, our company assumes no liability or responsibility for any behaviors violate other individual's privacy.
2. Due to external factors all GSM devices have position error, so the position provide by this device just for reference only.
3. There may be delays caused by telecom operators at certain circumstance. Our company doesn't assume liability for users' personal and property safety

Main Features

• GSM quad band network, LBS location
• Website/IOS APP/Android APP/SMS;multiple set and tracking
• Open/close alarm
• Voice sensor alarm
• Vibration sensor alarm
• Voice monitoring
• Low battery alarm
• SIM changing alarm
• Long time standby

Accessories

• 1* Main Host
• 1* Magnet box
• 1* Charger
• 1* Multiple-function USB cable
• 1* User manual

Product specification

GSM network: 850/900/1800/1900MHz
GPRS standard: Class 12, TCP/IP
Working temperature: -20℃ ~ +70℃
Working humidity: 5% ~ 95% RH
Host size: 40x34 x14mm
Host weight: 27g

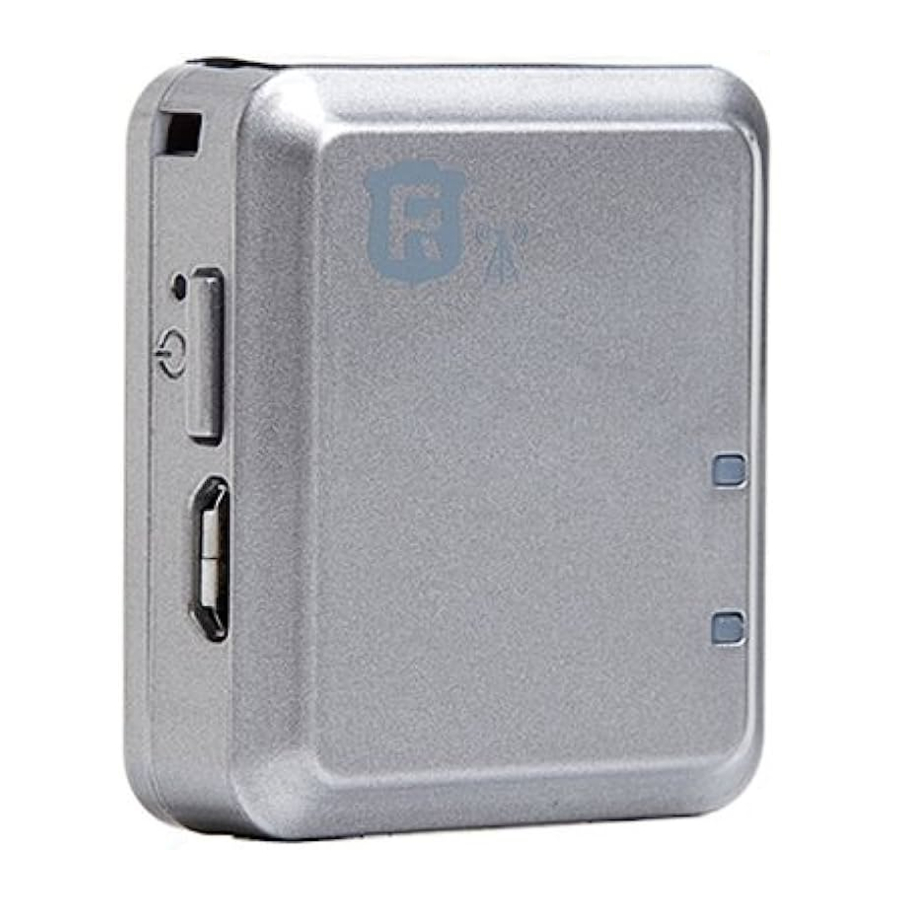

Product View

Prepare for work

Please choose GSM network-based Micro-SIM card (same as Iphone4) for the product. And please note:

1. Please be sure the tracker is turn off before insert or take out the Micro-SIM.
2. Please be sure the GPRS and Caller ID has been activated

Power on

Press power button 3S, when indicator flash it means power on, when indicator light flash fast it show s that the tracker search network successfully

(Use Velcro to past the host on the door and paste magnet box on the frame, as picture shown: Please make sure the gap between the two is no more than 1cm, otherwise it will influence the sensor performance.)

APP binding and function setting

1. Scan the User manual back cover QR code to install the APP
2. Enter the ID number and password to login, the default password is 123456.
3. Confirm the device online, the corresponding instruction set can be achieved.

• Real-time Tracking:show the last position and trace.
• Historical route:display the historical.
• Geo-fence: set and display geo-fence area, when the device get into or get out the geo-fence then it will send a alert SMS.
• Device message:display the alert list.
• Alarm setting:get the remind via APP when alarm
• Logout: logout the APP,and never get the alarm remind via APP.


Command setting

1. Locate interval: set the location data upload density, shorter standby time according to shorter interval.
2. SOS1 phone number: Button 1 phone number, also the master phone number, used to send command and receive alarm.
3. White list number: the othe SOS number, also allow to remote listening
4. Arm/Disarm: open or close related sensor alarm function. Smart door has three sensors, can work at the same time;

• Magnetic sensor: when door open/close, it will alarm
• Vibration sensor: when the device detect trembled, it will alarm
• Sound sensor: when the device detect the abnormal sound, it will alarm

5. Alarm mode:

• Alert to APP: only through the APP alarm. You can't receive alarm notification if you don't login.(Only GPRS fee, no other charge)
• Alert to SMS,phone and APP: The device will send SMS and APP alert first and then make call notification(it will charge calling and SMS fee)
• Alert to phone and APP:The device will call you and send APP notification(Call charges )
• Alert to SMS and APP: The device will send SMS and APP alert(SMS charge)

5. Language Setting:
   Choose SMS language, the device provide three languages: Chinese, English and French
6. Time zones:
   The factory default is UTC+08:00; users can set it according to local time zone.

Please log on www.reachfar-gps.com to learn more details of APP and platform

All functions also can set by SMS command
All command use in lowercase letters, without any blank space and ending by #.
Command for setting master number: password, sos1,phone number#
For example: 123456,sos1,180********#
The tracker will reply: 180******** has been set for the master number successfully.
Note: All SMS setting must send via SOS1 number.

Command for SMS setting

Remark:

1. The tracker will boot automatically when it was charging. put the tracker in network signal better position when use.
2. The new machines need to be recharged for 2-3 hours before use in order to achieve the best results, please use our distribute charger avoid damage to the host.
3. Standby time:
   1. Upload location data every 10 minutes, the standby time is 120 hours, talking time is 5-8 hours (Actual test) Note: Above test data is under the status of strong GSM network
4. Please charging and boot with SIM card, the device will automatically reboot when it can't search GSM network.
5. This product is not waterproof, please pay attention when using.

FAQ

Q: After inserting a SIM card, it can make a call, but it display not enable on the platform and APP?
A: Please check that SIM Card has opened GPRS.

Q: When I make call to RF-V13, why it is not auto-answer my call?
A: Please check that SIM Card has opened caller ID.

Q: Device show online, but it shows "wait for the device responses" when you set instruction with APP.
A:

1. Device signal is not good, so not smooth result of GPRS
2. Device is busy.

Q: The SIM card has opened GPRS function, but the device still not online.
The tracker have pre-program all most APN, maybe the APN of the SIM card you use don't preset in the tracker, please send command to add you APN into the tracker.
The command is: anp, <apn>#

Q:The host and magnetic stripe are alignment, but it doesn't trigger alarm when door open.
A:Please trim around the magnetic stripe and the host location.
