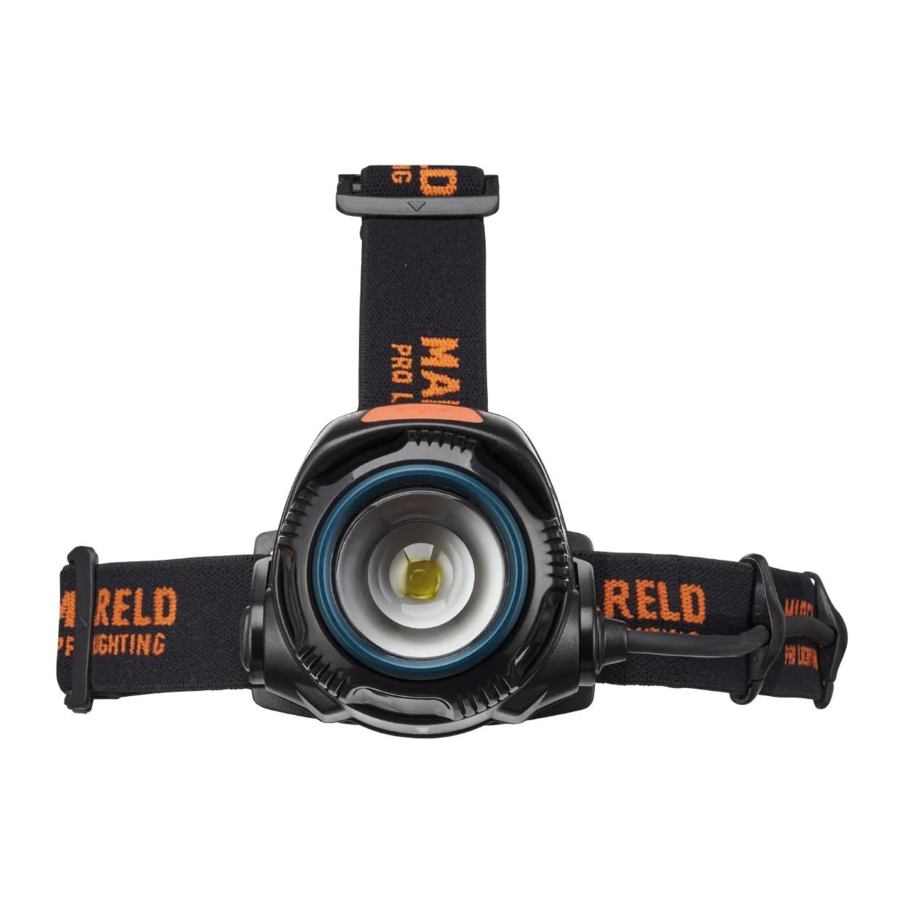

MARELD HALO 1200 RE- Headlamp Manual

OPERATION

Headlight
TURBO > HIGH > MED > LOW > 3Hz FLASHING > OFF
[Press OFF if stays at any mode over 5 seconds] [Twist lens ring for LED focus control]

Rear light
ON > 2Hz FLASHING > OFF

BATTERY INSERTION

Battery Type: 1pc Li-polymer Rechargeable Battery Pack (RB0149 Included) or 4 pcs 1.5 V AA Alkaline Batteries (Not Included)

1. Open battery case.
2. Insert a charged Li-polymer battery pack according to the arrow sign on the battery & case, top pin position first, and then place the end into battery case. Or; Insert 4pcs new AA alkaline batteries according to the polarity marks on the case.
3. Close battery case.

HOW TO RECHARGE

When the headlight becomes noticeably dim, switch off the unit and recharge the battery pack as soon as possible.
Battery type: 1 x 3.8V 2850 mAh Li - polymer Rechargeable Battery Pack [RB0149, Included]
Charging Time: TBC hrs


Battery can explode or cause burns if disassembled, exposed to fire or high temperature. Use only specified charger. Must be disposed properly. Do not short- circuit.

1. Connect the rechargeable battery pack to your PC, or an approved USB adaptor, a solar panel, a portable power bank or any other charging devices with an USB outlet, with the micro USB cable.
2. The Red LED indicator will light up to indicate charging has started. The Green LED indicator will light up when the battery has been fully charged.

• Recharge the battery pack every 3 months if it is not being used for a long time, or recharge it after used.
• The battery will reach full performance only after a few complete charging & discharging cycles.
• Do not leave the battery charging status (with power connected) continuously for more than five days, as this may cause a reduction in battery efficacy.
• Headlight turns off automatically when it is in charging status (with power connected).
• In preparation for unexpected battery shutoff, we recommend you to carry a spare charged battery.

• Charge before use, although the battery pack is delivered in a charged state.
• It is advisable to use the unit from time to time in order to maintain the unit in good condition.
• Do not dispose of the unit into fire or dismantle it under any condition.
• Reverse charging is not acceptable.
• Do not short circuit the battery. Permanent damage to the battery may result.
• Never insert any foreign metallic objects into the charge jack of the headlight.
• Never leave the unit in extremely high temperatures while charging.
• Use battery in extreme condition may affect the service life, such as extreme temperature, deep cycle, and extreme overcharged or over discharged.
• Battery should be stored in a cool and dry place.
• Be sure to use manufacturer's replacement parts.
