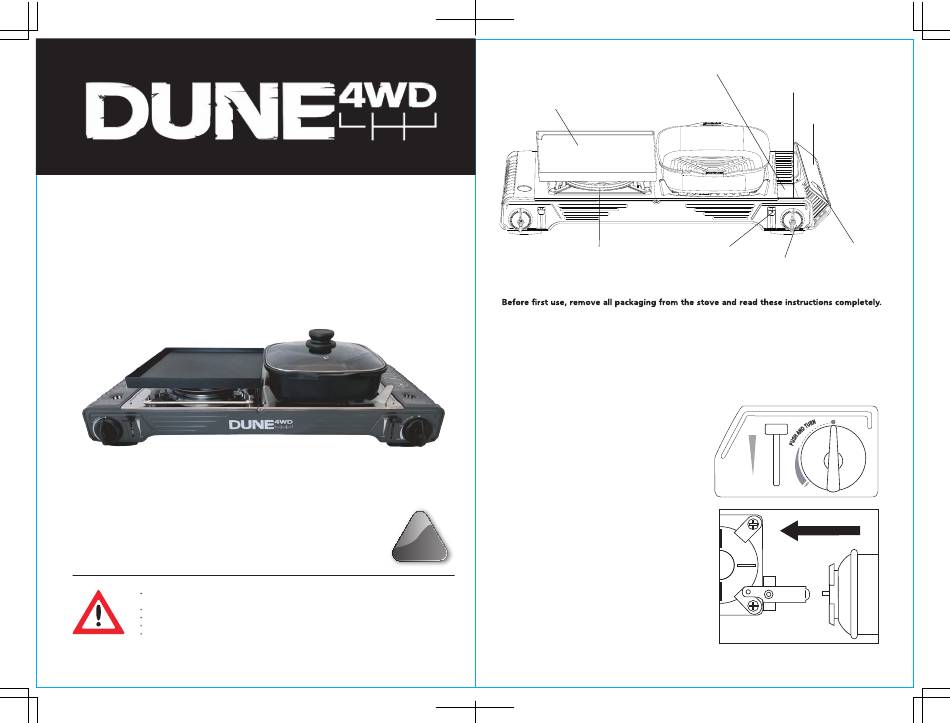

Dune 4WD AN2230SP Operating Instructions

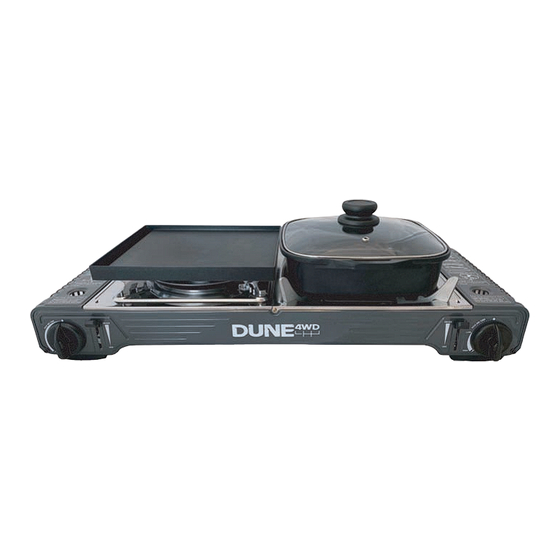

PORTABLE BUTANE COMBI STOVE
OPERATING INSTRUCTIONS
AN2230SP
WARNING: FOR OUTDOOR USE ONLY
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. DO NOT modify this appliance.
WARNING: Accessible parts may be very hot. Keep young children away at all times.
Do not move the appliance during use.
Important. Read these instructions for use carefully.
Familiarise yourself with the appliance before connecting it to it' s gas cartridge. Keep these
instructions for future reference. ONLY USE IN WELL-VENTILATED AREAS
Plate
OPERATING INSTRUCTIONS
Each burner requires an individual cartridge to operate. The left hand burner operates from a
cartridge situated in the left hand cartridge bay and the right hand burner operates from a cartridge
situated in the right hand cartridge bay. The following instructions are written for an individual side as
this can be used independently. The operator is to ensure that the instructions are correctly applied
to each side of the appliance.
HOW TO INSTALL A GAS CARTRIDGE
1. Turn the control knob to the OFF position.
Make sure that the cartridge lever is in the
UNLOCK position. If the gas knob is in the
ON position the cartridge cannot be put
into position.
2. Open the cartridge cover and insert the
AGA
gas cartridge.
approval
Make sure that the cartridge slot fits into
No: 8630
the cartridge lever guide on the valve
Australian Gas Association
inside the stove.
(Caution: Use only approved butane gas
cartridge UL147B or EN417)
Valve & Cartridge Guide
Safety Reset Lever
Drip Pan Cartridge Lever
Control Knob
UNLOCK
LOCK
Cartridge Cover
Reference Window
LOW
HIGH
