Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
30732001
30732001
1.2
1.2
Equipment
Equipment
A0000162
A0000162
IMG-222800
IMG-222800
© Volvo Car Corporation
Part. No.
Part. No.
31339076, 30732000
31339076, 30732000
CD changer
CD changer
CD changer- 30732001 - V1.2
Page 1 / 13
Advertisement
Related Manuals for Volvo A0000162
Summary of Contents for Volvo A0000162

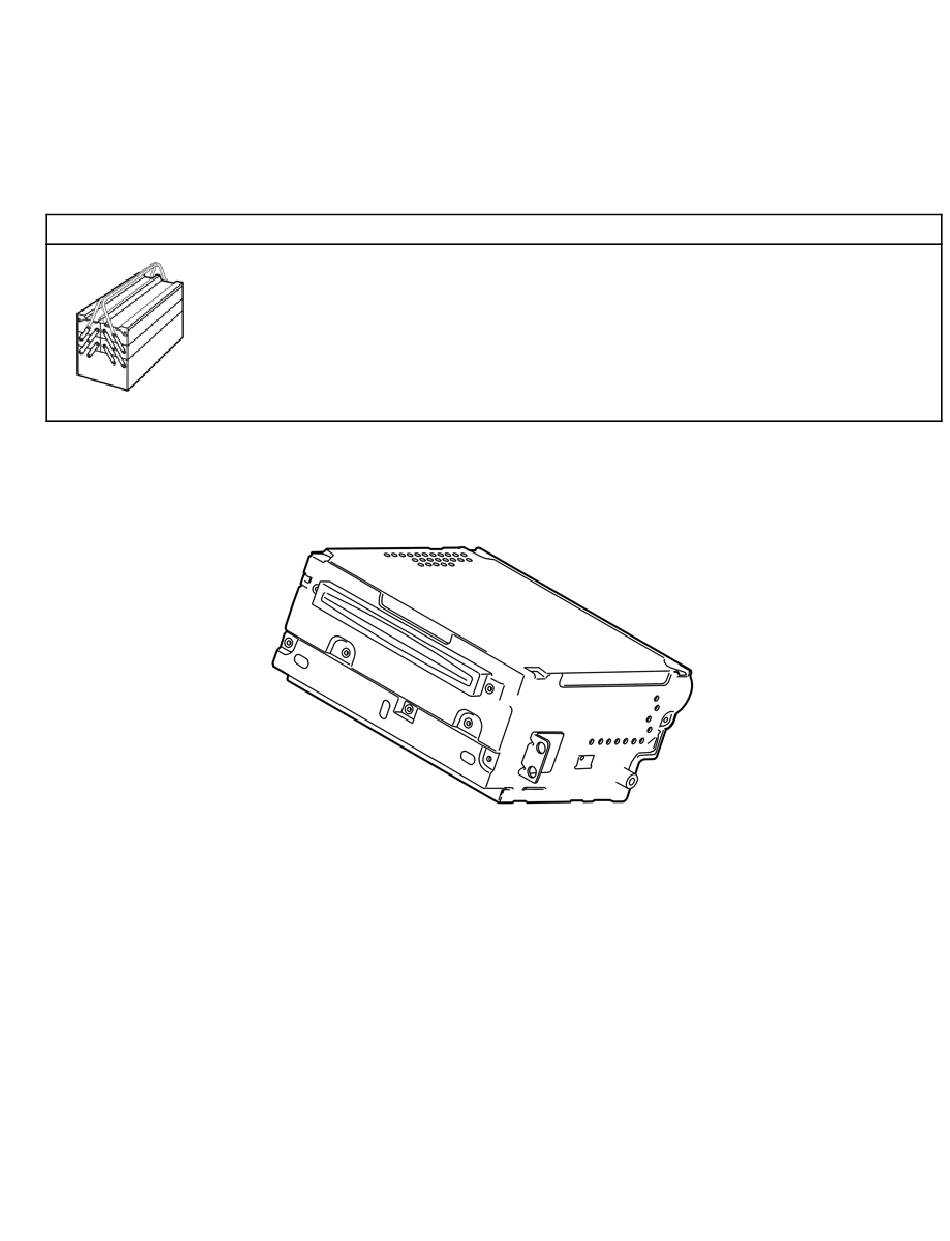

- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30732001 30732001 31339076, 30732000 31339076, 30732000 CD changer CD changer Equipment Equipment A0000162 A0000162 IMG-222800 IMG-222800 © Volvo Car Corporation CD changer- 30732001 - V1.2...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation CD changer- 30732001 - V1.2 Page 2 / 13...
- Page 3 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Turn the ignition key to position 0. IMG-214981 Remove the panel around the display and the media player: Press in the catch at one of the panel's upper corners.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the gear lever panel by carefully prizing it away starting at the rear edge and then continuing forward. It is fitted with six catches underneath. IMG-222806 Illustrations A and B Remove the gear lever panel from the gaiter by first pressing in the four catches at the sides, and then pull the panel up.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Fold up the cover for the storage compartment in the rear section of the tunnel console. IMG-222804 Remove the covers and screws in the rear edge of the upper panel section of the centre console, remove the screws on the rear of the panel and then remove the remaining screws on the top, ten in total.
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the edge clip with cable from the lower section of the centre console. IMG-232205 Carefully angle up the upper section of the centre console at the front edge so that the edge clip for the large cable harness on the left-hand side of the centre console is accessible.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Angle the upper section further in order to access the four connectors on the rear of the climate control module (CCM). Unplug the connectors. The connector (1) has a catch on the rear in toward the upper section.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws from the media player. IMG-222813 Pull the media player out fully and unplug the connectors on the rear. Place the media player to one side, it shall not be used again.
- Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the new CD changer from the kit and plug the connectors into the rear. Insert the CD changer into its location in the dashboard while making sure that the guide pins at the sides engage in the corresponding rails in the dashboard.
- Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Plug the connectors into the CCM unit. Note! Do not damage the fibre optic cables and other cables. IMG-232284 Reinstall the edge clip with cable harness in the holder. IMG-232285 © Volvo Car Corporation CD changer- 30732001 - V1.2...
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the edge clip with cable harness in the lower section of the centre console. IMG-232286 Tighten the panel in using the existing screws. Reinstall the covers on the screws at the rear edge.
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the panel for the media player. IMG-222821 Illustrations A and B Reinstall the gear lever panel on the gaiter. IMG-222818 IMG-222819 © Volvo Car Corporation CD changer- 30732001 - V1.2 Page 12 / 13...
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Reinstall the panel with gaiter in the centre console. IMG-222820 Fold back the cover for the storage compartment. IMG-222822 © Volvo Car Corporation CD changer- 30732001 - V1.2 Page 13 / 13...
