Summary of Contents for RSG PU-27
- Page 1 Operation manual Control panel PU-27 v06.2018...
-
Page 2: Table Of Contents
Contents 1 Introduction ..........................3 2 Warranty and liability......................4 3 Safety ............................4 4 Purpose ..........................5 5 Control panel external view ....................6 6 Starting control panel operation ...................6 7 Main menu..........................7 8 Timers settings menu......................8 9 Fast access to startup timers activation menu ..............9 10 Hydronic pre-heaters settings menu ...................9 11 Air heaters settings menu ....................12 12 Parameters settings ......................13... -
Page 3: Introduction
1 Introduction This Operating Manual is part of the documentation for hydronic pre-heaters and air heaters (hereinafter referred as the product). The Manual contains information for the user on safe maintenance of the product. This control panel is compatible with the following products: pre-heaters: 14ТС-10 14ТС-mini... -
Page 4: Warranty And Liability
2 Warranty and liability The manufacturer will not be liable for defects and damage caused by failure to follow the product installation and maintenance instructions. The control panel can only be used to control products from the list of compatible products. -
Page 5: Purpose
4 Purpose The control panel is designed for: manual start and shutoff of the product; manual start and shutoff of the pump (for the pre-heater); manual start and shutoff of ventilation (for the heater); fluid temperature display (for the pre-heater) power supply voltage display;... -

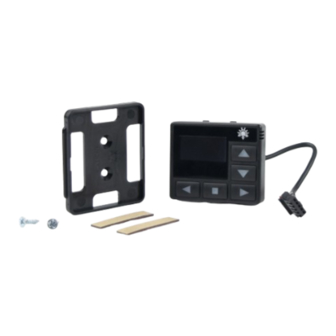

Page 6: Control Panel External View
The control panel interface depends on the product it is connected to. 5 Control panel external view 1 – activated startup timer. 2 - power supply voltage. 3 – LED indicator. 4 – control keys. 6 Starting control panel operation After connecting the control panel to the product, the control panel software version and the process of establishing connection with the product will be displayed. -
Page 7: Main Menu
7 Main menu Switch to the main menu from the main screen by clicking the Action of main menu keys: Keys Action Navigation through the main menu Activation of selected menu item Exit from the main menu to the main screen Menu icon Description Startup timers menu. -
Page 8: Timers Settings Menu
8 Timers settings menu Action of the Timers menu keys: Keys Action Navigation through the menu items Change menu item value Exit from this menu to the main screen The control panel allows the startup timers to be programmed. For startup timer setting, the following data must be indicated: startup time in 24-hour format;... -
Page 9: Fast Access To Startup Timers Activation Menu
9 Fast access to startup timers activation menu For fast access to the timer activation menu from the control panel main screen, press and hold the key. This menu is only intended for timer activation. Timers cannot be edited in this menu. Action of timers activation menu keys: Keys Action... - Page 10 “Settings” menu items: In the additional heater mode, the pre-heater operates with the engine and maintains the set fluid temperature. Additional heater mode is OFF. Additional heater automatic operation. If the pre-heater is off, after the vehicle engine starts, the pre-heater will start А...
- Page 11 “Settings” menu items: Pump selection depending on configuration, pre-heater Pump type Bosch pump ADVERS pump Setting of pre-heater control with the alarm channel. provided the pre- heater is connected to the alarm system and a free channel is Sign channel available).
-
Page 12: Air Heaters Settings Menu
11 Air heaters settings menu PLANAR air heater settings menu: Action of Settings menu keys: Keys Action Navigation through the menu items Exit from this menu to the main screen Change menu item value “Settings” menu items: In the “heater T based” mode, the “Set temperature” of the By T heater temperature sensor located in the heater is used for operation. -
Page 13: Parameters Settings
12 Parameters settings This menu is intended for setting control panel parameters. Action of Parameters menu keys: Keys Action Navigation through the menu items Change menu item value Exit from this menu to the main screen Parameters menu items: Setting of indicator lighting time. By default, the control panel indicator lighting time is 30 Fading seconds. -
Page 14: Time Settings Menu
13 Time settings menu Current time is set and displayed in a 24-hour format. When the control panel power is shut off, the current time is set to zero and the day is reset to Monday. Action of Time menu keys: Keys Action Navigation through the menu items... -
Page 15: Software Version Display Menu
15 Software version display menu In this menu, the information on software versions is displayed. - control panel software version; - product control unit software version; - Product serial number. Press any key to exit. 16 Operating Time settings menu This menu is intended for setting pre-heater operating time with a 5 minute step. -
Page 16: Hydronic Pre-Heater Start
17 Hydronic pre-heater start Start of pre-heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. pre-heater operating time count will be started. Full-screen display current coolant temperature and power supply voltage. When pre-heater operating, enter the pre- heater operating time editing... -
Page 17: Air Heater Start
18 Air heater start Start of heater from the main screen or from the temperature sensors screen. The indicator will appear as follows. Press and hold more then 2 seconds for starting ventilation* (without heating). Temperature sensors display. When the air-heater is operating, enter the air-heater operating time editing menu. -
Page 18: Malfunctions
ATTENTION! Maintenance and repair should only be performed by trained, qualified personnel! Acceptance and packing certificate PU-27 control panel, serial number _________________ Is manufactured and accepted in accordance with the applicable technical documentation and found suitable for operation. Packing performed...
