aura-t
TP536/BEAM
axco MVHR controller
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the aura-t TP536/BEAM and is the answer not in the manual?

Questions and answers

Summary of Contents for Beam aura-t TP536/BEAM

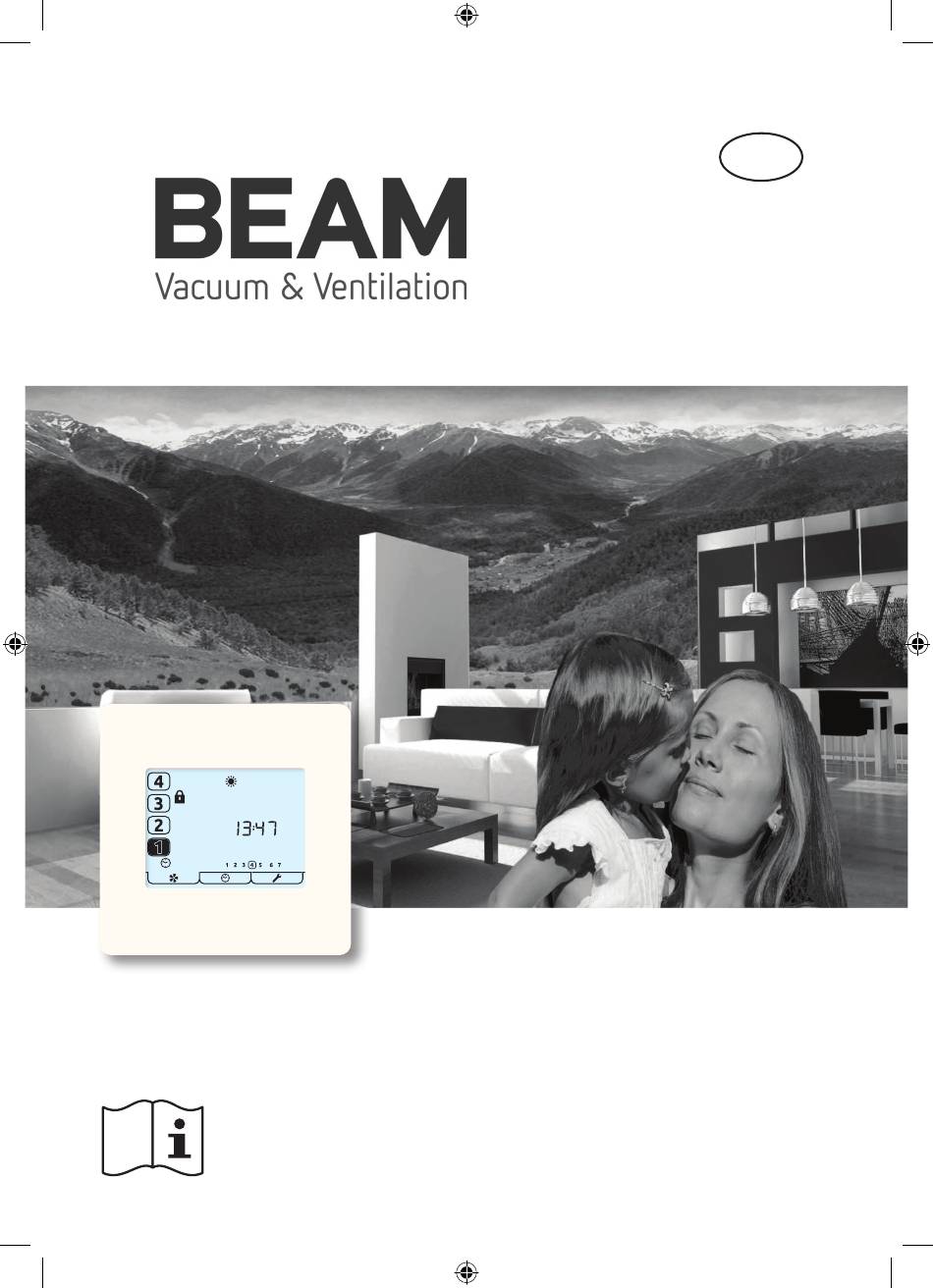

  • Page 1 TP536/BEAM axco MVHR controller Owners Manual...
  • Page 2 Warnings, Safety information and Guidance Important Information Read instructions fully before the installing this appliance. 1. This manual covers the operation of the MVHR control system only, it must therefore be read in conjunction with the relevant heat recovery unit Product Manual. 2.
  • Page 3 8. The appliance is not suitable for installation to the exterior of the dwelling. 9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concern- ing use of the appliance in a safe way and understand the hazards involved.

  • Page 4: Table Of Contents

    Contents Warnings, Safety information and Guidance Installation Important Information                          2 Location                                     12 Fixing                                  12 Product Overview Wiring                                       13...

  • Page 5: Product Overview

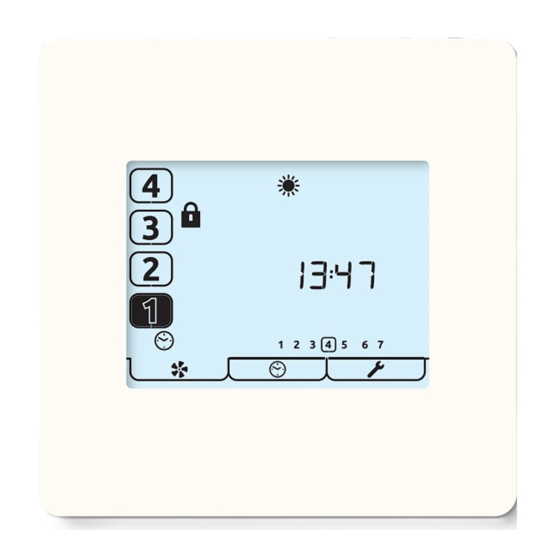

    The aura-t is a programmable touch screen controller which monitors and displays the status of a BEAM MVHR unit. It allows the unit to be commissioned, and gives the user both manual and timed control of fan speeds. The aura-t is connected to the MVHR via a low voltage connection and can be sited remotely from the unit.

  • Page 6: Features                                      6

    Features The following gives an outline description for each of the product features. Speed Selection & Display Filter Change Alert The aura-t will display an alert after a The unit speed can be manually selected via the on screen 1, 2, 3 & 4 buttons/ specified time when the MVHR filters icons which are also used to display any require changing.

  • Page 7: User Interface

    User Interface The aura-t is operated via a LCD touchscreen. The screen is backlit, the backlight operates when the screen is touched. Menu Tabs The aura-t screen has three interactive menu screens which are selected via tabs at the bottom of the touchscreen. Function Monitor &...

  • Page 8: Run Mode                                8

    Run Mode The aura-t controls the MVHR unit’s 4 programmable speed settings. This is the Run Mode screen; use the number buttons to select the required fan speed. Press and Hold the [1] or [2] button to enable boost Inhibit, the Padlock icon will display to indicate Boost inhibit is active.

  • Page 9: Other Icons                               9

    Other Icons Other status icon that may be visible on the screen are listed below: The filters need changing or cleaning, refer to the Settings Menu for details of how to reset the timer. Frost Protection, if this icon is constantly lit the temperature outside is low and the speed of the MVHR Supply Fan has been reduced to prevent damage to the Heat Cell.

  • Page 10: Installation

    Installation Location The aura-t should be mounted in position convenient for the householder and where the supplied control cable will reach. As standard the aura-t is supplied with a 3m control cable. If a longer cable is required 0.75mm² 4 core cable should be used, to be supplied by your electrician.

  • Page 11: Wiring

    Wiring The aura-t’s control cable may be supplied fitted with a plug in connector for connection to the MVHR, if the MVHR does not have a socket remove the plug and use the wiring diagrams below. Connection to MVHR Connection to aura-t...

  • Page 12: Controller Setup

    Controller Setup Enter key. Exit Key. Tap the Setup Mode tab to enter the Setup Mode menu. All the editable settings in the Controller Setup menu are accessed in the same way. Menu navigation is achieved by first Setting Selection and then Editing. Setting Selection Arrow keys are used to select a setting, the setting will flash.
  • Page 13 Humidity threshold Kitchen Overrun timer. Wet room Overrun timer. Summer Bypass Setup. Passcode Disable / Enable. Filter Reset If a filter change is required the reset ring will be flashing. Tap the Enter key to reset or the Exit key. If a filter change is not due but the filter timer requires resetting press the Enter key twice.

  • Page 14: Summer Bypass Setup

    Summer Bypass Setup Use to adjust value up or down. Enter key. Use the Supply and Extract buttons to select which threshold is to be adjusted. Supply represents from atmosphere air temperature; Supply Extract represents from dwelling air temperature. Extract Tap button[4] to enable / disable SUMMERboost.

  • Page 15: Switch Setup Menu

    Switch Setup Menu In this Sub-Menu of the Setup Menu the installer can configure the function of the MVHR unit’s switch inputs S1, S2, S3, LS1 & LS2 (see MVHR Product Manual for details) Enter key. Exit Key. Press and Hold the Setup Mode tab to enter the Switch Setup Mode menu.* Switch Setup menu active.

  • Page 16: Maintenance

    Maintenance The aura-t is maintenance free. Cleaning Exterior For best results use a clean damp micro fibre cloth. Do not use abrasive cleaners, waxes, solvents or alcohol based cleaning products; do not use paper towels for cleaning the aura-t. Appendix aura-t Configurable Defaults The table below details the default values and the range of available settings, plus any additional information about those settings the aura-t can configure.
  • Page 17 Live Switch options are: Kitchen Boost, Wetroom Boost. Live Switches also use the Boost overrun and delay times for the rooms they have been configured to. Some control features documented in this manual may not be compatible with older BEAM MVHR units.

  • Page 18: Axco Mvhr Defaults

    The table below details MVHR settings and defaults, which that the aura-t CANNOT configure. During installation and commissioning they may be changed from the default values by an alternate BEAM controller. There is space available in the table where the installer should record configuration settings.
  • Page 19 Configurable Item Range Default Configured Room Sensor 1 Enable/Disable Enabled Disabled Disabled Sensor Type Lower threshold Upper threshold Room Sensor 2 Enable/Disable Enabled Disabled Disabled Sensor Type Lower threshold 800PPM Upper threshold 1400PPM If fitted, Room Sensors are used to provide Demand Control Ventilation based on the environmental parameter they are measuring. Below their lower threshold they have no effect on the ventilation rate;...
  • Page 20 Ensure this booklet is passed to the householder once installation & commissioning of the ventilation system is complete. This Product Manual must be kept in the Home Information Pack. Installed by: BEAM Vacuum & Ventilation Opus Business Park 35 Aughrim Road Magherafelt...
