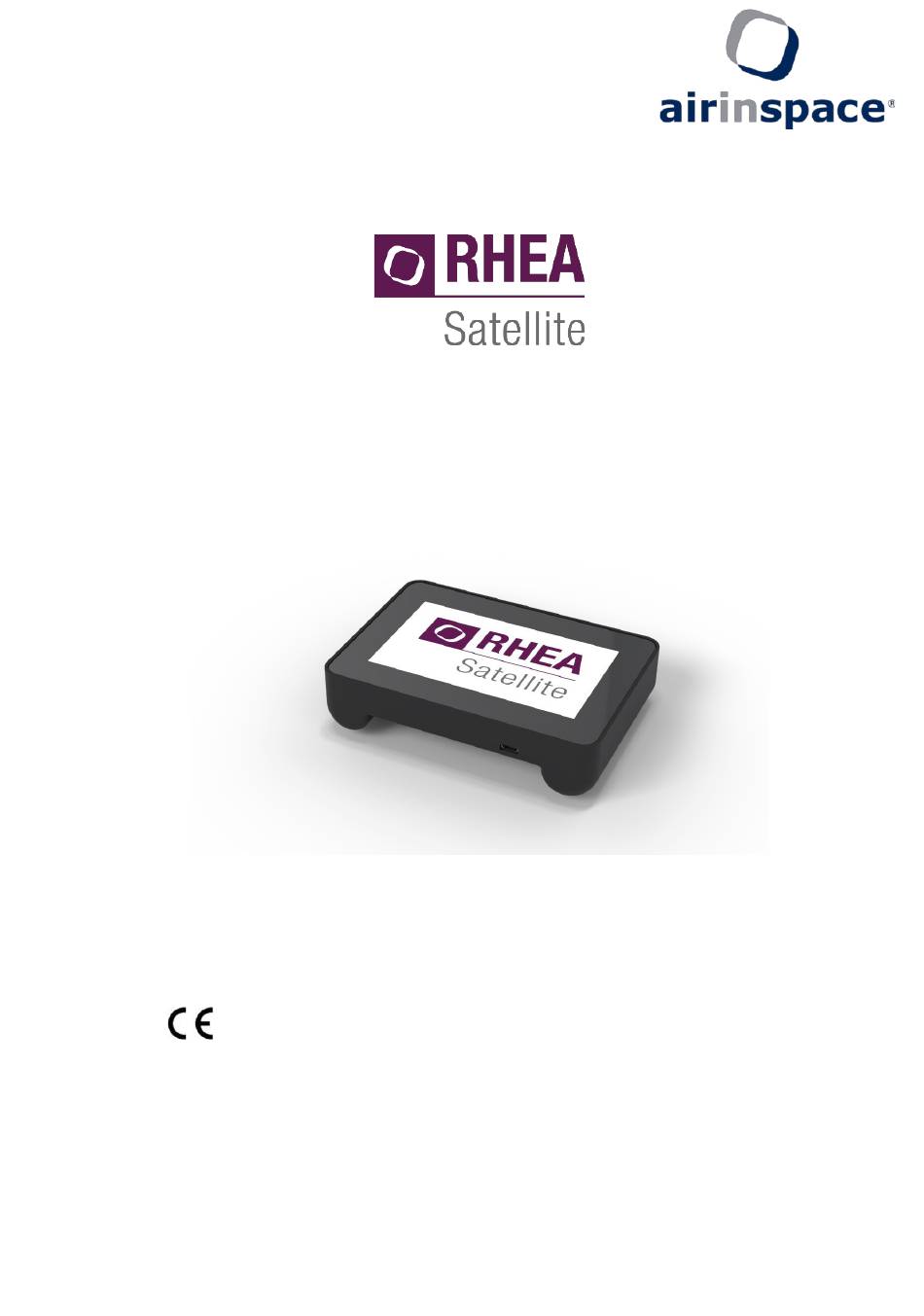

- Page 1 RHEA COMPACT PORTABLE COMMAND CONSOLE USER MANUAL RHEA Satellite Wifi European Electromagnetic Compatibility Directive (EMC) 2014/30/EU User guide RHEA Satellite WIFI EN_ed01_04-juillet-2019 pg.1/11...
- Page 2 WARNING We strongly recommend that you fully read these instructions before operating the RHEA Satellite Wifi for the first time (see section 2 – Use). RHEA Satellite Wifi is a remote control screen that connects to a RHEA Compact device via a Wifi wireless network.
-
Page 3: Table Of Contents
Regulatory standard ............................4 Normative standards ............................. 4 Classification ..............................4 Labelling ................................. 5 Physical characteristics of the RHEA Satellite Wifi ................... 5 Description of the device – Overview ......................6 Storage instructions ............................7 Disposing of the unit ............................. 7 SECTION 2 - USE................................. -
Page 4: Section 1 - General Information
EFORE WORKING ON AN ELECTRICAL COMPONENT SWITCH OFF AND UNPLUG THE Wifi. ATTENTION : W ® RHEA Satellite Wifi airinspace ORK ON THE IS STRICTLY RESERVED FOR MAINTENANCE STAFF OR DULY TRAINED PERSONNEL HE USER IS LIABLE FOR ANY DAMAGE REGARDLESS OF ITS NATURE... -
Page 5: Labelling
LABELLING Label Description Position Product Back of the unit PHYSICAL CHARACTERISTICS OF THE RHEA SATELLITE WIFI Charge Power supply via USB cable - 5V / 1A Electrical supply Battery Lithium-Ion - 3.7V 2x 2600mAh Water/solids protection index IP40 Overall dimensions... -
Page 6: Description Of The Device - Overview
DESCRIPTION OF THE DEVICE – OVERVIEW Touchscreen USB port (recharge) Return to start page On/Off switch User guide RHEA Satellite WIFI EN_ed01_04-juillet-2019 pg.6/11... -
Page 7: Storage Instructions
STORAGE INSTRUCTIONS The unit must be stored in a clean area with an atmosphere not polluted by industrial activities. The unit must be protected from dust, direct sunlight, heat sources, frequent changes in temperature and humidity, chemicals or other products. Storage temperature: +5°C to +35°C (41°F to 95°F). -
Page 8: Section 2 - Use
SECTION 2 - USE DESCRIPTION OF THE INSTALLATION RHEA Satellite Wifi is designed to be used with a RHEA Compact equipped with a Wifi Dongle (reference CP17501). Once the link between the RHEA Compact and the RHEA Satellite Wifi has been established, RHEA Satellite Wifi acts as a remote screen, making it possible to control one or more... - Page 9 5- The RHEA Satellite Wifi automatically launches a search for compatible devices on the Wifi network. a. If the “No RHEA found” message appears, make sure the RHEA Compact switched on and within range (*). Press the icon to start scanning again. b.
-
Page 10: Description Of Use
DESCRIPTION OF USE RHEA Satellite Wifi is synchronised with the RHEA Compact via the Wifi wireless network. The RHEA Satellite Wifi is powered by two 3.7V 2600mAh batteries, included in the unit. This control unit allows you to configure the RHEA Compact from the outside via a 4.3 inch touchscreen, and... -
Page 11: Section 3 - Maintenance - Repair
RHEA Satellite Wifi its date of purchase: ® airinspace CONTACT airinspace S.E. +33 1 30 07 01 01 14, Rue Jean Monnet +33 1 30 07 01 02 78990 Elancourt France contact@airinspace.com www.airinspace.com...
