Summary of Contents for MegaRobo luckin coffee LKMD-08

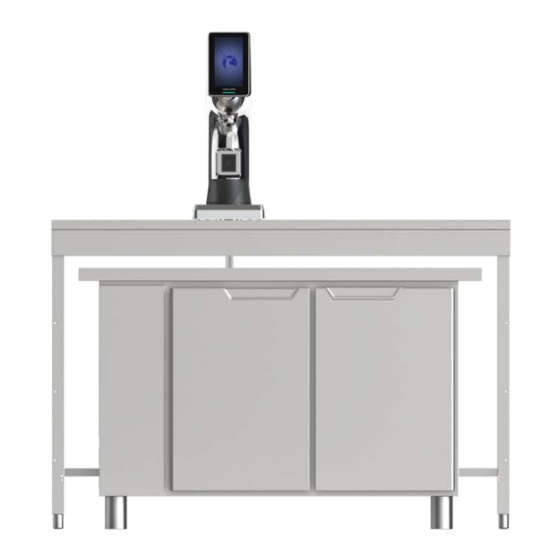

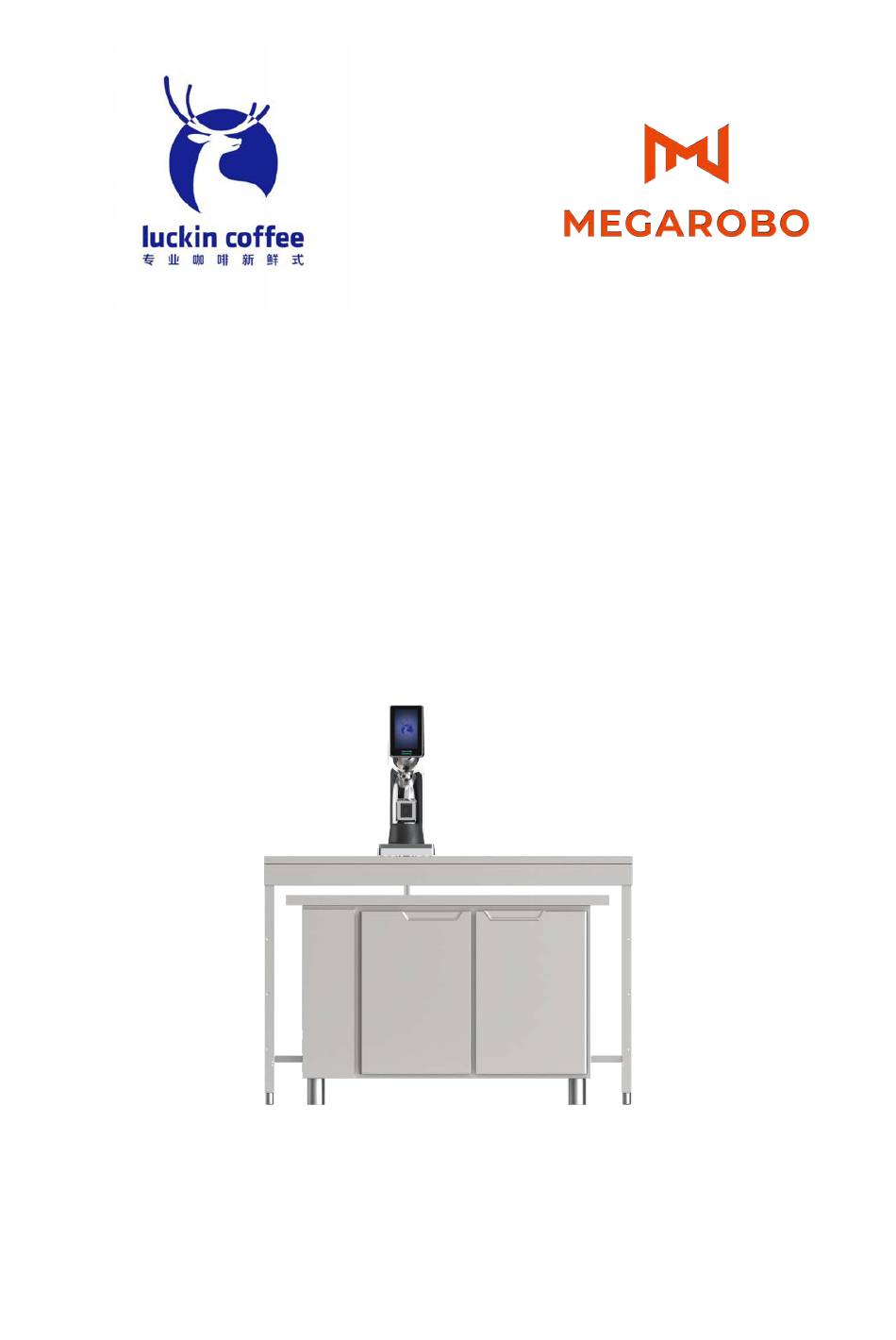

- Page 1 Luckin Coffee Dispenser-Dairy Mark I LKMD-08 User manual V2.1-5/2023 @LKMD-08User manual...
- Page 2 Copying, even partial, is prohibited. No part may be reproduced in any form, nor may any part be used, edited or transmitted by any electronic means (photocopying, photography, tape or other recording program) without the authorization of MegaRobo® . All rights reserved, in particular reproduction, translation, editing, distribution and industrial property and sound recordings.
-
Page 3: Table Of Contents
directory directory directory ................1 Safety Note 1 ................. 1 1.1 Intended Use ................... 1 1.2 Introduction ..................2 1.2.1 The importance of safety instructions ............2 1.2.2 Ignoring Security Rules ................... 2 1.3 Implementation Standards ............2 1.4 General Safety Instructions ............3 1.5 Disposal Instructions .............. -
Page 4: Directory
directory 2.3.2 Dimensions and weight of the machine ..........15 Ø On-stage part ....................15 Ø Offstage section ....................15 2.3.3 Electrical data and power supply .............. 16 2.3.4 Environmental Conditions ................16 2.3.5 Other Specifications ..................17 2.3.6 Nameplate ......................18 2.4 Luckin Coffee APP ................ - Page 5 directory 6.1 Factory calibration/defaults ............36 Maintenance 7 ..............38 7.1 Maintenance intervals ..............38 7.2 Maintenance Content ..............39 Troubleshooting 8 .............. 41 8.1 Examples of error messages (courtesy of Luckin)....41 8.2 List of faults ................... 42 8.3 Frequently Asked Questions ............
-
Page 6: Safety Note 1
1 Safety instructions Safety Note 1 Chapter overview This chapter describes the intended use and safety instructions designed to ensure the safe and trouble-free operation of the dairy dispenser LKMD-08 and its associated software. Processing and storage conditions are also described. -
Page 7: Introduction
1 Safety instructions 1.2 Introduction 1.2.1 The importance of safety instructions To avoid personal accidents, equipment damage or environmental contamination, you must comply with this user manual and all safety instructions included with the machine. Comply with the regulations and generally accepted technical rules applicable in the country of use of LKMD-08. -
Page 8: General Safety Instructions
1.4 General Safety Instructions The recommended maximum length of the power cord is 2 meters. In addition to sensors and cables sold by MegaRobo® o as replacement parts for internal components, the use of non-specified accessories, sensors and cables may result in increased radiation or reduced immunity of the LKMD-08. - Page 9 1 Safety instructions Be careful to make sure that the power cord does not get stuck and does not touch sharp edges. Repair, commissioning and maintenance operations should only be carried out by the service organization designated by the manufacturer. Never turn on the machine and do not remove any parts unless explicitly stated in this manual.
-
Page 10: Disposal Instructions
1 Safety instructions If certain persons (including children) are unable to use this machine safely due to physical, sensory or cognitive abilities, or due to lack of experience or knowledge, they are not allowed to operate this machine unless under the supervision or guidance of the person in charge. This machine is not intended for children under 8 years of age. -
Page 11: Deactivation
1 Safety instructions 1.6 Deactivation 1.6.1 Packaging Materials Packaging materials (cardboard, EPE, plastic bags, strapping) must be recycled or disposed of in accordance with local regulations. 1.6.2 Disassembling the Device Disassembly and repair of the equipment may only be carried out by the professional personnel of the manufacturer or authorized agent service provider. -
Page 12: Package Marks
1 Safety instructions 1.8 Package Marks sign meaning paraphrase Fragile items, handle with care Keep dry Do not invert Maximum and minimum humidity limits Maximum and minimum temperature limits Limit on the number of stacking layers. The number of vertical stacking layers must not exceed the specified number of items «n»... -
Page 13: Description 2
2 description Description 2 Chapter overview This section provides an overview and introduction to the Swiss-Dairy Dispenser LKMD-08. The technical specifications, illustrations and dimensions contained in these instructions are for presentation purposes only and no claims may be made on this basis. For more information, please consult the manufacturer and see the contact details on the title page. -
Page 14: Overview
2 description 2.2 Overview 2.2.1 Top-stage section (1) Touch screen (2) USB interface (3) Indicator light (4) Dairy dispenser outlet (5) Convenient cup holder (6) Code scanner (7) Removable drainage tray (8) Power switch V2.1-5/2023 @LKMD-08User manual... -
Page 15: Offstage
2 description 2.2.2 Offstage (1) Material box (2) Removable shelves (3) Water tray (4) Check wrench (5) Material interface (6) Shelf quick release connectors (7) Equipment electronic control module V2.1-5/2023 @LKMD-08User manual... - Page 16 2 description Ø Milk carton solutions (1) Silo cover (2) Quick feeding port (including cover). (3) Silo buckle (4) Check wrench card slot (5) Material joint assembly (6) Silicone valve fastening ring (7) Silicone valve (8) Joint assembly fastening ring (9) Silo connector (10) Silo straw V2.1-5/2023...
- Page 17 2 description Ø Milk bag scheme (1) The milk bag connector is at the position of the card On the basis of the milk carton solution, remove the upper lid of the silo • Remove the material joint assembly • V2.1-5/2023 @LKMD-08User manual...
-
Page 18: Important Accessories
2 description 2.2.3 Important accessories (1) Clean the liquid box (3) Clean the cap (2) Clean the valve seat of the liquid tank V2.1-5/2023 @LKMD-08User manual... -
Page 19: Final Assembly Overview
2 description 2.2.4 Final Assembly Overview The freezer is not included in the product body and needs to be equipped additionally. V2.1-5/2023 @LKMD-08User manual... -
Page 20: Technical Data
2 description 2.3 Technical Data 2.3.1 Performance category description Production speed 300ml/15s 30ml-600ml, less than 30ml or greater than 300ml, production time and loss Production range may be affected 30-100ml，±5ml 101-200ml，±8ml Production precision 201~300ml，±10ml Medium: Whole milk 2.3.2 Dimensions and weight of the machine Ø... -
Page 21: Electrical Data And Power Supply
2 description 2.3.3 Electrical data and power supply description value voltage 220V AC frequency 50Hz plug Single-phase three-pin plug 10A Rated power 80watts (Printing) Power cords and plugs must comply with local regulations. 2.3.4 Environmental Conditions Do not use the LKMD-08 outside the specified environmental conditions. description value Operating... -
Page 22: Other Specifications
2 description 2.3.5 Other Specifications description value Maximum number of 8 pcs silos Supported carton capacity Supported milk pack 10L size milk bag for dairy dispenser capacity Silo in-place detection Silo interface sensors 1in place 6 Material inspection 2 flow meters Exhibit port support Luckin coffee store-specific milk tanks, store-specific 16 oz/12oz ice cups container... -
Page 23: Nameplate
2 description 2.3.6 Nameplate Location: Located on one side of the backplane of the understage equipment, near the upper part of the backplane. Illustrate: The weight is the weight of bare metal without packaging. Barcode meaning: Product serial number. 2.4 Luckin Coffee APP The use of the full function of LKMD-08 requires the installation of Luckin Coffee's dedicated APP, and the specific APP operation mode is determined by Luckin Coffee. -
Page 24: Debug 3
3 debugging Debug 3 Chapter overview This section describes initial setup of the machine and how to modify the factory parameters. 3.1 Requirements to be met before commissioning Before debugging the machine, it is necessary to read the content in [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. - Page 25 2 description the parameters, please contact the manufacturer to update the SDK package. V2.1-5/2023 @LKMD-08User manual...
-
Page 26: Use 4
4 use Use 4 Chapter overview This section describes the initial setup of the machine and how to modify the factory parameters. Before using the machine, you must read the content in [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. 4.1 Daily Use Instructions Please use the machine in strict accordance with the following order, and the cleaning cycle for making drinks is detailed in... -
Page 27: Boot
4 use Perform the calibration process only when the device is powered on for the first time, when the device has not been used for a long time, or when a device accuracy offset requires calibration, not each time. For daily operations, there is no need to shut down the equipment, and it is recommended to perform shutdown operations if and only when it is not open tomorrow. -
Page 28: Supplementary Materials
4 use 4.3 Supplementary Materials This section only describes the external operation, and the specific screen interaction method can be found in the Luckin Coffee APP operation manual. In the event of any conflict between the contents of this chapter and the Luckin Coffee APP Operation Manual , the APP Operation Manual shall prevail. - Page 29 4 use 3. It is recommended that the maximum capacity of replenishment should not exceed 8L, that is, the position of the silo scale line 8L 4. After pouring, cover the small lid, push the silo back into the equipment, and reset the check wrench.
-
Page 30: Feeding In The State Of The Milk Pack
4 use 4.3.2 Feeding in the state of the milk pack 1. Open the freezer door, wrench the check wrench, pull out the silo horizontally, and gently lift the bin up after feeling the resistance, you can continue to pull out the bin. 2. -
Page 31: Confirm Machine Status
4 use 4.4 Confirm machine status Before entering the operation state, confirm the status of the machine, which is an effective guarantee for normal operation. Confirm the item Correct state No alarm, including pumps, valves, silos, sensors, communication and other Device alarm status abnormal information Equipment... -
Page 32: Making Drinks
4 use 4.5 Making drinks 4.5.1 Use Listing Cup Listings After the customer places an order, the system prints the order label. 2. Attach the order label to the cup Put the cup into the cup holder, the label on the cup is facing the code scanner, the code scanner will have a "drop"... -
Page 33: Production Using A Milk Tank
4 use 4.5.2 Production using a milk tank 1. After the customer places an order, the system prints the order label. 2. Attach the order label to the cup (hot drink cup) 3. Align the QR code on the hot drink cup with the code scanner of the dispenser, and after entering the order, the screen will prompt you to place the... -
Page 34: Use Tall Containers Such As Blenders/Shakers
4 use 4.5.3 Use tall containers such as blenders/shakers 1. After the customer places an order, the system prints the order label. 2. Attach the order label to the cup 3. Align the QR code on the cup with the code scanner of the dispenser, enter the order, and after the code is successfully scanned, the... -
Page 35: Using Screen Clicks To Select Products
4 use Follow the prompts to remove the container and proceed to the next stage of production 4.5.4 Using Screen Clicks to Select Products When encountering an emergency and cannot use the QR code production, you can use the production function on the touch screen, and the specific interface operation method is detailed in the Luckin Coffee APP operation manual. -
Page 36: Cleaning 5
5 clean Cleaning 5 Chapter overview This section describes how the machine is cleaned. Before cleaning the machine, it is necessary to read the content in [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. When cleaning the device with detergent, handle it carefully and avoid it in the eyes! Do not put any components of the LKMD-08 in the dishwasher 5.1 Cleaning Schedule Dairy dispensers must be cleaned regularly to prevent clogging and ensure smooth operation. -
Page 37: Cleaning Operations
5 clean 5.2 Cleaning Operations This section only describes the external operation, and the specific screen interaction method can be found in the Luckin Coffee APP operation manual. In the event of any conflict between the contents of this chapter and the Luckin Coffee APP Operation Manual , the APP Operation Manual shall prevail. -
Page 38: Surface Cleaning Of The Equipment
5 clean 5.2.2 Surface cleaning of the equipment Use a clean, soft rag to thoroughly wipe down the machine surface, including the top, front and sides, to keep the machine surface clean. 5.2.3 Equipment material pipeline cleaning This module only describes the operation related to external devices, detailed operation steps, and the APP has clear guidance and demonstration. - Page 39 5 clean 1. Press and hold the wetting button on the screen to enter the daily cleaning mode and follow the on-screen prompts to perform a series of operations 2. Open the freezer door, wrench the check wrench, and pull out all the silos in turn 3.
- Page 40 6 clean 5. When prompted, remove the cup holder and drain tray from the upper part of the countertop 6. The cleaning liquid tank is filled with the specified volume of cleaning liquid, and the box with the cleaning liquid is assembled on the table, and the cleaning box valve seat is connected to the joint in the sink 7.
-
Page 41: Calibrate 6
5 clean Calibrate 6 Chapter overview This section describes the initial setup of the machine and how to modify the factory parameters. Before calibrating the machine, it is necessary to read the contents of [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. The machine needs to be calibrated regularly to ensure stable production accuracy, and it is recommended to perform accuracy calibration at least once every 3 months. - Page 42 5 clean Ø Calibration steps Before performing the calibration operation, the pipeline needs to be cleaned to ensure that the pipeline is clean and free of material residue. For details, please refer to [5 Cleaning]. Before performing the calibration operation, ensure that the water pressure of the equipment is stable.
-
Page 43: Maintenance 7
7 maintenance Maintenance 7 Chapter overview This section describes how the machine is cared for. Before maintaining the machine, it is necessary to read the content in [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. Non-professionals are prohibited from disassembling the machine! Failure to do so can lead to serious electrical safety risks! 7.1 Maintenance intervals... -
Page 44: Maintenance Content
7 maintenance Ø The main component life of LKMD-08 is as follows: parts Design for service life A single silo has accumulated 100 0 insertions Silo silicone valve Or replace when severely discolored, damaged Gear pump motor 10000 hours, or replacement if damaged flowmeter 10000 hours, or replacement if damaged Solenoid valve... - Page 45 7 maintenance Ø The maintenance procedure of LKMD-08 is as follows: Process illustrate Clean the device thoroughly Disassemble the machine and clean the inside of the device Life of food contact parts The life of electrical components Check aging component and device operating Wear and failure of mechanical logs components...
-
Page 46: Troubleshooting 8
8 Troubleshooting Troubleshooting 8 Chapter overview This section describes the machine's user interface warning messages, lists possible faults and how to troubleshoot them. Before using the machine, you must read the content in [1.4 General Safety Instructions] and fully understand the safety risks of the equipment. This chapter lists possible daily operation failures: serious failures, faults that need to check electrical connections in corrective actions, faults involving food safety, please contact maintenance personnel to deal with them! -
Page 47: List Of Faults
8 Troubleshooting 8.2 List of faults Ø Structural failure Structural faults are not displayed on the screen, there is no other active form of feedback, and need to be actively viewed and checked, encountered and observed during daily use and maintenance. - Page 48 8 Troubleshooting Ø Software and electrical failures Software and electrical faults can be displayed on the screen or other interactive means, and the following table can be consulted for corrective action in the event of an alarm. Possible software and electrical failures of LKMD-08 are as follows: Description of the problem Corrective actions The silo opening could not be...
- Page 49 8 Troubleshooting the equipment. It is up to an electrician to check whether the ground wire of the equipment is properly connected, and false ground wire can also cause this problem. Call service. Follow the Luckin Coffee APP operation manual The app needs to be updated or use a USB flash drive to update the APP through the USB port on the left side of the device.
-
Page 50: Frequently Asked Questions
8 Troubleshooting 8.3 Frequently Asked Questions Ø No material is discharged Check the screen alarm information. Check that the silo is empty. Restart your device to see if things improve. If none of the above works, call your service personnel. Ø... -
Page 51: Option 9
9 Options Option 9 Chapter overview This chapter describes the options for the LKMD-08. The device only supports the use of specified accessories, and the use of unauthorized other accessories may result in damage to the device or a safety risk! 9.1 Universal Options category The name of the offer... -
Page 52: General Accessories
9 Options 9.3 General Accessories category The name of the offer Purpose remarks PCB main control board Android control pad Material module board flowmeter Solenoid valve Gear pumps Electrical parts Barcode scanner touch screen Power adapter Inlet pressure reducing valve Micro switch Level sensors Concentration sensor... -
Page 53: Packaging & Shipping 10
10 Packaging & Shipping Packaging & Shipping 10 Chapter overview This chapter describes the packaging and warehousing and shipping information of the LKMD-08. Equipment turnover and installation is a professional operation, which needs to be carried out by the equipment manufacturer or the designated service organization, assigned by professionals! V2.1-5/2023 @LKMD-08User manual... -
Page 54: Packing List
10 Packaging & Shipping 10.1 Packing List serial number description quantity LKMD-08 on-board mainframe LKMD-08 under-set host Dairy material box (with lid and connector assembly) Silicone valve Clean the connector cap Sink under the counter Wash the liquid cartridge on the countertop Cup holder on stage Drain tray on the countertop Power adapter... -
Page 55: Warehousing & Transportation
10 Packaging & Shipping 10.2 Warehousing & transportation For environmental requirements during equipment storage and transportation, please refer to 2.3.4 Environmental Conditions]. For specific operation steps of warehousing and transportation, please refer to the "Equipment Installation Guide" manual. Only use the original packaging of the device for shipping and turnaround, otherwise it may result in damage to the device! Thoroughly clean the equipment before shipping! For details, please refer to [5 Cleaning]. -
Page 56: Warranty 11
Chapter overview This chapter describes warranty limits and the definition of personnel terms regarding the machine. 11.1 Warranty Limitations MEGAROBO® assumes no liability for: Improper use of dairy dispensers. Unauthorized modification (voluntary or involuntary). Failure to comply with the actions indicated in the product manual. -
Page 57: Glossary
10 Packaging & Shipping 11. 2 Glossary used This section describes the terminology in this manual. 1 1.2.1 Personnel manufacturer See the "Manufacturer" information on the title page. user "User" means the end user who uses the Dairy Dispenser to make the Dairy Products. operator "Operator"... - Page 58 MegaRobo Technologies Co., Ltd No. 277, Dongping Street, Suzhou Industrial Park, Suzhou Jiangsu Province, China 400 0601 017 OFFICIALMAIL@MEGAROBO.TECH https://www.megarobo.tech V2.1-5/2023 @LKMD-08User manual...
