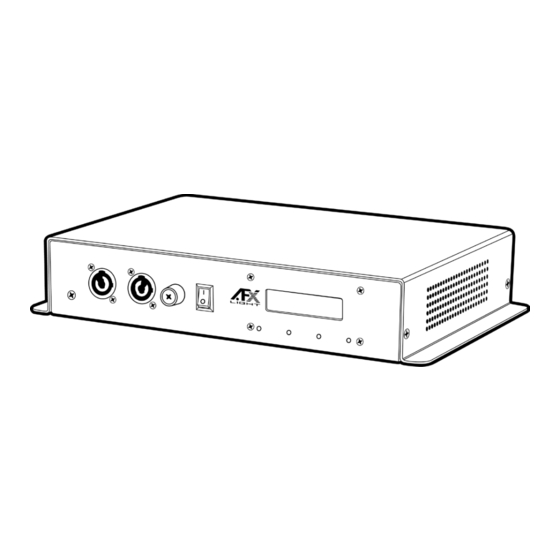

Pixel strip controller
Hide thumbs Also See for PIXSTRIP-C 16-2715:

Advertisement

Quick Links

PIXEL STRIP
USER MANUAL
MANUEL D'UTILISATION
BEDIENUNGSANLEITUNG
CONTROLLER
HANDLEIDING
PIXSTRIP-C (16-2715)
Lotronic SA
Avenue Zénobe Gramme 9
1480 Saintes
Belgium

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXSTRIP-C 16-2715 and is the answer not in the manual?

Questions and answers

Summary of Contents for afx light PIXSTRIP-C 16-2715

  • Page 1 PIXEL STRIP USER MANUAL MANUEL D'UTILISATION BEDIENUNGSANLEITUNG CONTROLLER HANDLEIDING PIXSTRIP-C (16-2715) Lotronic SA Avenue Zénobe Gramme 9 1480 Saintes Belgium...
  • Page 2 Safety Instructions Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product. • Please keep this User Guide for future reference. If you sell the unit to another user, be sure that they also receive this instruction booklet.
  • Page 3 Product Overview: Mounting The pixel-Strip Drive has four (4) mounting points (one on each corner) with 10mm holes to which you can install screws and mount this product directly to almost any flat surface, truss, or other load bearing structure in any orientation. The product may also be installed with clamps for hanging on truss. You must supply your own clamps and make sure the clamps are capable of supporting the weight of this product.
  • Page 4 · Make sure that the structure or surface onto which you are mounting the product can support the product’s weight (see the Technical Specifications). · When mounting the product overhead, always use a safety cable. Mount the product securely to a rigging point, such as an elevated platform or a truss.
  • Page 5 Connecting Pixel Strip Products to the Power Supply: The Pixel Strip ™Drive uses an RJ45 data connection to link all data ports. You can connect either 4 or Pixel Strips per output on the Pixel Strip Drive The following diagram illustrates how to assemble the data connections Each port of Drive can support 4 pc.
  • Page 6 Drive Power Linking Diagram: MENU: ©Copyright LOTRONIC 2018 PIXSTRIP-C Page 5...
  • Page 7 Technical Parameters: Size:204x260x88mm  Power Supply: Auto-ranging 100v to 240v,50/60Hz  Consumption:300W  Data Connections: RJ45 for Kling-net & Art-net and DMX  IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
