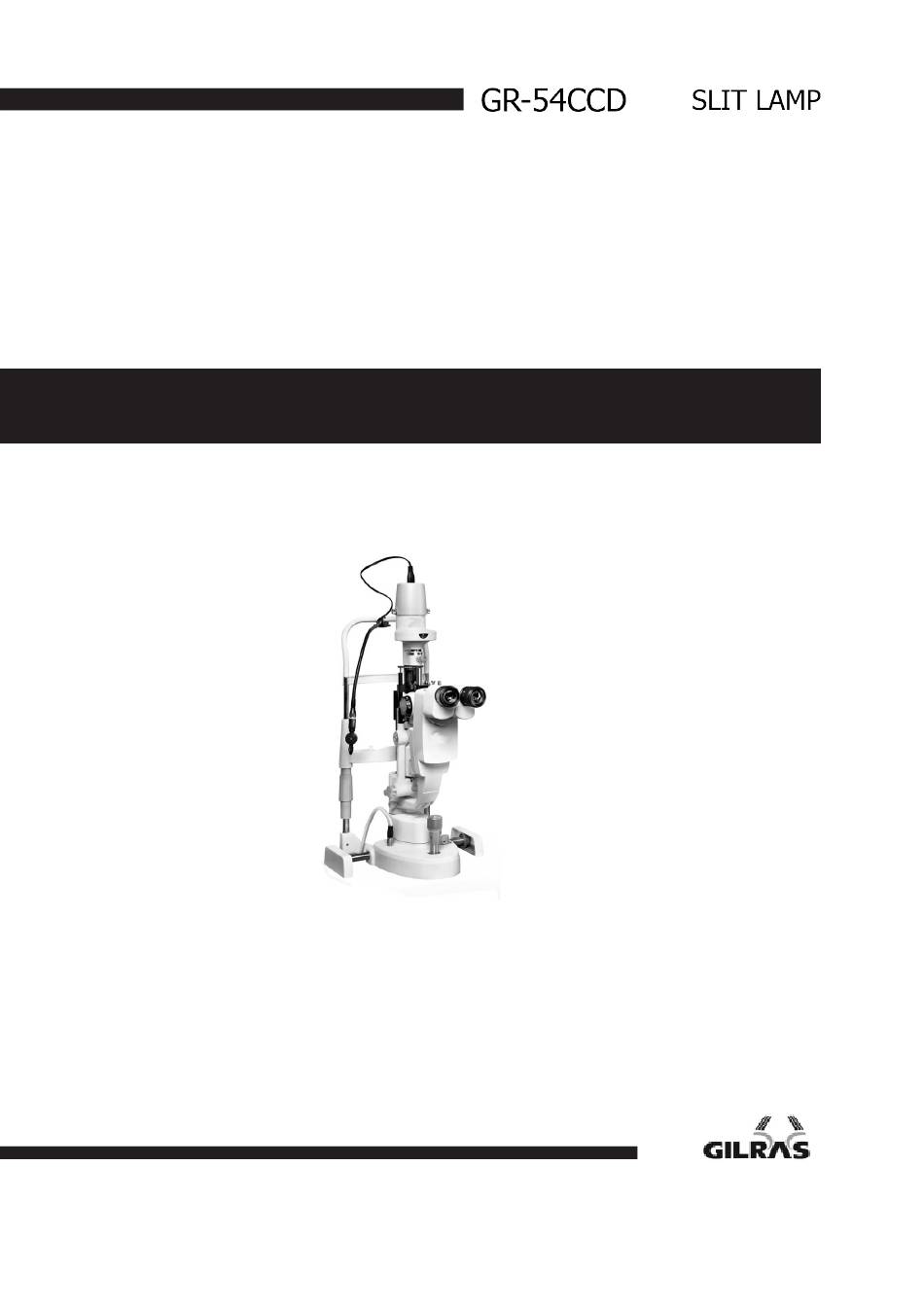

USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR-54CCD and is the answer not in the manual?

Questions and answers

Summary of Contents for Gilras GR-54CCD

  • Page 1 USER'S MANUAL...
  • Page 2 Version：1.0 SLIT LAMP USER MANUAL Thank you for purchasing our slit lamp microscope！The following is the description and specification of our product. General description This user manual elaborates on the relevant technical specification and operation notes of our slit lamp. Working principle: A beam of light attached to the slit lamp projects to the patients’...
  • Page 3 Version：1.0 SLIT LAMP USER MANUAL Format of image: JPEG Resolution of video: 1920×1080（Full HD） Compatible of 1296×960 & 1280×720 Frame rate of video: 25-30fps Format of video: AVI (MJPEG), MPEG4 Mode of focus: Auto-focus/Focus by moving the roller of the mouse Mode of exposure: Auto-exposure, auto-gain Transmission interface:...
  • Page 4 Version：1.0 SLIT LAMP USER MANUAL General Requirements for Safety Please read carefully the following precautions to avoid unexpected personal injury as well as the product being damaged and other possible dangers. Precautions 1. In case there is any trouble, please first refer to the trouble-shooting guide. If it still can’t work, please contact the authorized distributor or our Repair Department.
  • Page 5 Version：1.0 SLIT LAMP USER MANUAL THE SAFETY MARKS, PICTURES USED IN THIS INSTRUMENT mark Description TYPE B DATE Class I The slit lamp is type I medical using equipment Type B English form of B type WEEE mark Please deal with the waste disposal produced by the machine following relevant laws and regulations.

  • Page 6: Table Of Contents

    Version：1.0 SLIT LAMP USER MANUAL Contents NOMENCLATURE ..............................7 ASSEMBLY ................................10 ............................... 10 HECK ............................. 11 SSEMBLY PROCEDURE ...................... 14 HECKING PROCEDURE AFTER ASSEMBLING OPERATION PROCEDURES ..........................15 ................15 IOPTER COMPENSATION AND UPIL ISTANCE ADJUSTMENT ....................16 ATIENT POSITION AND USE OF FIXATION TARGET ...............................

  • Page 7: Nomenclature

    Version：1.0 SLIT LAMP USER MANUAL 1 Nomenclature...
  • Page 8 Version：1.0 SLIT LAMP USER MANUAL 1. Joystick Incline joystick to move the instrument slightly on the horizontal surface and rotate it to adjust the elevation of the microscope. 2. Brightness Control Switch The brightness can be adjusted continuously. Avoid working continuously at high setting, as the service life of the bulb will be shortened.
  • Page 9 Version：1.0 SLIT LAMP USER MANUAL To fix the patient’s head on an appropriate position 19. The Fixation Knob of Chin-rest Paper It is used to fix the chin-rest paper. 20. Background illumination module Provide auxiliary illumination when taking images. 21. Fixation target Make the patient stare at it, it is convenient for checking 22.

  • Page 10: Assembly

    Version：1.0 SLIT LAMP USER MANUAL Assembly This section of the manual describes how to assemble the slit lamp. All parts should be taken out with great care from the packing case before assembling. Check List MARK NAME QUANTITY NOTE Head-rest part Fig.2.1.1 Fig.2.1.2 Microscope part...

  • Page 11: Assembly Procedure

    Version：1.0 SLIT LAMP USER MANUAL Fig. 2.1.4 Fig. 2.1.5 Fig. 2.1.6 Fig. 2.1. 7 Fig.2.1.3 （Fig.2.1.4）on to the power table, please Assembly procedure screw off four M6x20mm bolts with the 1．Open the carton，take out the tools like spanner .（Fig.2.2.1 A Team）. screw driver and spanner.
  • Page 12 Version：1.0 SLIT LAMP USER MANUAL retighten the previously removed screws. （Fig.2.2.5 and 2.2.6）. Locking Screw on Base Fig.2.2.2 Rails screw Fig.2.2.5 connect with the electrical table 6．Connect two white adapters under table board，Turn on and press Up & Down switch to check whether the power table Rail is normal.（Fig.2.2.3）.
  • Page 13 Version：1.0 SLIT LAMP USER MANUAL Fasten locking screw Please make sure the power cord of slit lamp is not connected with main power. Connect the link wire of brightness control knob on the base to the corresponding socket on the power box (Fig.2.2.9).

  • Page 14: Checking Procedure After Assembling

    Version：1.0 SLIT LAMP USER MANUAL 16. Clear up all the tools and accessories and then put them into the draw under table top. Fig. 2.2.10 Checking procedure after assembling Fig.2.3.1 17. This instrument supplies a 3-wire cable. Please select a proper power socket as matched.

  • Page 15: Operation Procedures

    Version：1.0 SLIT LAMP USER MANUAL the adjustment. Insert test rod into the hole Fig.2.3.3 Joystick n dial Magnificatio Fig.3.1.1 ②Brightness adjustment Switch on the main power switch and set the brightness control switch (Fig.3.1.3) at central part. Turn the slit width control knob (Fig.2.3.1) to make the slit width to Fig.2.3.4 be 2~3mm.

  • Page 16: Patient Position And Use Of Fixation Target

    Version：1.0 SLIT LAMP USER MANUAL Record the diopter value on each Background illumination module eyepiece for future reference. This is used to provide supplementary illumination. Press the red button to turn Diopter on the module. And the module can be adjustment ring rotated to the comfortable angle the user need.

  • Page 17: Operation Of Illumination Unit

    Version：1.0 SLIT LAMP USER MANUAL Changing the aperture and slit height While watching though the eyepieces, tilt the joystick to aim accurately at the object Turn the aperture and slit height control for a fine image. (Fig.3.3.1) knob and 7 different circular beams of light are available at full aperture: Joystick 14,10,5,32,,1,0.2 Dia.

  • Page 18: Operation Notes

    Version：1.0 SLIT LAMP USER MANUAL carry out the right operation and diagnosis. Fig.3.4.3 order prevent unnecessary observations arising from the misuse of the judge, operators should observe clearly the different locations in the knob corresponding to a different scale and different directional Center knob marks in the process of using the SLM.

  • Page 19: Cleaning And Disinfection

    Version：1.0 SLIT LAMP USER MANUAL Cleaning and disinfection: 4.1.2 Cleaning circle a) Clean the eyepieces, objective lens Attention: replaced waste and refractor: materials should be treated as industrial Cycle: suggested once every two months. rubbish. The lenses are plated with a reflection Cleaning reducing coating and reflective coating on its surface.

  • Page 20: Maintaining

    Version：1.0 SLIT LAMP USER MANUAL Follow the steps listed below to do the Fig.4.2.1 adjustment. Protection hexagon Rotate the locking screw with a type screw driver. Maintaining 5.2.1. Adjust the slit width control knob PART ONE: If the slit width control knob is too loose, the slit width may be out of control.

  • Page 21: Replacing The Fuse

    Version：1.0 SLIT LAMP USER MANUAL the lamp cap from the illumination unit. insert the connecting plug. (Fig.4.5.1& 4.5.2) 5. Turn on the main power switch and check whether bulb illuminating. Check the spot to make sure (Fig.3.1.3) round and no false light. Remove the lamp cap Replacing the fuse...

  • Page 22: Replacing The Chin-Rest Paper

    Version：1.0 SLIT LAMP USER MANUAL Replacing chin-rest paper When the paper is depleted, pull upward two fixing pins of the chin-rest and place a new package of paper, then fix the fixing pins again. (Fig.4.7.1). Pull up pin Fig.4.7.1 Consumables Fuse: 1A/250V …………………….

  • Page 23: Trouble Shooting Guide

    Version：1.0 SLIT LAMP USER MANUAL 5. Trouble shooting guide In case there is any trouble, please check according to the following table for reference. If it still cannot work, please contact the Repair Department of Shanghai MediWorks Precision Instruments Co., Ltd. or an authorized distributor. Trouble Possible cause Remedy...
  • Page 24 Version：1.0 SLIT LAMP USER MANUAL Appendix A Electronic Circle Drawing Control plate Light source AC6V AC3V Fixation target Transformer Brightness control knob Appendix B Illustration of the board of power box: Fuse box Power socket 110V/220V voltage selector Fixation lamp socket Illumination lamp socket Brightness control knob socket Assembly of power supply:...
  • Page 25 Version：1.0 SLIT LAMP USER MANUAL Please connect the slit lamp with power supply (as fig. 1 shows). Refer to Fig.2, take out the link wire of brightness control knob on the base and connect it to the corresponding socket on the power box.
