iclever BTH15 - Wireless Headphones Manual

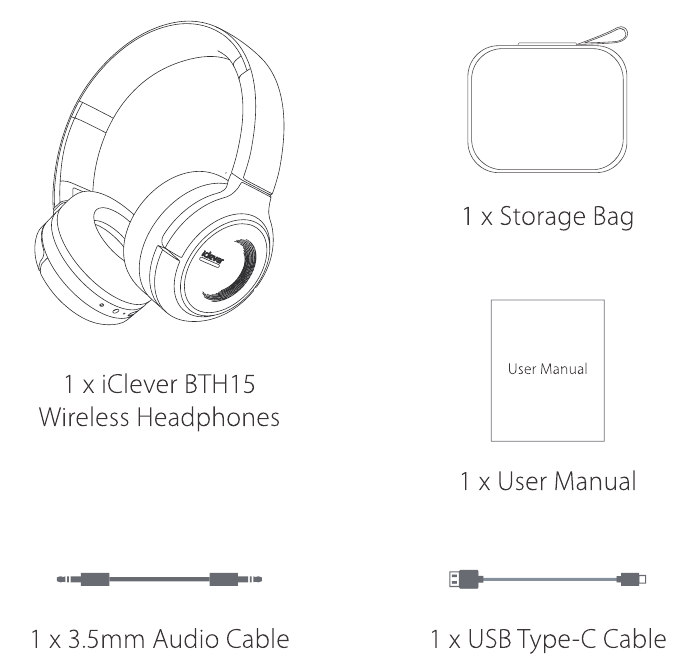

Package Contents

Product Diagram

On / Off

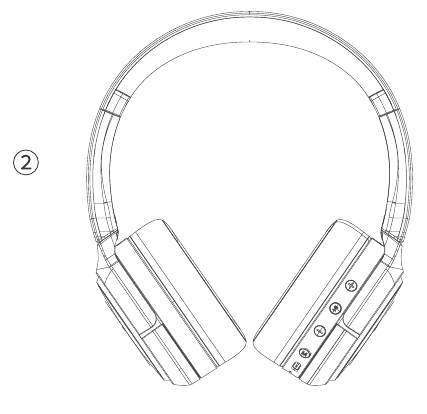

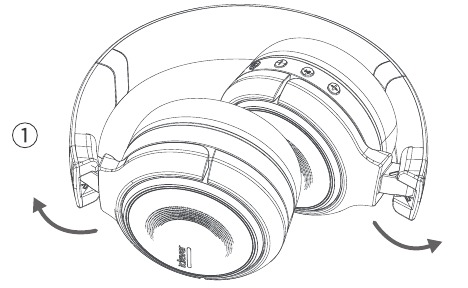

If the headphone is folded, just unfold it. Then it will be auto on, the colorful lights will be also on, and the headphone will enter the pairing mode.

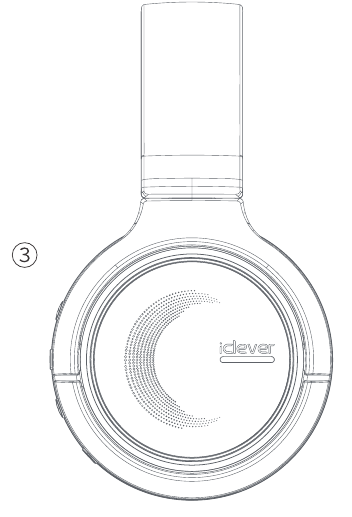

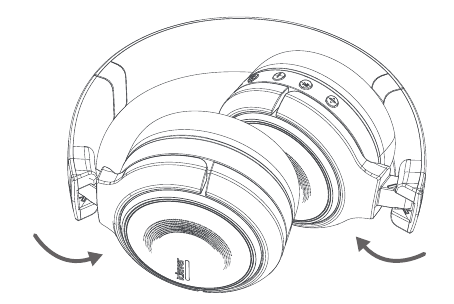

When the headphone is folded as shown below, it will be auto off.

Note: If there is an abnormal situation, press and hold the MFB button for 3-5S to turn the headphone on and enter the pairing mode.

Bluetooth Pairing

In the power-on state, the colorful lights are on; Bluetooth enters the pairing state, and the red and blue lights flash alternately.

Turn on the Bluetooth of the mobile phone. Then find and select the "iClever-BTH15" Bluetooth pairing name in the device list for Bluetooth pairing connection.

Light Mode Switching

Short press the "Light Mode Switch Button" to turn on/off the light.

Volume Limit Gear Switching

Press and hold the "+" &"-" buttons at the same time to switch the volume limit to the safe volume of 85dB, and the voice broadcast will be "Safe Volume",
Press and hold the "+" &"-" buttons at the same time to switch the volume limit to the normal volume mode, and the voice broadcast will be "Normal Volume'.

Operation of Buttons

Volume Up	Short press the "+" button.
Volume Down	Short press the "-" button.
Next Track	Press and hold the "+" button for 2 seconds.
Previous Track	Press and hold the "-" button for 2 seconds.
Play / Pause	Press the MFB button once.
Answer / End A Call	Press the MFB button once.
Reject A Call	Keep pressing the MFB button for seconds.
Activate Siri	Press the MFB button twice.
Clear The Pairing List	After the Bluetooth is turned on, in any state, press and hold the "multi-function button" and "-"button at the same time for 5 seconds to clear the pairing list in the headphone.

Voice Prompt

Power On	Power on
Power Off	Power off
Pairing	Pairing
Successful Pairing	Connected
Disconnection	Disconnected
Low Power	Battery Low

Specification

Frequency band	2.4GHz~2.482GHz
Maximum transmission power	4dBm

How to Charge the Headphone

Connect the Type-C cable to the Type-C port on the headphone, and a 5V power outlet (power adapter is not included). The indicator light will glow red to indicate charging. When the headphone is fully charged, the indicator light will change from red to blue.
