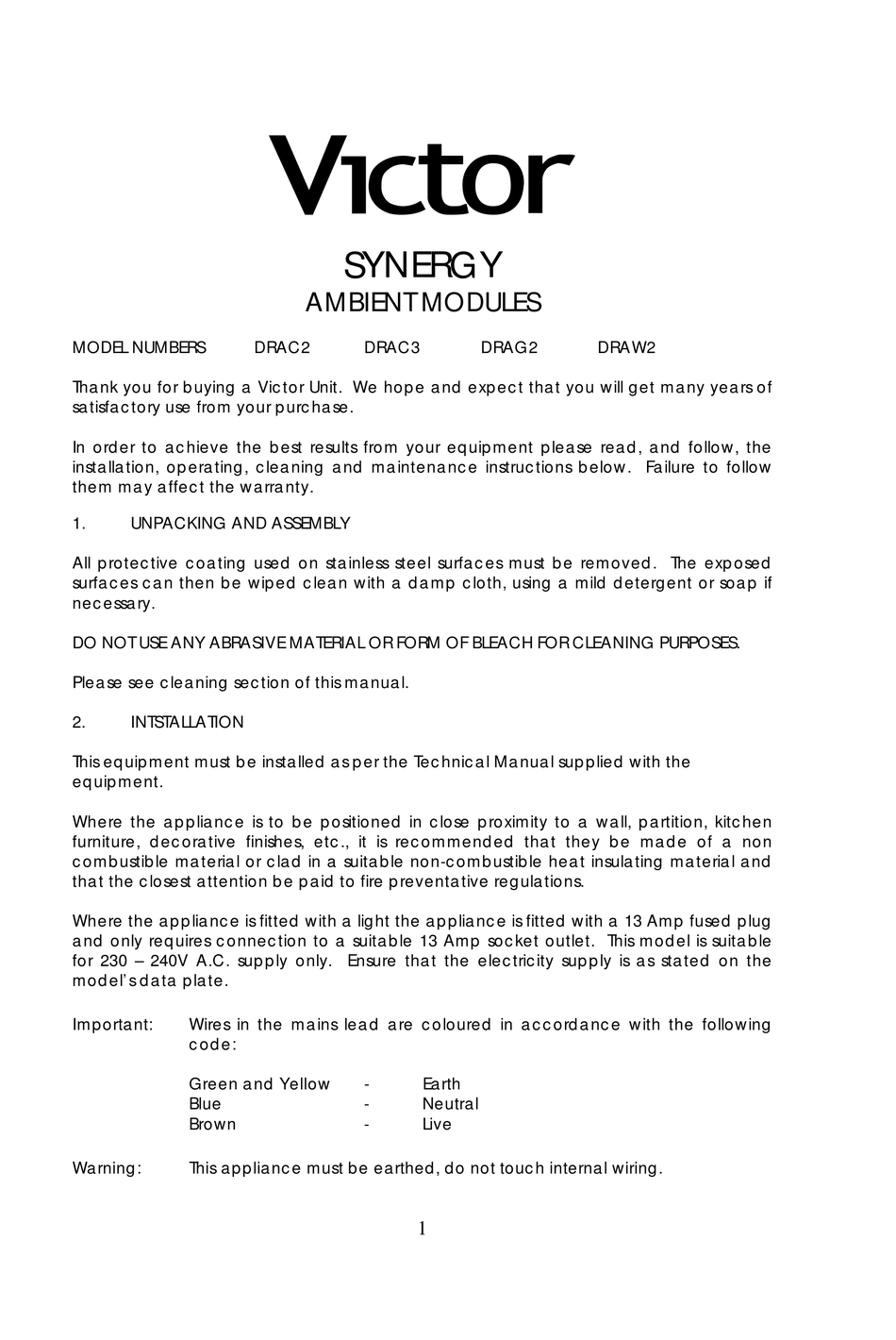

MODEL NUMBERS
Thank you for buying a Victor Unit. We hope and expect that you will get many years of
satisfactory use from your purchase.
In order to achieve the best results from your equipment please read, and follow, the
installation, operating, cleaning and maintenance instructions below. Failure to follow
them may affect the warranty.
1.
UNPACKING AND ASSEMBLY
All protective coating used on stainless steel surfaces must be removed. The exposed
surfaces can then be wiped clean with a damp cloth, using a mild detergent or soap if
necessary.
DO NOT USE ANY ABRASIVE MATERIAL OR FORM OF BLEACH FOR CLEANING PURPOSES.
Please see cleaning section of this manual.
2.
INTSTALLATION
This equipment must be installed as per the Technical Manual supplied with the
equipment.
Where the appliance is to be positioned in close proximity to a wall, partition, kitchen
furniture, decorative finishes, etc., it is recommended that they be made of a non
combustible material or clad in a suitable non-combustible heat insulating material and
that the closest attention be paid to fire preventative regulations.
Where the appliance is fitted with a light the appliance is fitted with a 13 Amp fused plug
and only requires connection to a suitable 13 Amp socket outlet. This model is suitable
for 230 – 240V A.C. supply only. Ensure that the electricity supply is as stated on the
model's data plate.
Important:
Wires in the mains lead are coloured in accordance with the following
code:
Green and Yellow
Blue
Brown
Warning:
This appliance must be earthed, do not touch internal wiring.
V
SYNERGY
AMBIENT MODULES
DRAC2
DRAC3
-
-
-
DRAG2
Earth
Neutral
Live
1
DRAW2
Advertisement
Table of Contents
Summary of Contents for Victor DRAC2
- Page 1 DRAG2 DRAW2 Thank you for buying a Victor Unit. We hope and expect that you will get many years of satisfactory use from your purchase. In order to achieve the best results from your equipment please read, and follow, the installation, operating, cleaning and maintenance instructions below.
- Page 2 As the colours of the wires in the mains lead on this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal in the plug, which is marked with letter E or the sign .
- Page 3 Do not use metal scrapers, wire brushes or wire wool pads as they can scratch the steel. Do take care when handling sharp objects as they can scratch the surface of stainless steel. Any scratches on stainless steel will blend together over a period of time and become less noticeable with age.
- Page 4 The Victor Manufacturing Ltd warranty does not affect any legal rights you have against the person who supplied your Victor Manufacturing Ltd goods or any other legal right against Victor Manufacturing Ltd under the laws of the United Kingdom – it is an addition to those rights.
- Page 5 No fault found warranty calls and installation errors are not covered under Victor Manufacturing Ltd warranty and will result in a charge being made for the callout and on-site labour for our appointed engineer. The Victor Manufacturing Ltd warranty does not cover the replacement of used consumables, or parts that require period adjustment or lubrication, unless the part is faulty.
