Radio plug adapter switch in SCHUKO socket housing
Radio plug adapter switch in SCHUKO socket housing
Art.-No.: FZS 10 WW
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect the device from the socket outlet before
carrying out work on the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Even when the device is switched off, mains voltage may be present on the load,
because only 1 pole is switched off.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

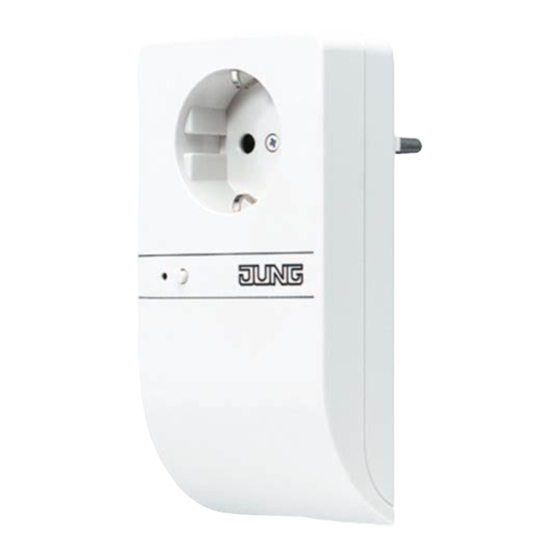

2 Device components
(1) Switch adapter plug
(2) LED
(3) Programming button
(4) Fine-wire fuse
3 Function
System information
By statute, the reception characteristics and the antenna cannot be changed.
The device may be operated in all EU and EFTA countries.
The declaration of conformity can be viewed on our website.
32526813
J:0082526813

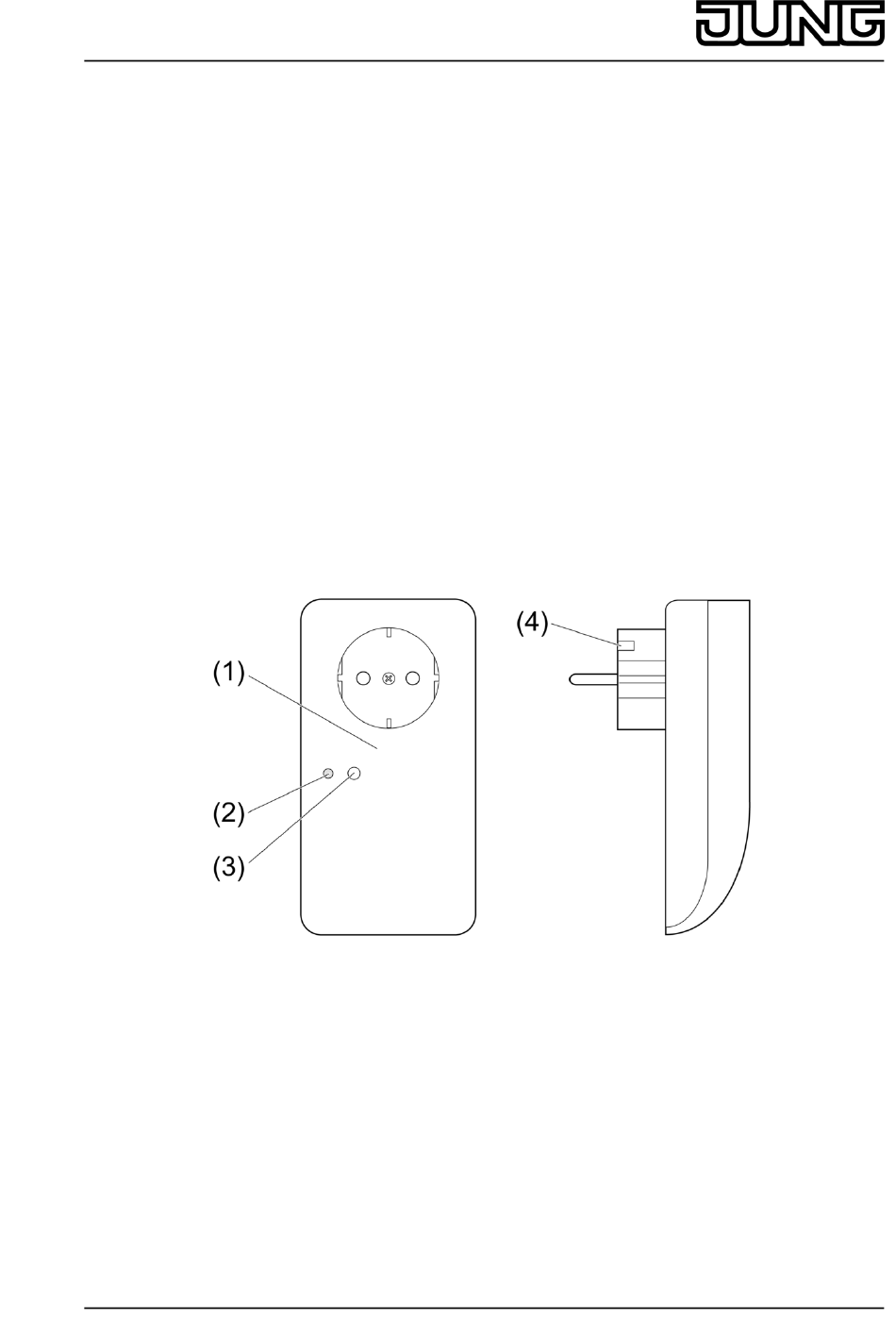

Figure 1
1/5
20.12.2010
