Safety Information Warning! DO NOT use this product with an incompatible, unstable, or ungrounded power supply. Only • use with well-grounded 3-prong 110V/60Hz outlets. Do not use a 3 to 2-prong adapter to allow it to run from an ungrounded outlet. •...

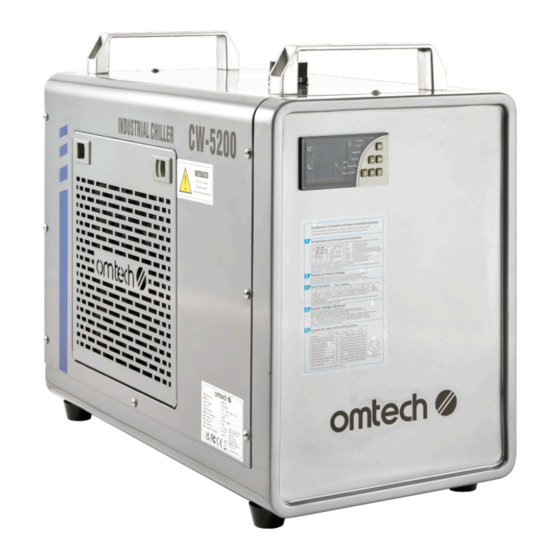

Package List 1 × Industrial Chiller 1 × Alarm Signal Output Plug 1 × Power Cord 1 × Spare Fuse Parts Diagram Front Control Panel Air Inlet & Filter Back Filling Port Cooling Water Outlet Alarm Output Terminal Cooling Water Inlet Power Switch Water Level Gauge Spare Fuse...
Installation 1. Fill the water tank with distilled or deionized water. For cooling carbon steel equipment, include the appropriate amount of anticorrosive additive. DO NOT fill completely. Pay attention to the water gauge and ensure that the water level at the appropriate level.
Operation Control Panel Comp Compressor indicator light Solenoid valve indicator light Heating Heating rod indicator light Intelligent control mode indicator light INT Ctrl The temperature will be kept 3°F (2°C) cooler than the room Users can adjust this value as needed Constant temperature mode indicator light CT Ctrl A constant 77°F (25°C) temperature will be maintained...
Temperature Adjustment Press SET to enter settings mode. Use ▲ and ▼ to modify the desired water temperature. Press RST to save and exit. Press SET to exit without saving. If no activity is detected for 20 seconds, settings mode will also exit without saving. The set temperature will be displayed on the lower readout, and the chiller will bring the actual water temperature to that level over time.
For example: Value in Value in Value in Code Item Defaults Case 1 Case 2 Case 3 Water Temperature Temperature Difference −2 Cooling Hysteresis Control Mode Overheated Water Alarm Overchilled Water Alarm Overheated Room Alarm Password Highest Allowed Water Temperature Lowest Allowed Water Temperature Case 1: The chiller is in intelligent control mode and requires the water to be between 77–88°F (25–31°C).
Troubleshooting Potential Problems Usual Solution(s) Check your electrical connections, fuse box, and The chiller does not turn on. circuit breaker. Increase chilling temperature or decrease the Condensation forms on the chiller. ambient room temperature. Open the water tank inlet to allow air to flow more Water drainage is slow.
Page 9
Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at help@cs-supportpro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
Page 10
L C W - 5 2 0 1 - U S Rev. 21 Apr. 2023...
