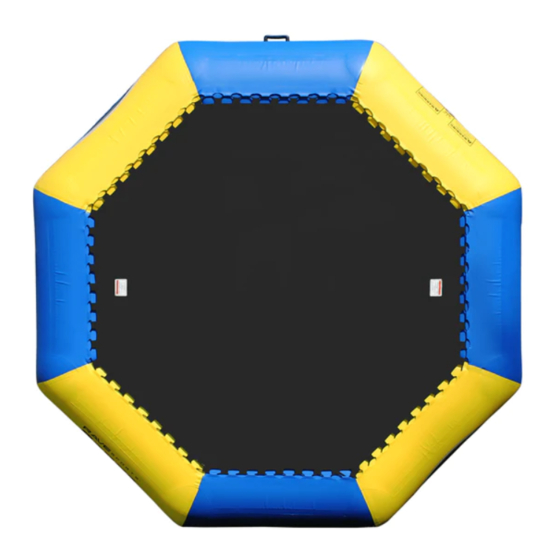

Rave Sports Bongo 10 Owner's Manual
  1. Manuals
  2. Brands
  3. Rave Sports Manuals
  4. Boat
  5. Bongo 10
  6. Owner's manual

Rave Sports Bongo 10 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

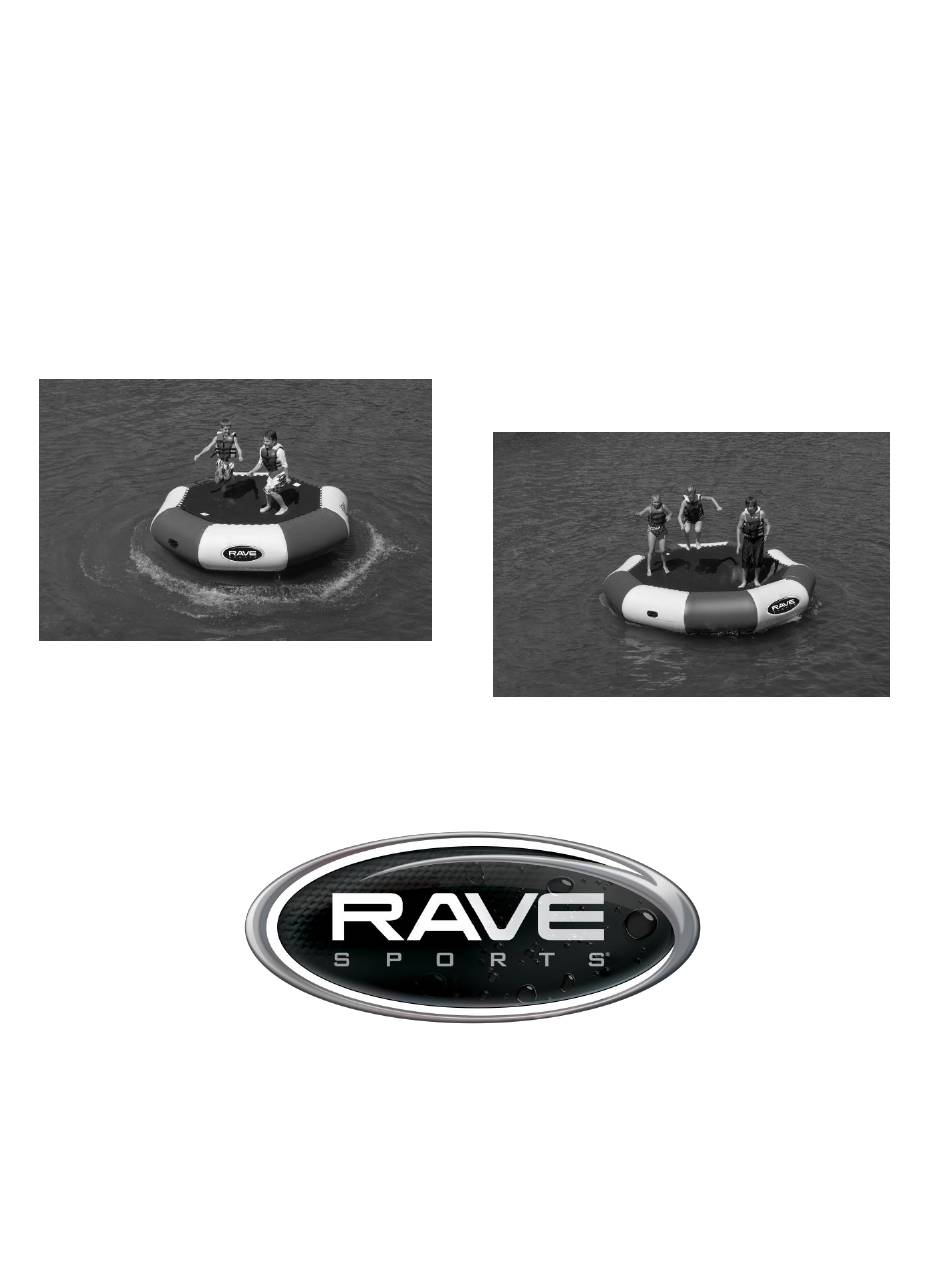

Bongo™ 10 and 13
Owner's Manual
10' Bongo
13' Bongo
WWW.RAVESPORTS.COM
Copyright © 2017
All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopy, recording, or any information storage and
retrieval system, without permission in writing from the publisher. Requests should be mailed to RAVE
Sports, 985 Aldrin Drive #301 Eagan, MN 55121. 800.659.0790

Advertisement

loading
Need help?

Need help?

Do you have a question about the Bongo 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rave Sports Bongo 10

Summary of Contents for Rave Sports Bongo 10

  • Page 1 Bongo™ 10 and 13 Owner’s Manual 10’ Bongo 13’ Bongo WWW.RAVESPORTS.COM Copyright © 2017 All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopy, recording, or any information storage and retrieval system, without permission in writing from the publisher.

  • Page 2: Table Of Contents

    Table of Contents: Introduction ....................2 Safety rules and information ..............3 Bongo ™ 10 ....................7 Bongo ™ 13 ....................8 Inflating your Bongo ................9 Assembling and attaching the ladder ..........11 Cleaning and storage ................14 Repairs ......................15 Package Contents: •...

  • Page 3: Introduction

    Bongo. If you have any questions regarding this product, please call RAVE Sports at 1-800-659-0790, or visit www.ravesports.com. Please have the serial number from your product ready when you call.
  • Page 4 W A R N I N G UNSAFE USE OF THE BONGO CAN RESULT IN PERSONAL INJURY OR DEATH. To reduce the risk of injury, read and follow all instructions and warnings in this manual. Do not use this product unless you understand and accept the risk of injury involved with this activity.

  • Page 5: Safety Rules And Information

    • Make sure that everyone who uses the product is provided with and understands these safety rules and information. • The Bongo 10 & 13 is designed to be used on land or in large bodies of water with depths of at least 8 feet (2,4m) of water.
  • Page 6 • Do not allow more than three people totaling 500 lbs. (227kg) max on the 10ft. (3,1m) Bongo or more than five people totaling 700 lbs. (317kg) max on the 13ft. (4m) Bongo at one time. • Never swim or play under or around the Bongo. •...
  • Page 7 • Use the Bongo only under mature, knowledgeable adult supervision. • Not recommended for children under the age of six. • Do not over inflate. Over inflation can cause seam rupture. • Do not use in shark invested water or in water that may contain other marine life dangerous to humans.

  • Page 8: Bongo ™ 10

    Bongo 10 (Item #02011 & #02086) Product Minimum Maximum Maximum Working Pressure Water Depth Capacity Weight BONGO 10 2 Users 500lb 2 psi (0,14bar) (2,4m) (227kg)

  • Page 9: Bongo ™ 13

    Bongo 13 (Item #02008 & #02236) Product Minimum Maximum Maximum Working Pressure Water Depth Capacity Weight BONGO 13 4 Users 700lb 2 psi (0,14bar) (2,4m) (317kg)

  • Page 10: Inflating Your Bongo

    Step 2 Locate the valve of the Bongo and unscrew the cap. We recommend using the High Speed Inflator/Deflator from RAVE Sports to inflate and deflate. (Part #01083) To lock open valve, depress the stem and OPEN rotate ¼...
  • Page 11 If you will be using another inflation device with a larger nozzle, use the 1 ¼” diameter coupler (included) between the valve adaptor and the output hose of your inflator. Make sure the hose is attached to the blower port of the vacuum for inflation.

  • Page 12: Assembling And Attaching The Ladder

    Attaching the Ladder Step 1 The ladder consists of two pieces: a ladder with straps and a molded plastic ladder stabilizer. Orient the stabilizer on the notched side of the top two ladder steps and the curved portion is facing upwards towards the top of the ladder.
  • Page 13 Step 4: Move the Bongo to shallow water. Attach the ladder in the center of the blue panel to the left of the air valve so that the warning label on the tube is visible to anyone climbing the ladder. The RAVE lettering on the ladder steps should be facing the climber.
  • Page 14 Step 5 When properly installed, the ladder will hang with the curved portion of the stabilizer against the underside of the Bongo and the top handle will be across the edge of the bounce surface. Photo shown with Bongo out of water to show proper ladder orientation and placement.

  • Page 15: Cleaning And Storage

    Cleaning and Storage • When the inflatable product is not being used, store it in a covered, shaded area. This will help protect it against ultraviolet (UV) rays and extend the life of the product. • Clean the inflatable completely with a mild soap and fresh water. NEVER USE PETROLEUM BASED PRODUCTS OR SOLVENTS FOR CLEANING.

  • Page 16: Repairs

    Repairs For large holes, tears or seam failures, contact RAVE Sports Customer Service at 1-800-659-0790. Additional patches may be purchased at www.ravesports.com. For minor holes or tears: • Inflate the product and locate the leak by spraying the tube with mild soapy water.
  • Page 20 WWW.RAVESPORTS.COM RAVE SPORTS A Revel Match, LLC Company 985 Aldrin Drive #301 Eagan MN, 55121 800.659.0790 June 2017...
