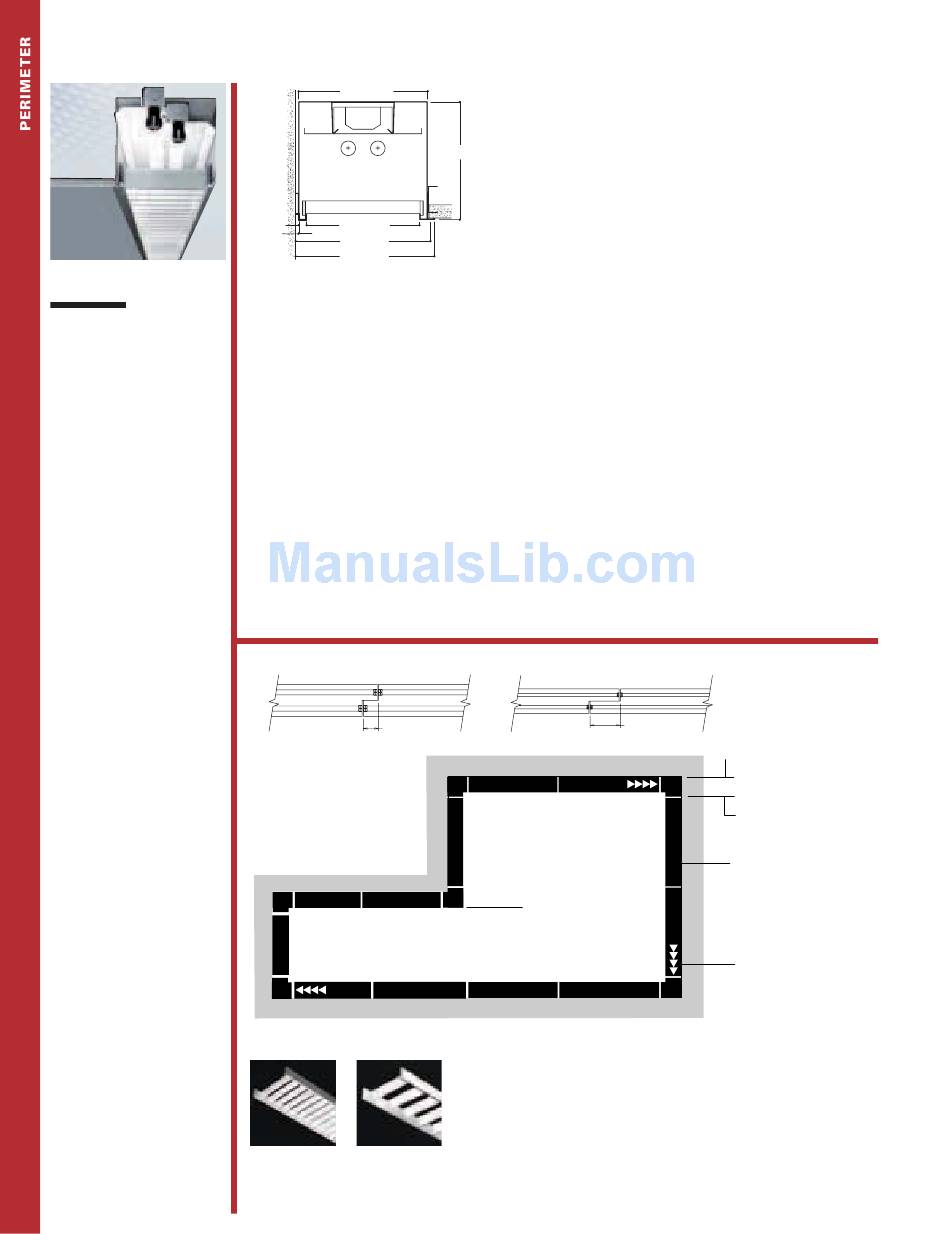

Cooper Lighting Neo-Ray 78 Specification Sheet

NEO-RAY ™
78
D I R E C T
• Direct wall wash light
distribution.
• The light is continuous and
unbroken.
• T5 and T8 lamping.
• Staggered lamps.
• Die formed steel housing,
nominal illuminated sections
3', 4', 6' and 8'.
• Runs are field adjustable.
• 90 degree mitered corners.
• Extruded aluminum ceiling
trims.
• Selection of diffuser options.
768
COOPER LIGHTING
8-23/32" [221mm]
9/16" [15mm] 7-11/16" [195mm]
1/4" [7mm]
9-1/4" [235mm]
CEILING OPENING
9-1/2" [242mm]
Construction
20-gauge steel housing.
Shielding
Parabolic or bold baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Staggered Lamps
T8=3", T5=6"
Mounting
Recessed.
S T A G G E R E D L A M P S
T8
3"
R U N S A N D PAT T E R N S
STANDARD ILLUMINATED
SECTIONS MITERED CORNERS ARE
INSTALLED CONTINUOUS AND
UNBROKEN, AND ARE FIELD ADJUSTED
S H I E L D I N G O P T I O N S
S72 Bold Baffle S79 Parabolic Baffle
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 78-1T8-36-2EB-SI-S72
Series
78=Perimeter
8" [203mm]
Number of Lamps
1=1 Lamp
Lamp Type
T8 T5
* Staggered lighting strips
Run Length
Overall Nominal Run Length__ft. (Any combination of 8', 6', 4' and 3'
sections)
Voltage 1
1=120V 2=277V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S72=White Bold Baffle
S79=Semi-specular Aluminum Parabolic Baffle
1 Due to various constraints, some options may not be combined with others.
2 T8 - 3" Staggered
T5 - 6" Staggered
T5
12 5/16" OUTSIDE
MITERED CORNER
(not included)
2=2 Lamps
T5HO
2
3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching
6"
12-1/16" INSIDE
MITERED CORNER
STANDARD
ILLUMINATED
SECTIONS
FIELD CUT TO SUIT
