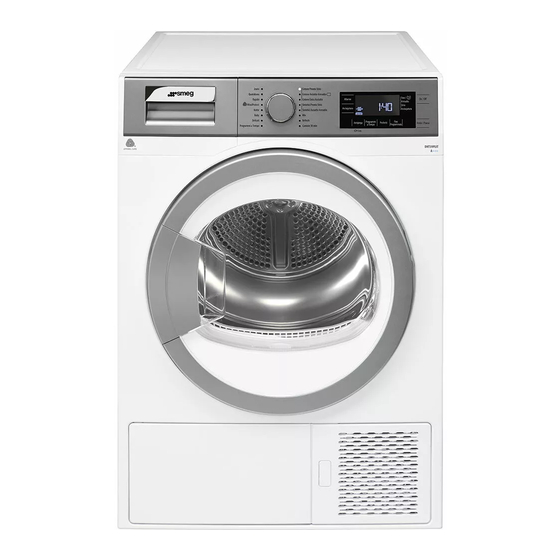

- Page 1 DGA39EX DHT39PLIT Dryer User Manual Asciugatrice Manuale utente 2960311853_EN/231018.1504...
-
Page 2: Please Read This User Manual First
Dear Customer, Thank you for prefering a Smeg product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. -
Page 3: General Safety
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety • The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks... -
Page 4: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety Electrical safety instructions should be followed while electrical connection is made during the installation. The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility. -
Page 5: Product Safety
Important instructions for safety and environment 1.1.2 Product safety Points to be taken into consideration for fire hazard: Below specified laundry or items must not be dried in the dryer considering fire hazard. • Unwashed laundry items • Items soiled with oil, acetone, alcohol, fuel oil, kerosene, stain removers, turpentine, paraffin or paraffin removers must be washed in hot water with plenty of detergent before being dried in the dryer. -
Page 6: Mounting Over A Washing Machine
Important instructions for safety and environment Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying. Use softeners and similar products in accordance with the instructions of their manufacturers. -
Page 7: Intended Use
Important instructions for safety and environment Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine. Installation Table for Washing Machine and Dryer Washing Machine Depth Dryer Depth 62 cm 60 cm 54 cm 50 cm... -
Page 8: Compliance With Rohs Directive
Take them to the packaging material collection points designated by the local authorities. Please visit the following website to get more information on the product. http://www.smeg.com Dryer / User Manual 8 / EN... -
Page 9: Technical Specifications
Important instructions for safety and environment 1.8 Technical Specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,7 cm Depth 65,4 cm Capacity (max.) 9 kg** Net weight (± 4 kg) 51 kg Voltage Rated power input See type label*** Model code * Min. -
Page 10: Your Dryer
Your Dryer 2.1 Package Contents 1. Water drain hose * 2. Filter drawer spare sponge* 3. User Manual 4. Drying basket* 5. Drying basket user manual* *It can be supplied with your machine depending on its model. Dryer / User Manual 10 / EN... -
Page 11: Appropriate Installation Location
Installation 3.2 Removing the transportation Before the calling the nearest Authorized Service for the safety assembly installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s Remove the transportation safety manual. (See 3.3 Connecting to the drain and 3.5 assembly before using the dryer for the Electrical connection) If they are not suitable, contact first time. -
Page 12: Electrical Connection
Installation We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from the front. 3.7 Warnings about sounds It is normal to hear a metallic noise from the compressor sometimes during operation. -
Page 13: Laundry Not Suitable For Drying In The Dryer
4. Preparation 4.1 Laundry suitable for drying in the dryer Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. LAUNDRY DRYING SYMBOLS Drying Suitable for... -
Page 14: Correct Load Capacity
Preparation Door Inner Surface) Following weights are given as examples. • Clean the filter periodically when there is visible Approximate weights Laundry air collection on it or when the symbol lights up, if (g)* there is a filter drawer cleaning warning symbol « Cotton quit covers (double) 1500 »... -
Page 15: Operating The Product
Operating the product 5.1 Control panel 1. Programme Selection knob 2. Dryness Level Adjustment button 3. Audio Warning Level button 4. Display 5. On /Off/Cancel button 6. Start/Pause button 7. End Time button 8. Favourite button 9. Timer Programmes Selection button 10. - Page 16 Operating the product Anti Child-proof Creasing lock 5.3 Preparing the machine For further programme details, see Plug in your machine. "Programme selection and consumption Place the laundry in the machine. table".. Press the On/Off/Cancel button for 1 second (long). 5.5 Main programmes When your machine is operated for the first time, it starts with the declaration programme (wardrobe Depending on the fabric type, the following main...
- Page 17 Operating the product • • Delicates Use this programme to dry non-pigmenting synthetic You can dry your highly delicate laundry (silk blouses, and cotton laundry items together. fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower •...
- Page 18 Operating the product 5.7 Programme selection and consumption table Approximate Spin speed in amount of Drying time Programs Capacity (kg) washing machine remaining (minutes) (rpm) humidity Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Night (silent)
- Page 19 Operating the product 5.8 Auxiliary functions Dryness level adjustment selection Dryness level adjustment button is used to adjust Audio Warning the required dryness level. Programme duration can The machine will give an audio warning when the change depending on the selection. programme comes to an end.
- Page 20 Operating the product Anti-creasing Anti-creasing symbol will illuminate at the Anti-creasing programme duration may be end of the programme if Anti-creasing changed with the Anti-creasing selection button. You function is activated. can use Anti-creasing function to prevent laundry from Favourite selection button creasing if you will not take the laundry out after the A programme with the set auxiliary function is saved program has come to an end.
-
Page 21: Warning Symbols
Operating the product Draining the water tank If loading door is opened and closed When the programme is completed, a warning symbol during the End Time duration, the will appear continously to remind that the water tank programme will switch to pause mode. needs to be drained. -
Page 22: Progress Of Programme
Operating the product 5.10 Starting the programme To deactivate the childproof lock: • Press and hold Child Lock button for 3 seconds. Press the Start/Pause button to start the program. • Child Lock is deactivated when the dryer is Start symbol will light up to indicate that the switched off and on with On/Off/Cancel button. -
Page 23: End Of Programme
Operating the product 5.14 Canceling the programme To cancel the programme after the dryer is started: • Press and hold Start / Pause button for 1 seconds to pause the programme and turn the programme selection knob. • Press and hold On / Off / Cancel Button for 3 seconds and the programme will be cancelled. -
Page 24: Maintenance And Cleaning
Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 6.1 Cleaning Lint Filter / Loading Door Inner Surface Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter. -
Page 25: Draining The Water Tank
Maintenance and cleaning • Drain the water in the tank. Do not use metal tools when cleaning metal surfaces of the sensors. Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion! •... - Page 26 Maintenance and cleaning • Pull out the filter drawer. Please place the sponge carefully inside the frame of the filter cassette shown by arrows in order to avoid squeezing when filter drawer closed”.: • Open the filter drawer by pressing the red button. •...
-
Page 27: Cleaning The Evaporator
Maintenance and cleaning Drying without the filter drawer sponge in place will damage the machine! A dirty lint filter and filter drawer will cause longer drying periods and higher energy consumption. 6.5 Cleaning the evaporator Clean the lint accumulated on the fins of the evaporator located behind the filter drawer with a vacuum cleaner. -
Page 28: Troubleshooting
Troubleshooting Drying process takes too much time. • Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. • Filter drawer may be blocked>>>clean the foam inside the filter drawer. • Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids. - Page 29 Troubleshooting Lint Filter Cleaning symbol is on. • Lint filter is not cleaned. >>> Clean the lint filter. Lint Filter Cleaning symbol is flashing. • Filter housing is clogged with lints. >>> Clean the lint filter housing. • A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.
- Page 30 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 Supplier name or trademark Smeg Model name DGA39EX-DHT39PLIT Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser A+++ Energy efficiency class Annual Energy Consumption (kWh) Automatic Type of Control Non-automatic...
