Summary of Contents for peerless-AV Pico Broadcaster HDS-PB100AV

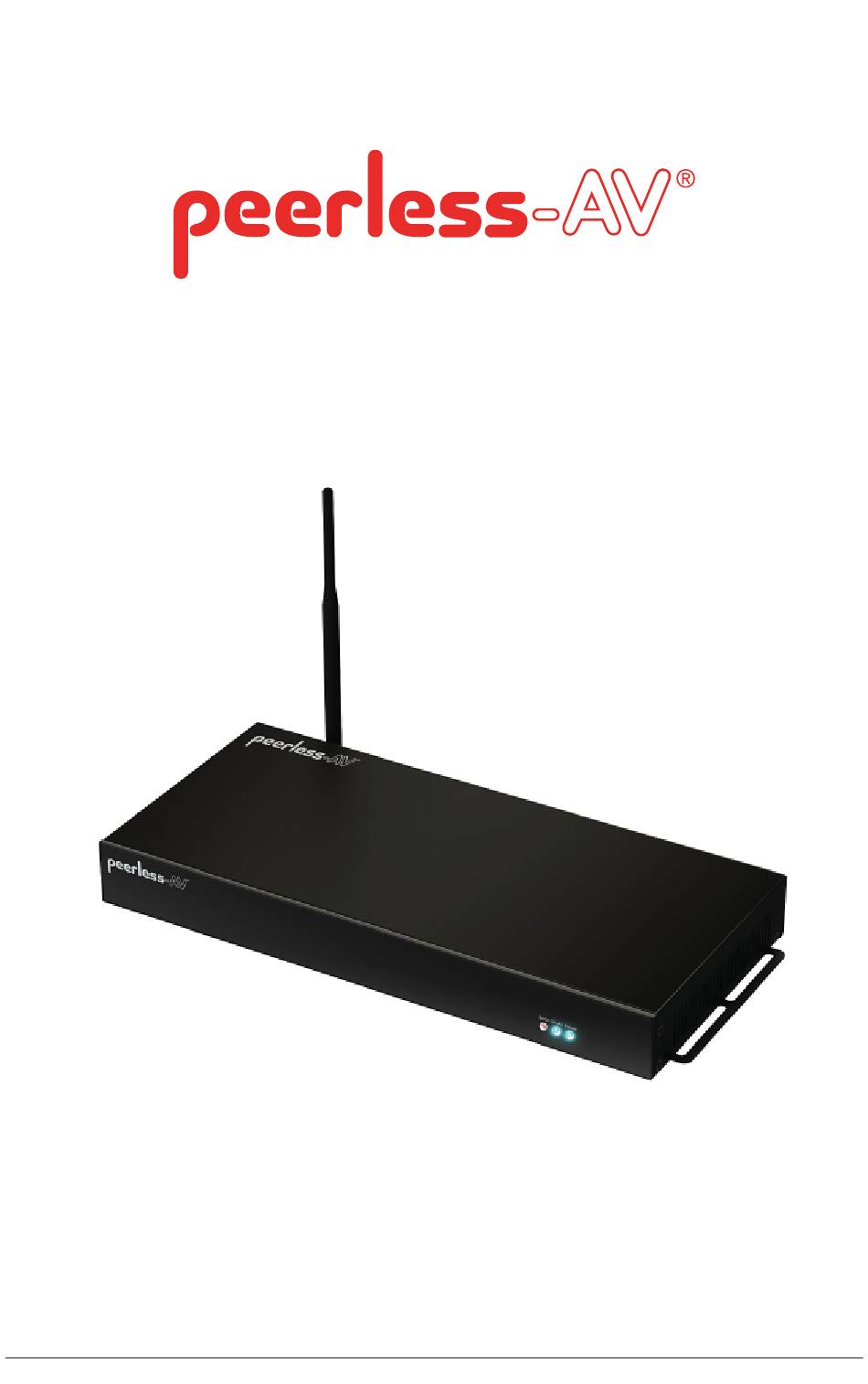

- Page 1 User Manual and Installation Guide Pico Broadcaster US Patent No.: 8,063,996. Other patents pending. Models: HDS-PB100AV ISSUED: 11-07-13 SHEET #: 180-9049-1...
- Page 2 ISSUED: 04-04-13 SHEET #: 180-9049-1 2 of 20...
-
Page 3: Table Of Contents
Contents Important Safety Instructions ......................4 Important Information ........................5 Unit Care Recommendations ......................5 Introduction ............................6 What are White Space Channels? ....................6 Broadcasting on White Space Channels ..................6 Items Needed for Installation ......................6 Package Contents ......................... 6 Installation ............................ -
Page 4: Important Safety Instructions
Important Safety Instructions Warnings/Safety 1. Read these instructions 2. Keep these instructions 3. Heed all warnings 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. 8. -
Page 5: Important Information
Important Safety Instructions 17. To avoid electric shock, never stick anything in the slots on the case or remove the cover. 18. This product is intended for indoor use only. Important Information • Never use this product in an aircraft or a medical facility as it can cause interference or an undesirable effect. -
Page 6: Introduction
Standard 120v AC outlet required for DC12v 3A power supply Package Contents Ensure that the following items are present in the package. If any items are missing or damaged, please call Peerless-AV Customer Care at 1-800-865-2112. (available 7:00am - 7:00pm (CST) Monday - Friday). User Manual and Installation Guide Pico Broadcaster US Patent No.: 8,063,996. -
Page 7: Installation
Installation Product Overview Front 1. SD Card • SD card slot. (Factory use only) 2. Error • The Error indicator light will be illuminated red if there is a problem with the Broadcaster. 3. On Air • The On Air indicator light will be illuminated blue signaling that the Broadcaster is enabled. 4. - Page 8 Back 1. DC 12V • DC power input port. 2. HDMI Input • HDMI input for connecting media source. 3. Component Input • Component input for connecting media source. 4. USB • USB port. (Factory use only) 5. RS232 • RS232 port.
-
Page 9: Setting Up The Hds-Pb100Av Pico Broadcaster
Step 1 Locate the Power Adapter and appropriate insert (US shown). Place insert into the Power Adapter as shown and push to lock into place. Step 2 Connect the Antenna to the RF/Ant terminal on the back of the Broadcaster. ISSUED: 04-04-13 SHEET #: 180-9049-1 9 of 20... - Page 10 Step 3 The broadcaster needs to be as centrally located as possible to allow its’ omni-directional antenna uniform coverage over the entire area that the DTV’s will be located within. Install the Broadcaster as high in the air as possible to ensure that an unimpeded signal is transmitted down toward the DTV’s. Proper positioning will allow the full radial distance potential of 350’...
- Page 11 Step 5 Allow the broadcaster to be connected to network for approx 30 seconds before accessing its IP address. From a computer connected to the network, enter 192.168.1.194 in the address bar of the web browser. This will bring you to the White Space Registration page. Step 5a Fill in all fi...
- Page 12 Step 5c Click on Status tab to open the Device Status page. This page contains information about Radio Status and White Space Status. Radio Status Operating Channel - The channel that the broadcaster has been set to. • Transmitter status - Displays the status of the broadcaster. •...
- Page 13 Step 5e Click on the Network sub tab to open the Network Confi guration page. This page contains information about IP Settings and Streaming Settings. Fill in all fi elds in the IP Settings section to match the existing network settings or create custom settings if needed. Fill in the fi...
-
Page 14: Using The Hds-Pb100Av With A Digital/Analog Video Source
Using the HDS-PB100AV with a Digital/Analog Video Source 1. If utilizing the HDMI* input to deliver content to the Pico Broadcaster: • Plug the Video Source into the broadcaster with an HDMI cable • Turn the Video Source ON • Once you see the content appear on your display, navigate the source as you would to get the content streaming If the source incorporates Audio:... -
Page 15: Faqs
What type of media format does the HDS-PB100AV Pico Broadcaster accept? A. The HDS-PB100AV needs the format of the media to be MPEG-2 TS. The Peerless-AV Streaming Media software will determine if the given media fi le(s) need transcoding once the fi le is dropped into the window. - Page 16 Can I transmit a signal from my computer of a Presentation/File (i.e. PPTX, Spread sheets, etc…)? A. Currently the Peerless-AV streaming software allows preset AV fi les to be encoded properly and streamed to the HDS-PB100AV. However, there is open source software that has the ability to stream from a desktop, so no matter what is displayed on the desktop of a PC, the Broadcaster can transmit the signal.
-
Page 17: Appendix
Appendix Product Specifi cations HDS-PB100 Audio/Video via LAN port (MPEG2 Transport) Input ATSC modulated broadcast signal Output HD Broadcast format TV signal Stereo / AC3 audio Output power variable up to 40mW White space database compliant channel selection Control 350' maximum radius Broadcast Range 500-700 MHz Broadcast Frequency... -
Page 18: Limited Warranty
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV®, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV®’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. -
Page 19: Contact Information
Contact Information Customer Care Need help with set up? Call Peerless-AV Customer Care 1-800-865-2112 (available 7:00am- 7:00pm CST, Monday - Friday), or email us at info@peerless-av.com. Peerless -AV 2300 White Oak Circle Aurora, IL 60502 USA peerair.peerless-av.com ISSUED: 04-04-13 SHEET #: 180-9049-1... - Page 20 Peerless -AV 2300 White Oak Circle Aurora, IL 60502 USA peerair.peerless-av.com ©2013 Peerless-AV. All rights reserved. Peerless-AV is a trademark of Peerless Industries, Inc. Other parties’ marks are the property of their respective owners.
