INSTRUCTION
MANUAL
DM-5104
Message Recorder / Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-5104 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amperes DM-5104

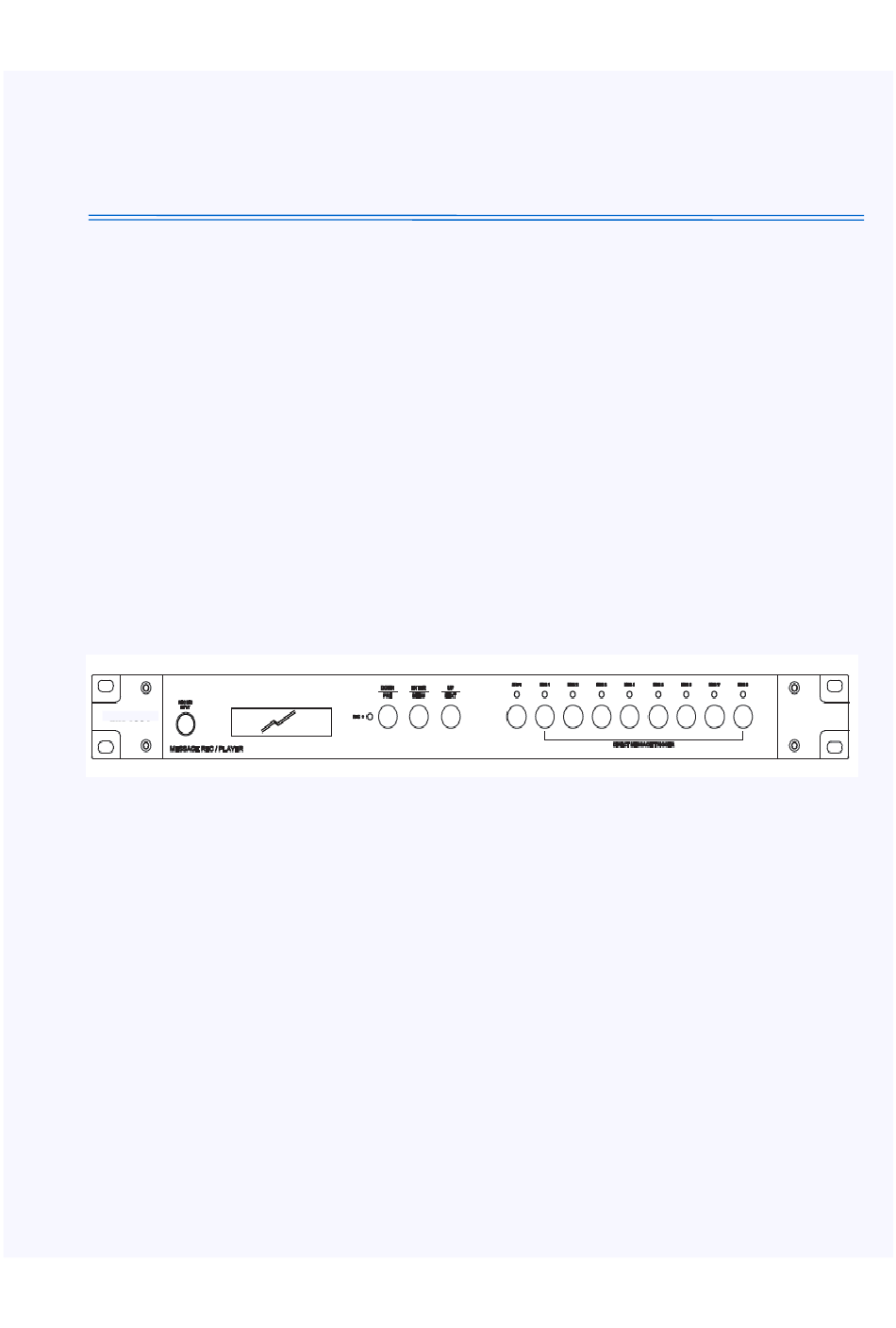

  • Page 1 INSTRUCTION MANUAL DM-5104 Message Recorder / Player...

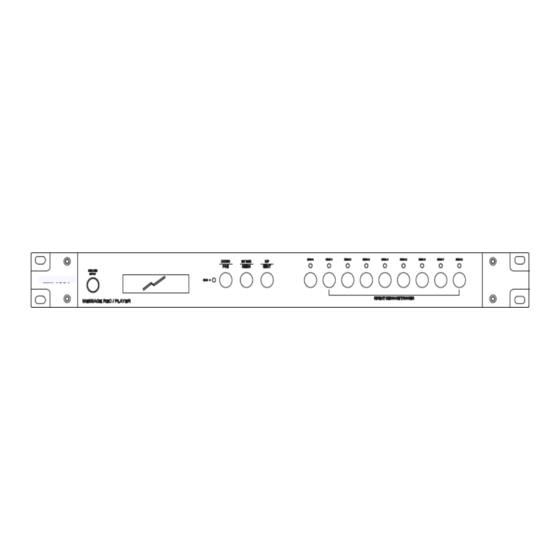

  • Page 2: Parts Identification

    8 front short key for direct message activation ; MES 1 to MES 16 with LED indicators. Shift button is available for trigger- ing message 9 to 16. 6. POWER CONNECTORS 24V DC input for power, use only regulated power supply or Amperes PS5424 power supply unit. 7. POWER SWITCH Power switch for the unit.
  • Page 3 Parts Identifications ( continued ) 9. MICRO SD CARD SLOT SD card slot, up to 32 GB capacity is supported by the unit ( Standard supplied card is 8GB) 10. LINE INPUTS RCA jack for recording from external source with line output, such as CD, MP3 players, etc 11.

  • Page 4: Schematic Diagram

    Schematic Diagram External Contacts for Message Triggering ( Up to 16 contacts ) NOTE: Only Voltage free contacts DM5104 MESSAGE allowed for remote triggering RECORDER / PLAYER Alternative Bypass : Audio and Trigger Balanced Audio direct to EP1200A ( line in ) SYP1000 O F F S E L E C T...

  • Page 5: Connecting The Unit

    Connecting the Unit DM5104 can be used as : - Source playback unit, for delivering pre-recorded messages or songs, and if repetitive playback at certain times is required, it can be used together with a timer. - Emergency broadcast message playback unit, which is linked to external triggering devices or systems, such as alarm, BAS or emergency push button.
  • Page 6 Connecting the Unit Option B : Using DM5104 for Emergency Announcement DM5104 can be used as essential message source to PA system, linked to external activation device such as BAS system, emergency push button, etc. Switch or sensor for See Note Below message activation DM5104 DC 24V...
  • Page 7 Connecting the Unit Option C : Using BAS to control DM5104 In cases where Building Control System or BAS to be the domain controller including emergency voice annoucement, it can be used to activate particular pre-recorded messages at DM5104. The BAS would provide a close dry contact, which would activate mixer audio bypass at EP1200A, as well as triggering a message at DM5104.

  • Page 8: Setup Menu

    Setup Menu Setting Up Via Front Panel Menu : The Menu Flowchart : Shift + Enter / Menu Next ANNOUNCEMENT 1. AUDIO 2. MEDIA SYSTEM Setting output volume, bass Message playback setting Opening display and treble Next Next Next Next 4.
  • Page 9 Setup Menu 3. Configuration To configure a button, assigning media to respective buttons, inserting delay between messages & repeats of messages. Next Next 3. CONFIGURATION 3.2. EXIT 3.1. SELECT BUTTON For assign Message 1-8 press Exit to Main Menu button Message 1-8, for assign Message 9 - 16 press shift + button Message 9 - 16.
  • Page 10 Setup Via PC Follow the following steps in setup the button via PC : Insert SD Card to PC Open the SD Card and find ‘DM5104 Configuration Folder’ Open application ‘DM5104 SDCard Config’ Select SD Card Drive before starting. After select press ‘LOAD’ (2) Select file to store (1) Select...

  • Page 11: Recording A Voice File

    Recording a Voice File To record live voice file and to play recorded media in the SD Card. Press “shift + Enter/ Menu” and go to MENU number “ 2. MEDIA ”. Next Next 2. MEDIA 2.1. RECORD 2.2. PLAY Select the media want to play.
  • Page 12 Saving Files Directly Into SD Card DM5104 allows various format of files for playback, such as MP3, WMA and etc. Saving a high quality of audio format, such as MP3 would produce better sound output,especially for music files. As currently DM5104 only peform PCM coding for direct recording, we recommend that music file to be directly stored into the SD card, in order to obtain a reasonable quality of audio output.

  • Page 13: Message Playback

    Message Playback Stored voice file can be played by using the front direct switches ( Message 1 to 16 ) or via the remote triggering ports. Front switch activation For message 9 to 16, press shift + the required button to trigger the message. e.g: No 10, Press shift + message 2 SHIFT MES 2...
  • Page 14 Bootloading Via SD Card A prominent feature in this upgraded version is the bootloading (Firmware upgrade) method. Direct PC connection is not required and the whole process shall be done automatically. once a new firmware is detected in the SD Card upon power up. Follow the following steps in firmware update: Copy new firmware file into SD Card ( New firmware copy can be obtained from website)

  • Page 15: Summary Of Features

    Summary of Features 32 bit ARM chip for faster and multitasking processing of data Up to 16GB of memory space using Micro SD card Message playback via front direct access button and rear remote triggering High quality MP3 playback of up to 320 kbps 64 kbps IMA ADPCM voice recording for better clarity Flexible message configuration in every memory bank eg.
