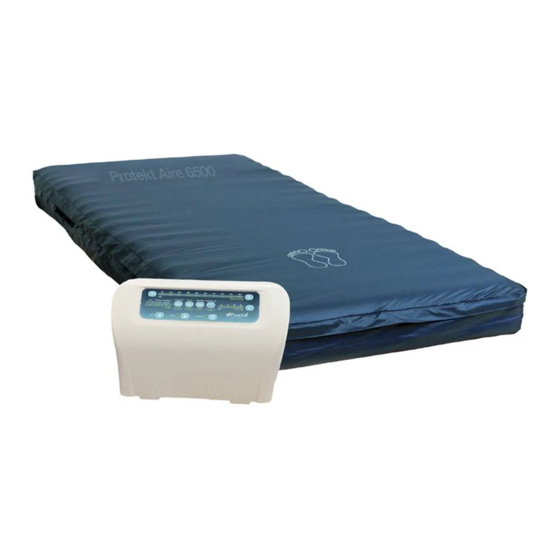

- Page 1 Operation Manual ® Protekt Aire 6500 270 Washington Street, Mount Vernon, New York 10553 Phone# 1-855-BE-PROACTIVE (855-237-7622) Fax# 845-205-6005 www.proactivemedical.com...
-
Page 2: Important Safeguards
READ ALL INSTRUCTIONS BEFORE USING IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: DANGER To reduce the risk of electrocution: Always unplug this product immediately after use. Do not use while bathing. -
Page 3: Statements & Symbols
STATEMENTS & SYMBOLS Note, caution, warning & danger statements NOTE Indicates some tips or some information users should be aware of. CAUTION Indicates correct operating or maintenance procedure in order to prevent damage to or destruction of the equipment or other property. WARNING/DANGER Calls attention to a potential danger that requires correct procedures or practices in order to prevent personal injury. -
Page 4: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS………………………………………………………2 STATEMENTS & SYMBOLS……………………………………………………….3 TABLE OF CONTENTS……………………………………………………………..3 ………………………………………………………………………..…5 General …………………………………………………………………...…5 Intended Use …………………………………………………………………..5 Contraindication PACKAGE CONTENT……………………………………………………………….6 PRODUCT FUNCTIONS…………………………………………………………….7 t………………………………………………………………………..7 Pump Uni …… ……………………………………………………………..7 Mattress System INSTALLATION………………………………………………………………………9 GROUNDING INSTRUCTIONS……………………………………………………10 OPERATION…………………………………………………………………………11 ………………………………………………...………………..……..11 General …………………………………………………………...………..13 CPR function ………………………………………………………...…………13 Pressure set up ……………………………………………………………...……..13 Low pressure CLEANING………………………………………………………………………….14... -
Page 5: General
INTRODUCTION This manual should be used for the initial set of the system and for reference purposes. General ® Protekt Aire 6500 System are high quality and affordable air mattress system suitable for medium and high-risk pressure ulcer treatment. They have been specifically designed for prevention of bedsores and offer an affordable solution to 24-hour pressure area care. -
Page 6: Package Content
PACKAGE CONTENT Check inside the package. If any of the following items should be missing or damaged, please contact your local dealer or service center for replacement immediately. Pump Unit ® Protekt Aire 6500 System is identical to which you purchased. Mattress The mattress comes with a base sheet. -
Page 7: Product Functions
PRODUCT FUNCTIONS Pump Unit ® The functions of the pump unit for Protekt Aire 6500 System are described below. Power Switch: The switch is at the right side of the unit. Turn ON/OFF the power, the unit will start/stop operation. Pressure-selector Knob: Turn the knob from the soft to firm position to select a pressure value. -
Page 8: Mattress System
Mattress System ® Protekt Aire 6500 System come with cell type mattresses of different materials, provided optionally with the pump unit. ® The mattress option for Protekt Aire 6500 System is 10’’Nylon/PU only. ® Protekt Aire 6500 1. Power Switch 2. -
Page 9: Installation
INSTALLATION Step 1 Place the mattress flatly on the bed frame. The inflation tube should be towards the foot end. See figure below. Step 2 Cover with a cotton sheet to avoid direct skin contact and reduce friction. Step 3 Hang the pump unit on the foot end of the bed frame and make sure it is stable. -
Page 10: Grounding Instructions
GROUNDING INSTRUCTIONS This product is for use on a nominal 120 V circuit and should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord that contains a grounding wire with a grounding plug. -
Page 11: Operation
OPERATION NOTE: Always read the operating instructions before use. General This product is designed to provide maximum comfort to home-care and long-term-care facility patients. Make sure that you operate this product in a proper way to optimize its value. Here we provide some general information you should be aware of. - Page 12 Please follow instructions below for detailed operating procedure of each type. ® Protekt Aire 6500 System Step 1 Turn on the power. A beep sound will begin the operation. Step 2 These two types will enter static mode initially when the power turned on. First it will inflate the mattress to 10-15mmHg and then enter alternating mode.
-
Page 13: Cpr Function
the alarm. NOTE: For suitable pressure, please refer to page 11 for the hand check procedure. CPR function When there is an emergency to perform CPR on the patient, pull the CPR valves immediately to release the air quickly from the mattress. The CPR valves are located at the front right-hand side of the mattress. -
Page 14: Cleaning
CLEANING In this section, we describe the procedures to clean and decontaminate the unit. It is important to follow these procedures before using the system on patients. PUMP Unit DO NOT immerse or soak the pump unit. Check for external damage and move the pump to the cleaning area. Place the pump on a work surface and spray or wipe the outside of the case with quaternary ammonium solution. -
Page 15: Handling And Storage
least 10 minutes.) If there is a base after you remove all the air cells, the base has to be sprayed down with the disinfectant, inside and outside. Let it sit for the required incubation time and wipe down with a cloth. Repeat the process with the tubing set: spray, incubate, and then wipe clean. -
Page 16: Troubleshooting
TROUBLESHOOTING Problems Solutions The pump doesn’t work 1. Check if the plug is inserted firmly into the outlet. 2. Turn on the power switch again. If the power LED is ON and the pump still doesn’t work, contact your local dealer immediately. If the power LED is OFF, there may be a faulty outlet. - Page 17 Pump Unit Series Function Specifications ® Protekt Aire 6500 ON/OFF switch Dimension: 13.4x4.9x9.7 inch Pressure-selector touch panel Power:120V AC/60Hz Cycle Time-selector touch panel Pressure:20~65 mmHg Alternate/Static/Seat inflate mode Cycle time:10, 15, 20, 25 min, Alarm: Low pressure/Power failure / selectable Alternate failure Max Firm Mattresses...
