- Page 1 User guide Require assistance? support.joolca.com...
-
Page 2: Table Of Contents
Make yourself at home Contents With Joolca, you can feel at home Quickstarts anywhere. Go further, stay longer – and have more fun together! Hottap quickstart Ensuite quickstart Faucet quickstart Off-grid plumbing quickstart Nomad quickstart Setup and use Hottap set up... -
Page 3: Hottap Quickstart

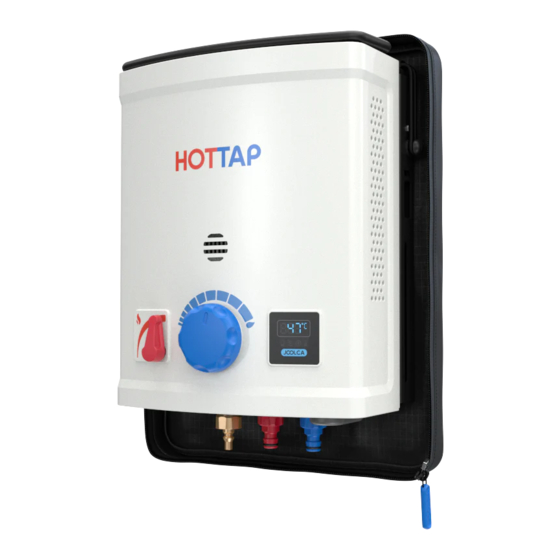

Hottap quick start Instructions for use 1. Turn the water flow on at the shower handle switch, and the burners will ignite automatically. 2. Set water temperature by adjusting the red lever and the Flame blue Water Flow dial. For hottest water, set the red Flame lever to high (upright) and the blue... -
Page 4: Ensuite Quickstart
Ensuite quick start Magnetic shower clip fixed hanging magnetic Handheld and mounted setup Best set up for hanging using Joolca Ensuite Tent... -
Page 5: Faucet Quickstart
Faucet quick start Magnetic faucet clip Faucet setup fixed fixed hanging hanging magnetic magnetic Full Hottap setup... -
Page 6: Off-Grid Plumbing Quickstart
Off-grid plumbing quick start Filter assembly secondary filter sinker Off-grid plumbing setup slim enough to fit into most jerry cans... -
Page 7: Nomad Quickstart
Nomad quick start Drainage Sink mount... - Page 8 Setting up Hottap Before setting up, please note that Hottap requires a water pressure of at least 70kPa /10 PSI to work. This part of the guide assumes that you have access to mains water. For use with the Off-Grid Plumbing kit, please refer to pages 25-27. To set up your Hottap for use, please cover the following steps: 1.
- Page 9 Setting up Hottap 3. When mounting your Hottap, 3.b. Hang the Hottap on a 4. Attach the red shower hose to the please ensure that there suitable vertical surface red quick-connect fitting. is sufficient clearance from Connect the blue hose to your people and combustible water source and to the blue materials: at least...
- Page 10 Hottap operation 1. Ensure that the shower handle 2. Turn the LPG / propane on 3. Open the valve at your water switch is in the “off” position. by twisting the cylinder valve source. Please note that, since knob in an anti-clockwise the shower handle switch is in the direction one full turn.
- Page 11 Hottap operation 4. You can now control the entire system at the shower handle 5. Adjust the red flame lever and the blue water flow dial to find switch. Flick it on: the water starts to flow and the Hottap burner your desired temperature and flow rate.
- Page 12 2x D-cell batteries. For additional safety considerations, 5. Gently wipe the panels of the appliance with a wet cloth. please refer to Hottap v2 Clean all water inlet filters by rinsing in a sink or with a hose to remove debris.
-
Page 13: Off Grid Plumbing Setup
Off Grid Plumbing setup 12V pump 2. 5m / 16ft lighter port lead 3. 2m / 6ft intake hose 4. 2m / 6ft outlet hose 5. Two-stage filter 6. Intake collar Warning: The pump should only be operated from an approved 12V DC Power source. - Page 14 Off Grid Plumbing : Setting up & Use 1. Remove the red plugs from 3. Set up your filter for intended 4. Observing the flow direction 5. Plug the lighter port cable the inlet and outlet of the pump. use - i.e. with or without the of the pump, attach the pump into the pump and connect to intake collar - and attach to...
-
Page 15: Troubleshooting
HOTTAP shows quality of flame in viewfinder repairs. However, should you require personal advice • Look through slits above the control dials to see the burners or service, please don’t hesitate to contact Joolca • If you see no flame, HOTTAP has not ignited Customer Support. - Page 16 To identify a range of potential issues, simply press and hold the • Outlet water might have reached +50ºC / 122ºF, triggering the Joolca logo button below the LED display. automatic safety cutout. Increase the water flow and lower the flame setting.
-
Page 17: Off-Grid Plumbing
Troubleshooting : Need support? Off Grid Plumbing support.joolca.com THE PUMP ISN’T WORKING AT ALL • Check that the pump is properly connected to a 12V power source or charged 12V battery. THE PUMP MAKES A NOISE BUT DOES NOT PUMP WATER •...
