SNS HOME ZiGZAG BOOKSHELF 15-12 Quick Start Manual

SNS
ZİGZAG
BOOKSHELF
HOME
Kavela
4x35 mm chipboard screw
16 pieces 16 pieces
Note:
It is recommended to do the installation with the help of a drill.

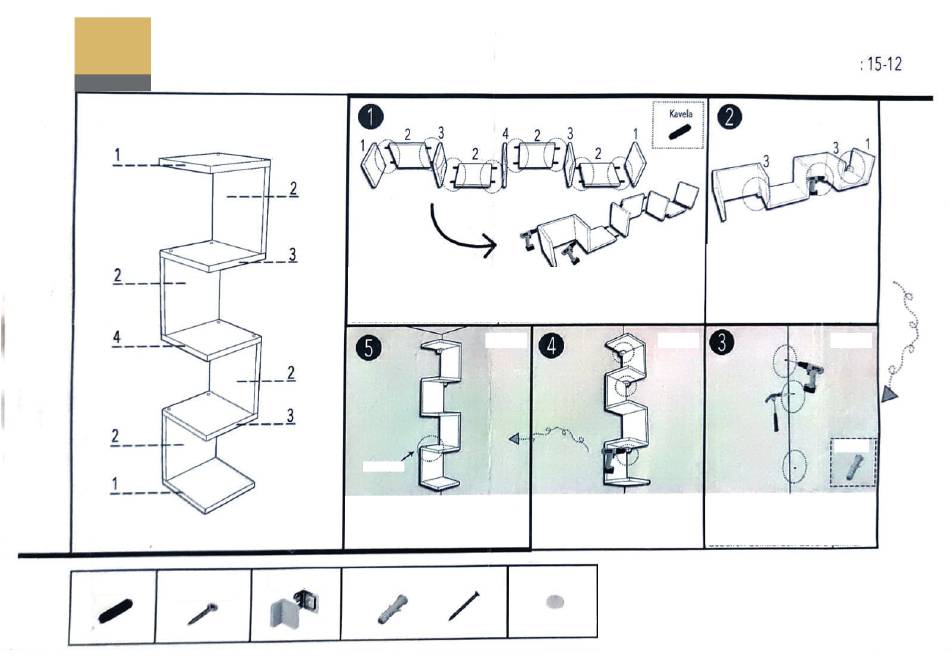

1-) Arrange the chipboards as shown. Chipboards will be installed in order from left to right. Place the dowels in
the intermediate holes of the chipboard number 2 and connect the chipboards with the next chipboard in order.
After each assembly, mount the chipboards to each other with 4x35 mm chipboard screws through the holes on
the sides of the pipe.
screw plug
5-) Complete the installation by sticking screw plugs
(16 pieces) on the visible screws. Have a nice day.
8 mm rocket dowel and wall screw
wall bracket
3 pieces
3 pieces 3 pieces
wall wall
4-) Mount the bookcase from the wall brackets to the
dowels with wall screws.
screw plug
16 pieces
PRODUCT CODE
2-)Fix the wall brackets to the two chipboards
numbered 3 and the chipboard numbered 1 on the
far right with 2 pieces of 4x35 mm chipboard screws
as in the figure. (Single screwing parts will remain
empty, we will mount them to the wall from there.)
wall
dowel
3-) Hold the bookcase to the wall and mark the
3 places where the wall brackets will be mounted.
Then drill holes and drive the dowels to the wall
through the holes.
